Rohs PA66 M12 Panel Mount Connector Uls M12 Right Angle Connector

100
MOQ
5.5
Price
Rohs PA66 M12 Panel Mount Connector Uls M12 Right Angle Connector
Features Gallery Product Description Request A Quote
Features
Specifications
Place Of Origin: China
Type: Waterproof Connector, Waterproof Connector
Application: Automation
Series: M12
Coding: A,B,C,D,X
Material Of Contact: CuZn(Brass)
Material Of Contact Body: PA
Connector Locking: Screw
Wire Gouge: AWG26-AWG24
Rated Current: 4A
High Light:

Rohs M12 Panel Mount Connector

,

PA66 M12 Panel Mount Connector

,

Uls M12 Right Angle Connector

Basic Infomation
Brand Name: Rigoal
Certification: CE , Rohs , IP68
Model Number: panel mount
Payment & Shipping Terms
Packaging Details: 46x30x30
Delivery Time: 30work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000
Product Description

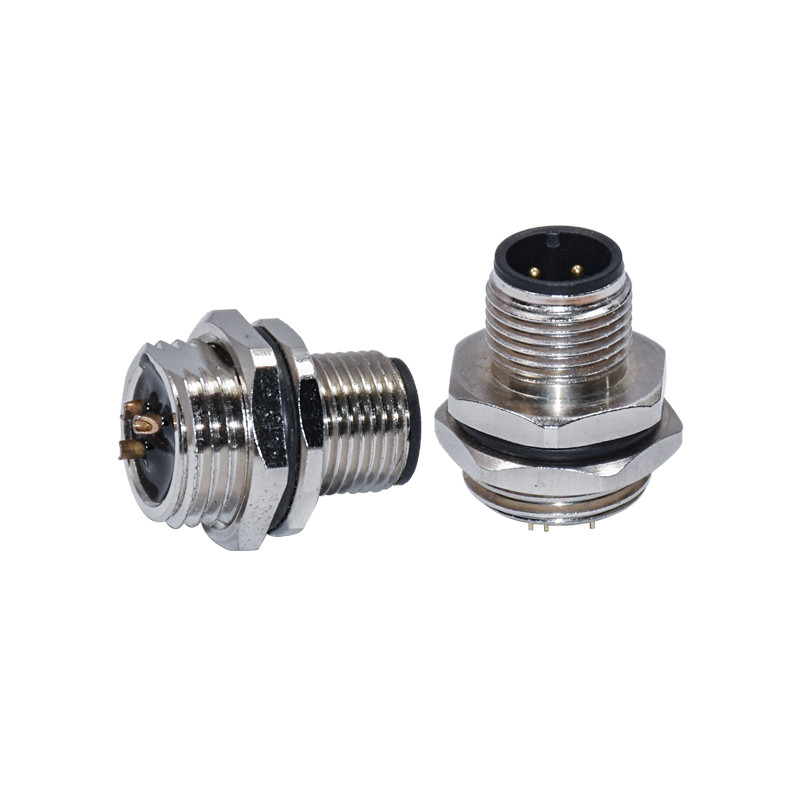

M12 fromnt panel mount connector

Characteristics of M12 Series


M12 Circular Connector is Designed for Washdown and Corrosive Environments, Primarily Used in Factory Automation Applications for Actuators, Sensors, Industrial Ethernet, and Fieldbus.

M12 Series with Ip67/68 Rating, Provides with 2, 3, 4, 5, 6, 8, 12, 17 Contacts, Different Pin Match Specific Applications. E.g, Sensor and Power Applications Require 3 or 4 Pins; Profinet and Ethernet Require 4 or 8 Pin Counts; Fieldbus, Can Bus and Devicenet Typically Use 4 or 5 Pin Counts; and Signal Requirements Usually Employ 12 Pins.

We Supply Full Series of M12 with Field Wireable Connector, Molded Cable Connector, Panel Connector, Overmoled Cables, Wire Harness and Accessories. Pvc (general) or Pur (oil Resistant) Cables Available with Customized Length According to User Requirements.

image003(001)

Product introduction

Products Feature

M12*1 Thread Locking Mechanism, Anti-vibration Locking Design;
Easy Quick Connect and Disconnect Coupling;
Pin Configurations: 2, 3, 4, 5, 6, 8,12 and 17 Positions and Y Connectors;
A, B, C, D, K, L, X, S, T Coding Available;
X-coded Support Higher Bandwidth Needs of Up to 10 Gb/s;
Shield and Un-shield Version Available;
Meets Ip67/ip68 Waterproof Requirements;
Temperature Range: -25°c ~ + 85°c.

image005(001) image007(001)

Certifications




Package&Shipping:

Packaging

1. Generay Package :Each pcs put in one samll waterproof PE bag,then put in a carton

Details: Add the label, about 200 hundred pieces connector put in one carton, Carton size:46*30*30cm

2. OEM/ODM package is avaiable

3. According to customer choice.

Shipping

We can according to customer request choose different ship way,which more converence ,which we will choose!
