AWG24 M12 Straight Metal Waterproof Connector CuZn PA Rectangular
100
MOQ
5.5
Price
AWG24 M12 Straight Metal Waterproof Connector CuZn PA Rectangular
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China ShenZhen
Brand Name: Rigoal
Certification: CE , ROSH , IP68
Model Number: Straight type plastic
High Light:

M12 Straight Metal Waterproof Connector

,

AWG24 Metal Waterproof Connector

,

CuZn PA M12 Male Connector

Payment & Shipping Terms
Packaging Details: 46x30x30
Delivery Time: 30work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000
Specifications
Place Of Origin: China
Type: Waterproof Connector, Waterproof Connector
Application: Automation
Series: M12
Coding: A,B,C,D,X
Material Of Contact: CuZn(Brass)
Material Of Contact Body: PA
Connector Locking: Screw
Wire Gouge: AWG26-AWG24
Rated Current: 4A
Product Description

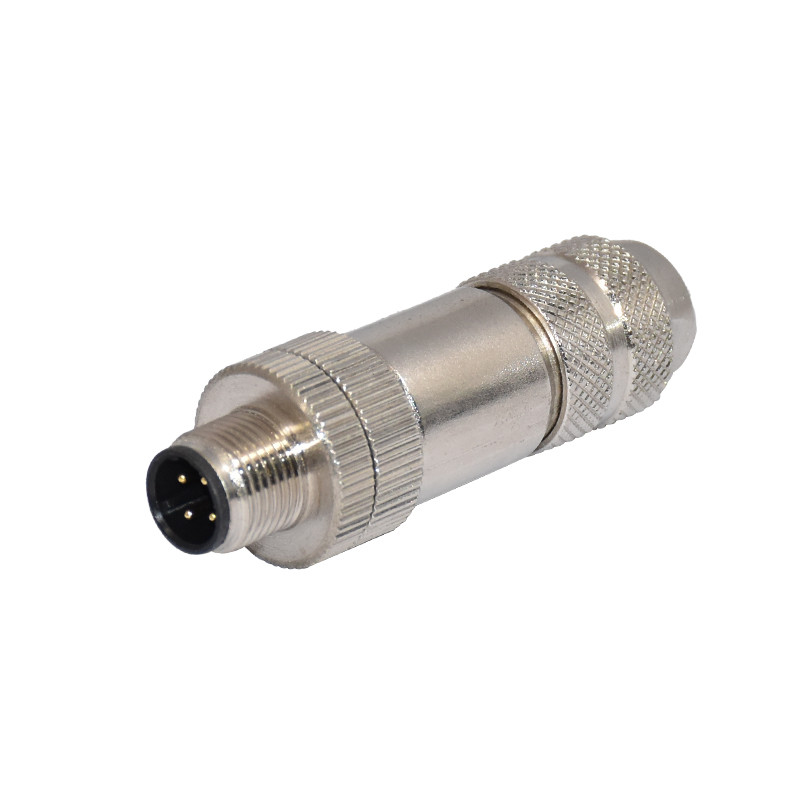

M12 straight metal waterproof connector

We have produce DIN 43650 rectangular connectors type A,M8, M12, M16 circular connectors with or without cables, to be used on solenoid valves, pressure switches, sensor switches, proximity sensors in the hydraulic and automation industry. Our company produces and can offer the following complete range of products: M8, M12, M16,circular connectors, both with cabled and without cable- and M8, M12 connectors -Junction boxes for M8 and M12 circular connectors . IP67, IP68, CE, ROHS certificated. We have automatic production equipment and modern management to provide customers with high quality products. We can OEM and customize connector and harness products for customers



M12 straight metal waterproof connector Products are used in valves, sensor , switch and so on. Products have CE, ROHS and other certification. we have a monthly production capacity of 1 million pcs and we accept customer samples or drawing custom.








M12  4-pos male A-coded.jpg















Description of the M12 Straight Metal Waterconnector

waterproof M12 connector,fix screw with self-locking threaded joint,waterproof IP67 M12 cable connector.

Protected from dust and water during immersion,resistance to many oils and chemical.

Can be easily connected to proximity switches,photoelectric barries,flow moitoring devices and field bus components sensor devices and actuator devices.

Satisfy all the requirements of sensor devices and actuator devices in automation technology.



Technical data of cable waterproof connector:

Standard :IEC 61076-2-101

Coding : A,B,D,X

Ambient temperature:-20°C~+80°C

Insulation resistance ≥ 100M Ω

Contact resistance:≤5MΩ

Degree of peotection : IP67 in locked condition

Certified:CE & UL



Cable waterproof connector specification:

Insert : PA+GF

Contac: brass with gold plating

Screw/nut: Brass with nickel plated

Overmold:TPU



Cable specification:

Cable Jacket:PVC or PUR

Wire insulation:PVC

Cable length:Option



Standard of cable waterproof connector:

The cable connector we produced according to standard IEC61076-2-101,this International Standard describes cable connectors M12 typically used for industrial
process measurement and control. These connectors consist of fixed and free connectors
either rewireable or non-rewireable, with screw-locking.
