A/B/D Code M12 Solenoid Valve Connector PA66 Copper IP67 12P 17P

100
MOQ
negotiable
Price
A/B/D Code M12 Solenoid Valve Connector PA66 Copper IP67 12P 17P
Features Gallery Product Description Request A Quote
Features
Specifications
Temperature Range: 20℃~+80℃
Insert Material: PA66
Contact Material: Copper Contact Gold Plating Contact
Rated Current: 4A/2A/1.5A
Cable Diameter: ≤4mm~≤8.0mm
Contact Material: Copper(silverplated/gold)
Termination: Crimping/solder
Pins: 4p, 5P, 12p, 3P, 8P, 2P
High Light:

D Code M12 Solenoid Valve Connector

,

PA66 Copper Solenoid Valve Connector

,

17P M12 Solder Wire Connector

Basic Infomation
Place of Origin: Shen zhen,China
Brand Name: RIGOAL
Certification: CE,ROHS,ISO
Model Number: m12 panel mount connector
Payment & Shipping Terms
Packaging Details: 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.
Delivery Time: 7~14
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000
Product Description

IP67 M12 3pin 4pin 5pin 8pin 12pin 17pin Straight Sensor Rear Fix Lock A/B/D Code Panel Mount With Solder Wire Connector





Product Description
A/B/D Code M12 Solenoid Valve Connector PA66 Copper IP67 12P 17P 0
A/B/D Code M12 Solenoid Valve Connector PA66 Copper IP67 12P 17P 1
A/B/D Code M12 Solenoid Valve Connector PA66 Copper IP67 12P 17P 2

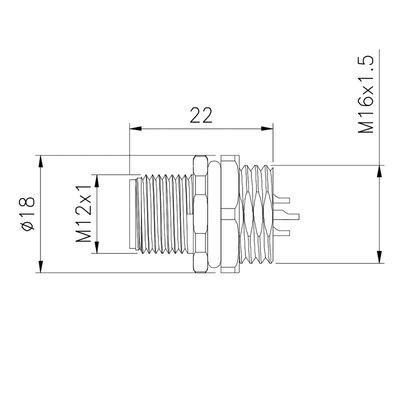

Overview :
M12 flange seat is an M12 connector socket, used for panel, cabinet front (back) and other fixed installation socket.The
plug shell is brass/cast zinc plated nickel, the pin body is PA, the contact surface is Au, the working temperature is -25℃~85℃,
the product needle number is 4, 5, 8 or core number is 4 holes, 5 holes, 8 holes, the protection grade has reached IP67.
Features :
M12 socket waterproof performance is good, efficient and fast connection, save the user wiring time again, widely used
in industrial machinery and equipment, transmission and transmission control system, all kinds of industrial sensors, testing
instruments and meters, electronic instruments, household appliances, electromechanical, kitchen and other equipment signal
transmission and current transmission.
A/B/D Code M12 Solenoid Valve Connector PA66 Copper IP67 12P 17P 3
A/B/D Code M12 Solenoid Valve Connector PA66 Copper IP67 12P 17P 4
M12 Circular connector according to IEC 61076-2-159
M12 circular connector with M12*1.0 screw locking
Equivalent to Binder, Phoenix, Lumburger automation
Waterproof rating is IP67/IP68, protected from dust and water during immersion, resistant to many oils and chemical



Generally Description:

Connector Series: M12
Standard: IEC 61076-2-104
Coding: A
Gender:Female
Connector Design: Cable plug
Connector Locking System: Fix screw
Waterproof Rating: IP67/IP68

Normal Temperature: -10℃~+80℃



Company Profile

A/B/D Code M12 Solenoid Valve Connector PA66 Copper IP67 12P 17P 5
A/B/D Code M12 Solenoid Valve Connector PA66 Copper IP67 12P 17P 6
A/B/D Code M12 Solenoid Valve Connector PA66 Copper IP67 12P 17P 7
Rigoal was founded in 2013, and devoted ourselves to be the high quality & efficience manufacturer. We specialized in producing waterproof cables & waterproof connectors such as M8, M12, M16, M23, D-SUB. Mainly applied in sensors, industrial equipments, transportation facilities, medical devices, LED displays, outdoor advertisements, communication devices,wind energy devices, vessel industrial and Surrounding the car electronics industry and so on , they are equivalent to Phoenix, Binder, Lumberg and Molex etc. Our products mainly exported to developed industrial countries such as America, Austria, Sweden, Belgium, Germany, Netherlands, British, Spain and Asian, Israel. Meanwhile, we have agents and customers all over the world and speaking highly of by our customers. Our philosophy and purpose is: Customer Foremost, Service First. Quality first. Warmly welcome you join in us, your support will be always our motivation. Let's go forward hand in hand to create a brilliant future. Rigoal----Your Best Connection!
