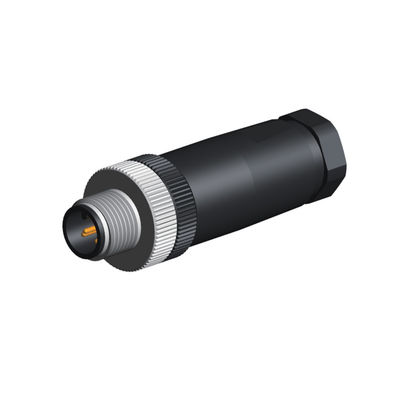

M12 Plastic Sensor Connector
100
MOQ
5.5
Price
M12 Plastic Sensor Connector
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China ShenZhen
Brand Name: Rigoal
Certification: CE , ROSH , IP68
Model Number: assembly type
Payment & Shipping Terms
Packaging Details: 46x30x30
Delivery Time: 30work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000
Specifications
Place Of Origin: China
Type: Waterproof Connector
Application: Automation
Series: M12
Coding: A,B,C,D,X
Material Of Contact: CuZn(Brass)
Material Of Contact Body: PA
Connector Locking: Screw
Wire Gouge: AWG26-AWG24
Rated Current: 4A
Product Description

M12 plastic sensor connector




Features:



Model: M12
Number of Pins: 3pole 4pole 5pole 8pole 12pole
Cable Outlet: 4~7mm (PG7)/PG9 available
Connector Type: Male/Female Straight/Right Angle (Optional)
Coupling: Threaded Coupling
Termination: Screw
Wire Size: 0.14-0.5mm (AWG 26-20)
IP Rating: IP67
Rated Voltage: 250V (4 Pin): 60V (5 Pin) 30V (8 Pin)
Withstand Voltage: 2500V (4 Pin) 1500V (5 Pin) 800V (8 Pin)
Rated Current: 4A (4/5 Pin) 2A (8 Pin)
Operating Temperature: -25°C-85°C
Shell Color: Black
Contact Resistance: ≤3 Ohm
Insulation Divison: Ⅲ
Over Voltage Protection Level: Ⅱ
Quantity: 1 Pc



M12 Plastic Sensor Connector 1

M12 Plastic Sensor Connector 2


For more details, please contact us. We will send you picture or drawing for your approval before offer you samples.
