M12 Waterproof Plastic Series Connector
100
MOQ
5.5
Price
M12 Waterproof Plastic Series Connector
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China ShenZhen
Brand Name: Rigoal
Certification: CE , ROSH , IP68
Model Number: assembly type
Payment & Shipping Terms
Packaging Details: 46x30x30
Delivery Time: 30work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000
Specifications
Product Name: M12 Waterproof Plastic Series Connector
Termination: Screw/Solder/Crimp
Insert Material: TPU+GF
Contact Material: Brass With Gold Plated
Overmold Material: Transparent TPU
Coupling Material: Brass With Nickel Plated
Number Of Pole: 4pins
Operate Temperature: -20℃~+80℃
Degree Of Protect: IP67/IP68
Standard: IEC 61076-2-101
Product Description

M12 waterproof plastic series connector


M12 series connector

1. Supply connectors for sensors

2. Supply circular connectors for instruments and meters

3. Supply photoelectric sensor connector

4. Supply thermal conductivity type flow switch connector

product description:

Connector specification: m12

Connection method: threaded connection

Connection method: screw

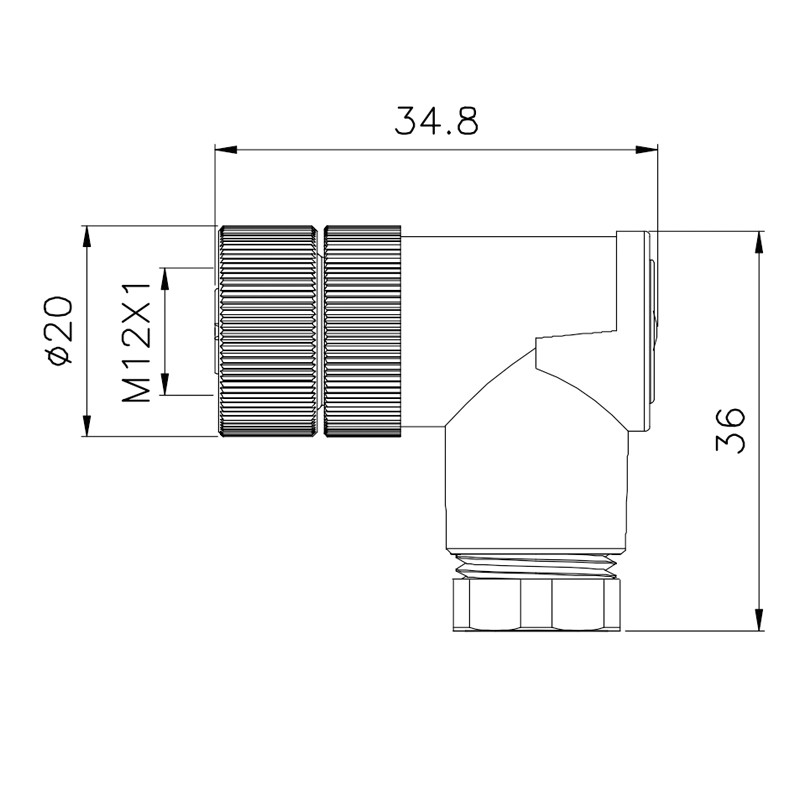

Joint form: straight, 90 degree elbow.
The pin sockets are gold-plated.

Outlet cable diameter: 4-6mm, 6-8mm

The m12 cable plug product matched with the m12 socket product is directly casted in the cable. cable length

The length can be specified by the user. For example, 1 meter, 2 meters, 5 meters, 10 meters, etc.

Standard M12 plug for bus system, suitable for pressure sensor, photoelectric sensor,

The electrical connections of various sensors such as encoders and instruments are standard parts with strong interchangeability and are available in stock



M12 can be customized with double male head, double female head, one male and one female, one male to two females, etc., please consult customer service for details

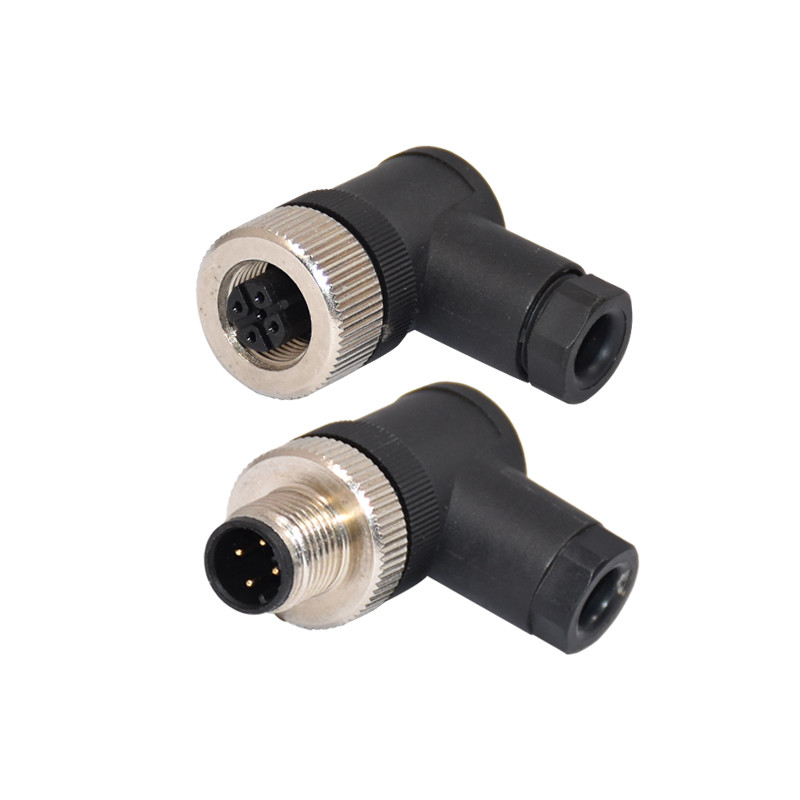

M12 Waterproof Plastic Series Connector 1

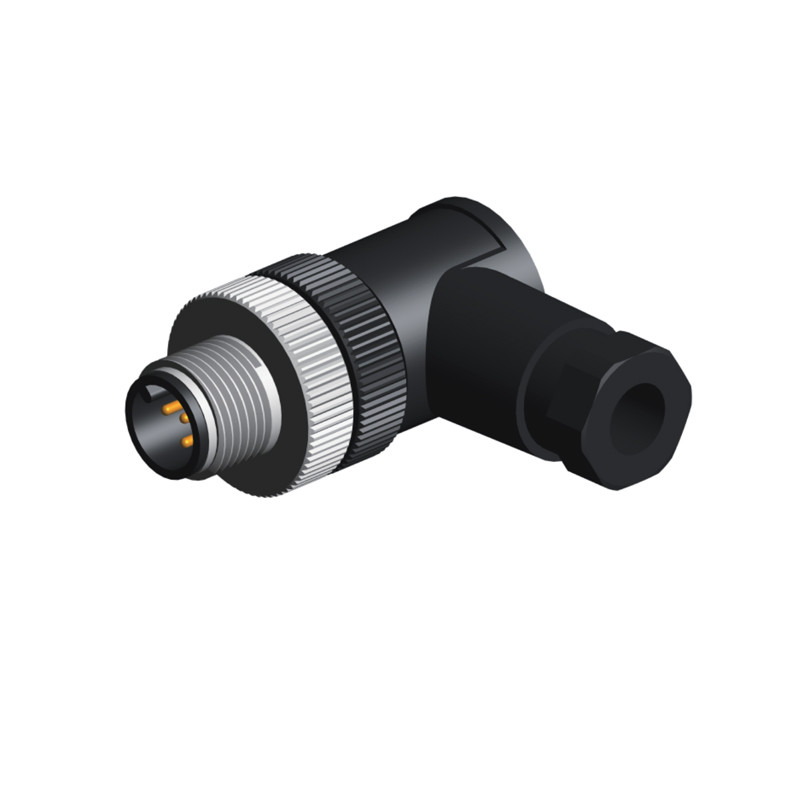

M12 Waterproof Plastic Series Connector 2

M12 Waterproof Plastic Series Connector 3
