Home /Products/M12 Waterproof Connector/Field Attachable M12 Waterproof Connector TPU GF Angle 12 Pin Nickel Plated
Field Attachable M12 Waterproof Connector TPU GF Angle 12 Pin Nickel Plated
100
MOQ
negotiable
Price
Field Attachable M12 Waterproof Connector TPU GF Angle 12 Pin Nickel Plated
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China ShenZhen
Brand Name: Rigoal
Certification: CE ， Rohs , IP68
Model Number: With a line
High Light:

Field Attachable M12 Waterproof Connector

,

M12 Waterproof Connector TPU GF

,

Nickel Plated M12 Wire Connector
Payment & Shipping Terms
Packaging Details: 46x30x30
Delivery Time: 30work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000
Specifications
Product Name: M12 Angle 12pin Type Wire Connector
Termination: Screw
Insert Material: TPU+GF
Contact Material: Brass With Gold Plated
Overmold Material: Transparent TPU
Coupling Material: Brass With Nickel Plated
Number Of Pole: 2,3,4,5,6,8,12 Pins
Operate Temperature: -20℃~+80℃
Degree Of Protect: IP67/IP68
Standard: IEC 61076-2-101
Product Description
The M12 circular connector that we produce conform to international standard for IEC61076-2-101 with M12*1.0 screw locking.
Waterproof rating is IP67, protected from dust and water during immersion,resistant to many oils and chemical
M12 offers many different cable connectors, panel mounted receptacles, field attachable/installable connectors and its
accessories. Connectors have industry- standard A, B, D ,X,S,T,K,Lcoding, for both screw-locking and quick-locking system.
Pull Force: 10N MAX
O-ring: Rubber
Rated Temperture: -40°c, +120°c
Corrosion Resistence;Salt spary test, >48h
Hexagonal nut: Brass, Nickel plated

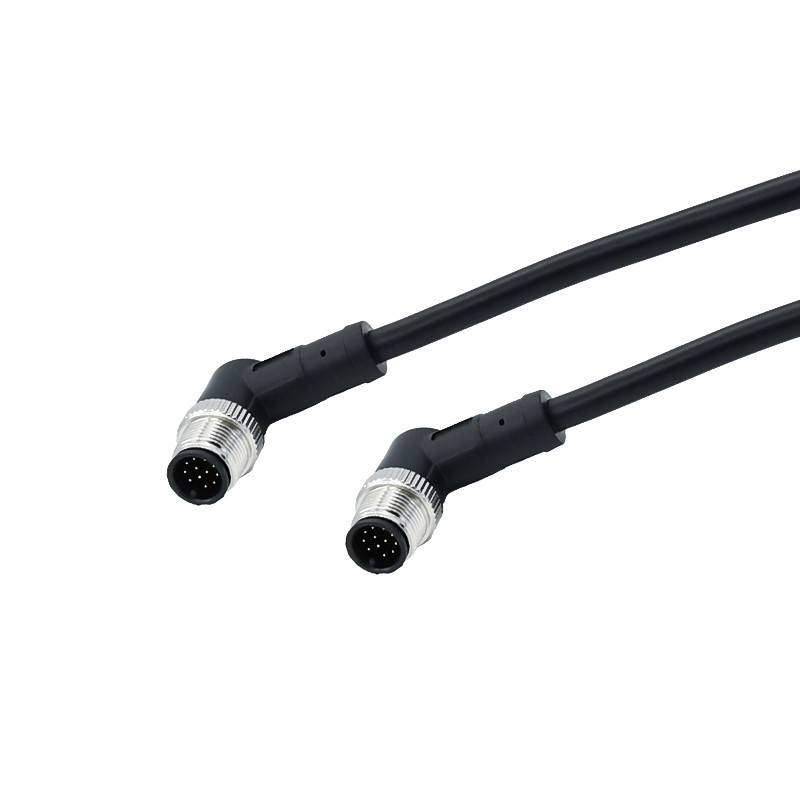

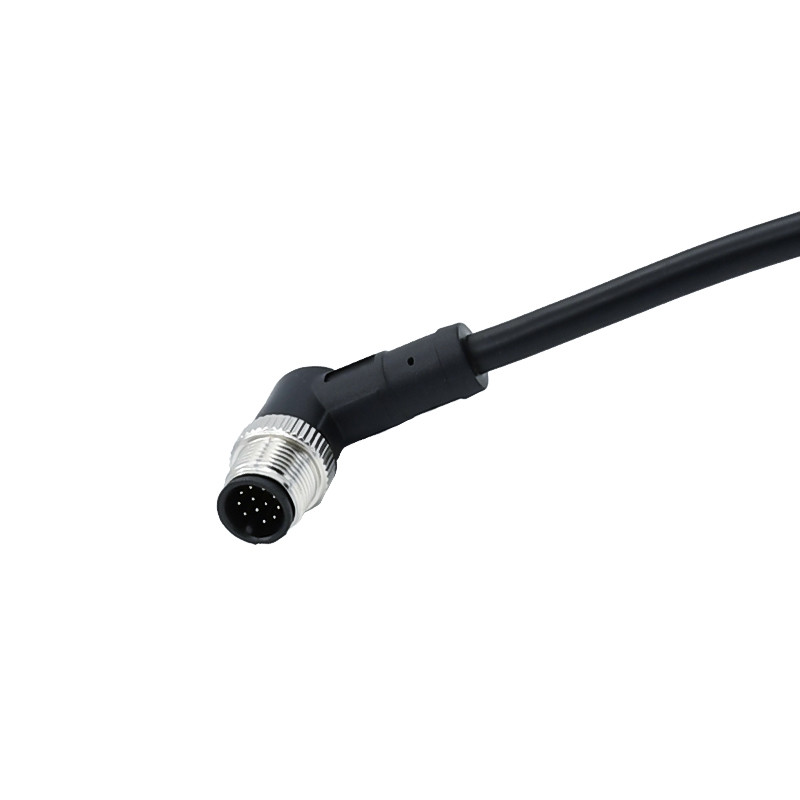

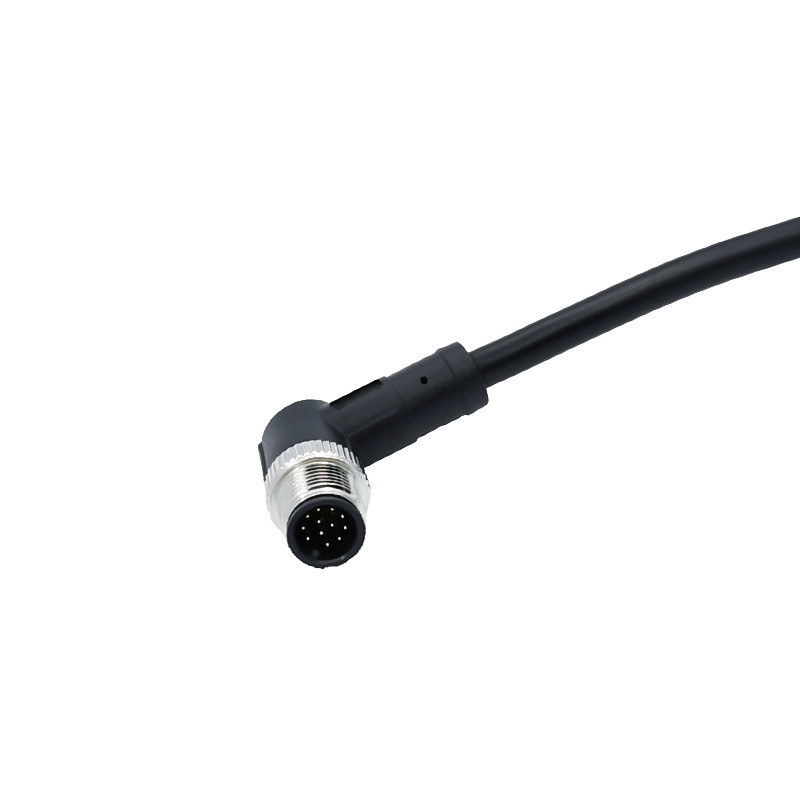

Field Attachable M12 Waterproof Connector TPU GF Angle 12 Pin Nickel Plated 0
Field Attachable M12 Waterproof Connector TPU GF Angle 12 Pin Nickel Plated 1
Packing & Delivery
Field Attachable M12 Waterproof Connector TPU GF Angle 12 Pin Nickel Plated 2
Field Attachable M12 Waterproof Connector TPU GF Angle 12 Pin Nickel Plated 3
Field Attachable M12 Waterproof Connector TPU GF Angle 12 Pin Nickel Plated 4
M12 connector, waterproof connector, M12 cable connector with three kinds of package as below: 1.Each piece in one PE bag, then put in a small carton 2.OEM package is avaiable 3.According to customer requirement
Tag:

M12 Waterproof Connector

Waterproof M12 Plug Connector

IP67 Waterproof Circular Connector
