IP68 3 - 17 Pin M12 Waterproof Connector Fielded Installation Screw Plug Socket
10 pieces
MOQ
negotiable
Price
IP68 3 - 17 Pin M12 Waterproof Connector Fielded Installation Screw Plug Socket
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Guangdong China
Brand Name: Rigoal
Certification: CE/ISO9001/IP68/ROHS
Model Number: M12 connector 2020
High Light:

17 Pin M12 Waterproof Connector

,

Screw Plug M12 Waterproof Connector

,

TPU IP68 Waterproof Connector

Payment & Shipping Terms
Packaging Details: First in a PE bag,then in a carton.
Delivery Time: 1~3 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Specifications
Pin: 3 4 5 6 8 12 17 Pin
Code: A B D Code
Type: M5/M8/M9/M12/M16
Rated Current: 1.5A For 12 17 Pin/2A For 4 5 8 Pin/4A For 3 4 Pin
Rated Voltage: 30V For 8 12 17 Pin/60V For 5 Pin/250V For 3 4 Pin
Outlet: Suitable OD 4-8mm Cable
Contact Plating: Au(gold Plating)
Material Of Connector: CuZn,TPU
Mechanical Operation: >500 Mating Cycles
Operating Temperature: -25°C~85°C
Product Description

IP68 M8 M12 3 4 5 6 8 12 17 pin fielded installation screw plug socket waterproof assembly connector

IP67 IP68 water proof male female plug M12 A B D coding 3 4 5 6 8 12 17 pin way pole assembly connectors.

Series:M5 M8 M12 M9 M16 waterproof connector

Type:panel mount/assembly/molded cable

Connector locking system of screw(3~8pin)

Connector locking system of solder(12~17pin)

M8 connector:suitable OD 3-6mm cable

PG7:suitable OD 4-6MM

PG9:suitable OD 6-8MM

Plastic & Metal

Shielded & Unshielded

Straight & 90 degrees

Male & Female





Feature:
* Quality is our culture.

* Short delivery time
* Quick and easy installation
* One-stop production factory
* Hardware and cable self-production





Application:

● Industrial equipment
● EMS circuit board assembly
● Industrial safety grating light curtain
● Equipment batteries, semiconductors
● Fieldbus: DeviceNet, CANopen, Profibus, Ethernet
● Sensors, actuators, encoders, motors, industrial cameras, ships and other equipment
● Factory automation process control
● Packaging label printing equipment
● Ship electronics NMEA 2000, rail transit
● LED outdoor display, outdoor LED lighting

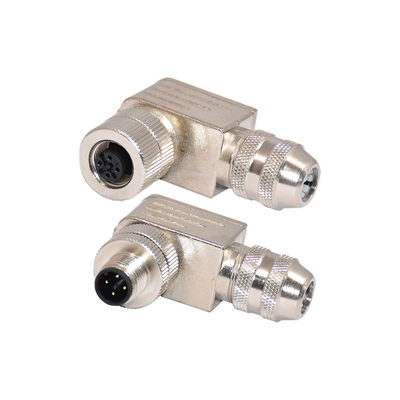

IP68 3 - 17 Pin M12 Waterproof Connector Fielded Installation Screw Plug Socket 0

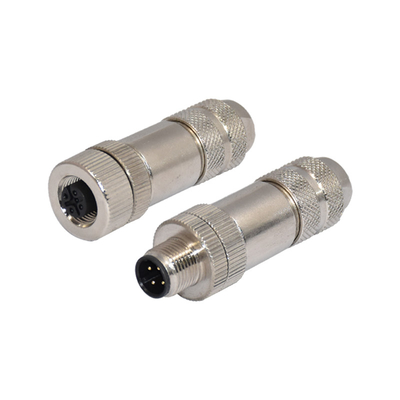

IP68 3 - 17 Pin M12 Waterproof Connector Fielded Installation Screw Plug Socket 1

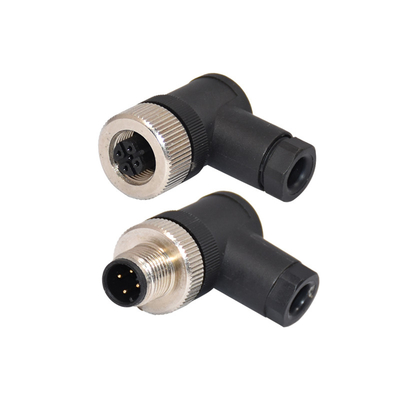

IP68 3 - 17 Pin M12 Waterproof Connector Fielded Installation Screw Plug Socket 2







IP68 3 - 17 Pin M12 Waterproof Connector Fielded Installation Screw Plug Socket 3





Packaging
1.Each piece in one PE bag, then put in a small carton
2.OEM package is avaiable
3.According to customer requirement
Shipping
We can according to customer request choose different transport way,which more converence ,which we will choose!
Usually is DHL ,Fedex ,TNT,UPS ,Air shipping ,sea shipping ,train.





Q1: Are you a factory?
A: Yes, we are the professional manufacturer of connectors and precision mold since 2013
Q2: How about the certificates?
A:ISO 9001, CE, RoHS, IP68 etc.

Q3: How about the payment terms?

A: we can do 30% deposit , 70% deposit before shipment and balance against shipment

Q4: How long is the delivery time?
A: We ensure the fast delivery. Generally, it will take 2-5 days for small order or the stock goods; 10 to 15 for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.
Q5:why choose us?
1/one of largest connector factory in asia
2/more than 8 years of export experience
3/good quality &factory directly low price
4/more than 8 years manufacture experience accepted OEM&ODM service.
Q6:what can you buy from us?
waterproof cables, waterproof connectors, power connectors, signal connectors, network connectors, etc., such as, M5,M8,M9,M12,M16,M23,D-SUB,RJ45,USB,AISG,SP series,GX series and solenoid valve connectors, etc.
Q7: what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,CPT,DDP,DDU;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow.







Customer Foremost, Service First ,Quality First!



Any questions,we are always here for you!
