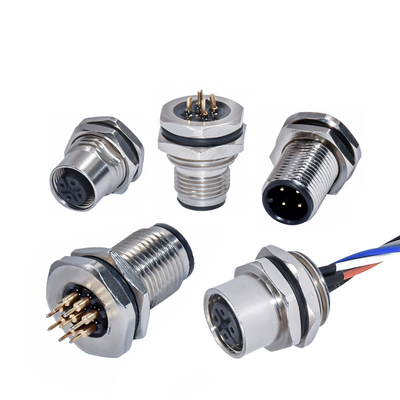

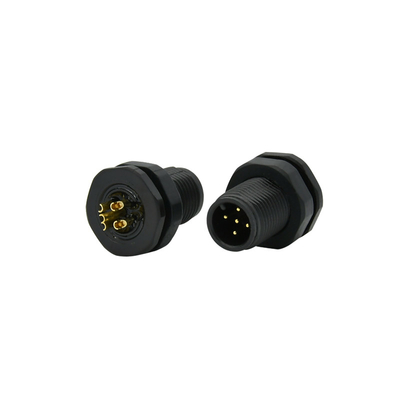

The M12 Panel Receptacle series provides three kinds of mount choice: PCB Mount, Panel Mount & Cable, and have three features of mount: Front Mount, Back Mount, 4 Hole Flange. According to IEC 61076-2-101/104 standard, complying with IP67 protection level.
Products Feature
M12*1 thread locking mechanism, anti-vibration locking design;
Easy quick connect and disconnect coupling;
Pin configurations: 3, 4, 5, 8, 12 and 17 positions;
A, B, C, D, K, L, X, S, T coding available;
Meets IP67/IP68 waterproof requirements;
Temperature Range: -25°C ~ + 85°C ;
Alternative mount arrangements for solder cup or PCB;
Panel Mount and distribution version available;
Benefits
Nickel plated brass
High durability, corrosion resistance, oxidation resistance
Strong waterproof performance
* A-coded mostly used in sensors, actuators, motors, and most other standard devices. it usually between 3 and 12 pins.
* B-coded mostly used in network cables for Fieldbus connections, includes systems that operate with Profibus. it typically have between 3 and 5 pins.
* C-coded primarily used with AC sensors and actuators, and also have a dual keyway for added security. it have between 3 and 6 pins.
* D-coded typically used in network cables for Ethernet and ProfiNet systems. it transfer data up to 100 Mb and typically provides 3 to 5 pins.
* S-coded are for ac power application.
* T-coded are for dc power application.
* X-coded can transfer large amounts of data up to 10Gb at high speeds, it will always have 8 pins.
Packaing & Shipping
| 1.Put dozens of pieces on a tray 2.Wrap the tray tightly with protective film 3.Put the wrapped tray in the carton 4.According to customer requirement |
| We will choose different transportation modes according to customers' needs,which more convenient ,which we will choose! Usually is DHL ,Fedex ,TNT,UPS ,Air shipping ,sea shipping ,training shipping etc. |
FAQ
| 1. Who are we? We are based in Guangdong, China, start from 2013,sell to Northern Europe(18.00%),Central America(16.00%),North America(13.00%),Western Europe(12.00%),Southern Europe(12.00%),South America(10.00%),Eastern Asia(5.00%),Africa(3.00%),South Asia(3.00%),Eastern Europe(2.00%),Southeast Asia(2.00%),Oceania(2.00%),Mid East(2.00%). There are total about 51-100 people in our office. |
| 2:what can you buy from us? waterproof cables, waterproof connectors, power connectors, signal connectors, network connectors, etc., such as M5,M8,M9,M12,M16,M23, USB,D-SUB, RJ45, AISG,7/8'',SP series connectors,solenoid valve etc. |
| 3:why choose us? 1/one of largest connector factory in asia 2/more than 9 years of export experience 3/good quality &factory directly low price 4/more than 8 years manufacture experience accepted OEM&ODM service |
| 4: How long is the delivery time? A: We ensure the fast delivery. Generally, it will take 2-5 days for small order or the stock goods; 10 to 15 for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details. |
| 5: How about the certificates? A:ISO 9001, CE, RoHS, IP68 etc. |
|
6. How to purchase M12 connectors from Rigoal? Please send us the specification or drawing for the items with quantity and performance requirements. |
