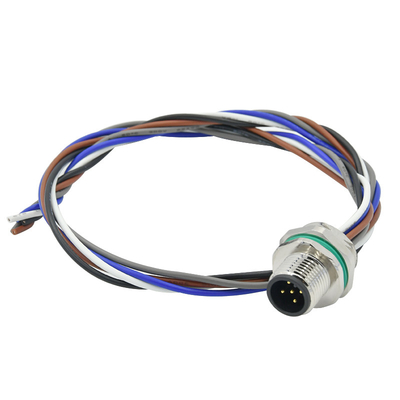

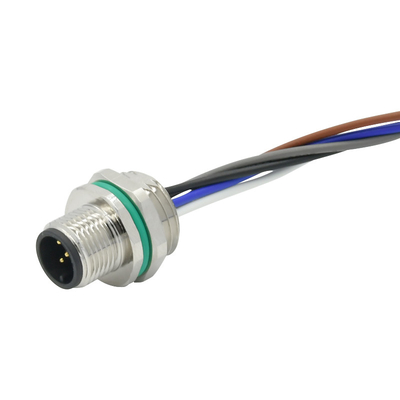

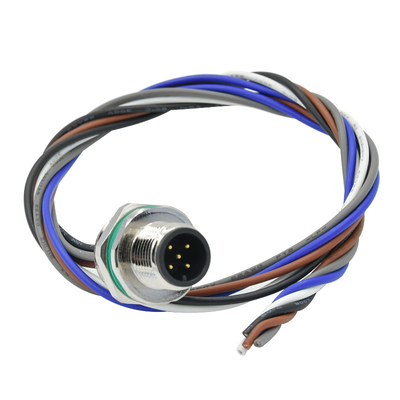

The M12 Panel Receptacle series provides three kinds of mount choice: PCB Mount, Panel Mount & wire, and have three features of mount: Front Mount, Back Mount, 4 Hole Flange. According to IEC 61076-2-101/104 standard, complying with IP67 protection level.
Products Feature
M12*1 thread locking mechanism, anti-vibration locking design;
Easy quick connect and disconnect coupling;
Pin configurations: 2, 3, 4, 5, 8, 12 and 17 positions;
A, B, C, D, K, L, X, S, T coding available;
Meets IP67/IP68 waterproof requirements;
Temperature Range: -25°C ~ + 85°C ;
Alternative mount arrangements for solder cup or PCB;
Panel Mount and distribution version available;
Benefits
Nickel plated brass
High durability, corrosion resistance, oxidation resistance
Strong waterproof performance
Aplication
Sensors, actuators, encoders, motors, industrial cameras, ships and other equipment
LED outdoor display, outdoor LED lighting
Factory automation process control
Packaging label printing equipment
Industrial equipment
Industrial safety grating light curtain
Equipment batteries, semiconductors
Fieldbus: DeviceNet, CANopen, Profibus, Ethernet,
EMS circuit board assembly
Ship electronics NMEA 2000, rail transit
Feature:
One-stop production factory
Short delivery time
Hardware and cable self-production
Mold making and inject molding
Quick and easy installation
Quality is our culture.
Shipping & Packaing
| If the quantity is not big or you need it urgently,we advise you to ship them by Express shch as DHL,FEDEX,UPS,TNT etc. If your quantity is large,we advise you to use Sea shipping or Air shipping. |
| 1.Put dozens of pieces on a tray 2.Wrap the tray tightly with protective film 3.Put the wrapped tray in the carton 4.According to customer requirement |
FAQ
| 1. Are you a factory? Yes, we are the professional manufacturer of connectors and precision mold since 2013 |
| 2:what can you buy from us? waterproof cables, waterproof connectors, power connectors, signal connectors, network connectors, etc., such as M5,M8,M9,M12,M16,M23, USB,D-SUB, RJ45, AISG,7/8'',SP series connectors,solenoid valve etc. |
| 3. How can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; |
| 4: How long is the delivery time? A: We ensure the fast delivery. Generally, it will take 2-5 days for small order or the stock goods; 10 to 15 for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details. |
| 5: Why choose us? one of largest connector factory in asia ; more than 9 years of export experience; good quality &factory directly low price; more than 9 years manufacture experience accepted OEM&ODM service |
| 6: what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,CPT,DDP,DDU； Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY; Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow; |
