M12 series connectors
M series connector include panel mount,assembly type and molded cable type

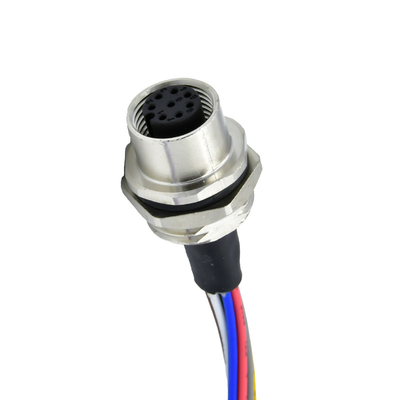

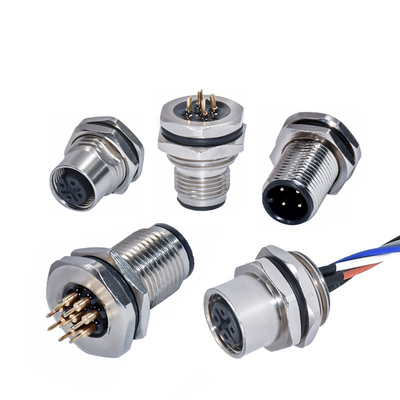

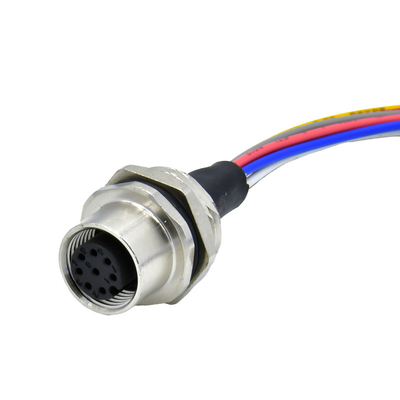

The M12 Panel Receptacle series provides three kinds of mount choice: PCB Mount, Panel Mount & wire, and have three features of mount: Front Mount, Back Mount, 4 Hole Flange. According to IEC 61076-2-101/104 standard, complying with IP67 protection level.
waterproof M12 connector,fix screw with self-locking threaded joint,waterproof IP67 M12 cable connector.
Protected from dust and water during immersion,resistance to many oils and chemical.
Can be easily connected to proximity switches,photoelectric barries,flow moitoring devices and field bus components sensor devices and actuator devices.
Satisfy all the requirements of sensor devices and actuator devices in automation technology.
Products Feature
M12*1 thread locking mechanism, anti-vibration locking design;
Easy quick connect and disconnect coupling;
Pin configurations: 2, 3, 4, 5, 8, 12 and 17 positions;
A, B, C, D, K, L, X, S, T coding available;
Meets IP67/IP68 waterproof requirements;
Temperature Range: -25°C ~ + 85°C ;
Alternative mount arrangements for solder cup or PCB;
Panel Mount and distribution version available.
Application
Equipment batteries, semiconductors
Fieldbus: DeviceNet, CANopen, Profibus, Ethernet,
EMS circuit board assembly
Sensors, actuators, encoders, motors, industrial cameras, ships and other equipment
LED outdoor display, outdoor LED lighting
Factory automation process control
Packaging label printing equipment
Industrial equipment
Industrial safety grating light curtain
Ship electronics NMEA 2000, rail transit
Packaing & Shipping
|
1.About 50 pieces in one PE bag, then put in a carton |
| If the quantity is not big or you need it urgently,we advise you to ship them by Express shch as DHL,FEDEX,UPS,TNT etc. If your quantity is large,we advise you to use Sea shipping or Air shipping. |
FAQ
| 1. What is the difference between M12 connector coding? A-coded mostly used in sensors, actuators, motors, and most other standard devices. it usually between 2 and 12 pins. B-coded mostly used in network cables for Fieldbus connections, includes systems that operate with Profibus. it typically have between 3 and 5 pins. C-coded primarily used with AC sensors and actuators, and also have a dual keyway for added security. it have between 3 and 6 pins. D-coded typically used in network cables for Ethernet and ProfiNet systems. it transfer data up to 100 Mb and typically provides 3 to 5 pins. S-coded are for ac power application. T-coded are for dc power application. X-coded can transfer large amounts of data up to 10Gb at high speeds, it will always have 8 pins. |
|
2. How can we guarantee quality? |
| 3:what can you buy from us? waterproof cables, waterproof connectors, power connectors, signal connectors, network connectors, etc., such as M5,M8,M9,M12,M16,M23, USB,D-SUB, RJ45, AISG,7/8'',SP series connectors,solenoid valve etc. |
| 4: How long is the delivery time? A: We ensure the fast delivery. Generally, it will take 2-5 days for small order or the stock goods; 10 to 15 for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details. |
| 5: Why choose us? one of largest connector factory in asia ; more than 9 years of export experience; good quality &factory directly low price; more than 9 years manufacture experience accepted OEM&ODM service |
| 6: what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,CPT,DDP,DDU； Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY; Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow; |
