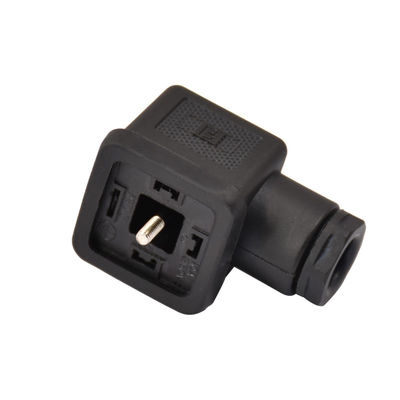

Valve Connector Specification:
A type Pin dimensions: 18mm (2+PE,3+PE)
B type Pin dimensions:9mm /10mm/11mm(2+PE)
C type Pin dimensions:8mm or 9.4mm(2+PE,3+PE)
Waterproof: O-ring FKM
Protection:IP68/IP69K
Connector over-mold: TPU
Contact Material: BeCu(Beryllium copper)
M3 Screw Material: Stainless Steel
High Temperature resistance
Resistance against chemicals and oils
Led indication with different color(Yellow/Gray/Red...),Cable be customized.
Low and high housing
Degree of protection IP65/IP67
Wired versions
Moulded versions
Base,assembly and cable type
Series connection of LED and resistance shows the voltage used for both AC/DC
Sample can be sent to you for test if you need.
Our production is fast and you can receive the solenoid valve connector quickly.
Design as per DIN EN 175301-803,formerly DIN 43650
Degree of protection IP65/67
Version A,B and C are available
TPU over molded
Cable length customized,PUR and PVC cable options
LED indicator is available
Rigoal's solenoid valve connectors provide compact and robust connection solution for the secure transmission of voltages and current for pneumatic,hydraulic and electromagnetic actuators.
The current range includes versions of A,B and C,with an integrated protective circuit to reduce voltafe spikes or an LED function display.
Packaging & Shipping
|
1.Put them neatly in the carton |
|
We will choose different transportation modes according to customers' needs,which more convenient ,which we will choose! Usually is DHL ,Fedex ,TNT,UPS ,Air shipping ,sea shipping ,training shipping etc.
|
FAQ
|
Q1: How about the certificates? |
|
Q2: How about the payment terms? A: we can do 30% deposit , 70% deposit before shipment and balance against shipment |
|
Q3: How long is the delivery time? |
|
Q4: Are you a factory? |
|
Q5:why choose us? |
|
Q6:what can you buy from us? |
|
Q7: what services can we provide? |
Contact us without hesitation if you have any customized request!
