Field Wirable Solenoid Valve Connector 10A 250V LED DIN 43650 Connectors

100 pieces
MOQ
negotiable
Price
Field Wirable Solenoid Valve Connector 10A 250V LED DIN 43650 Connectors
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Voltage: 250V
Rated Current: 10A
Pin: 2 + PE;3 + PE
Size: SizeA,SizeB,SizeC

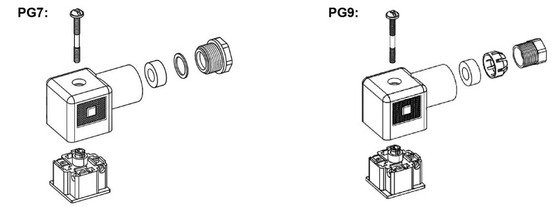

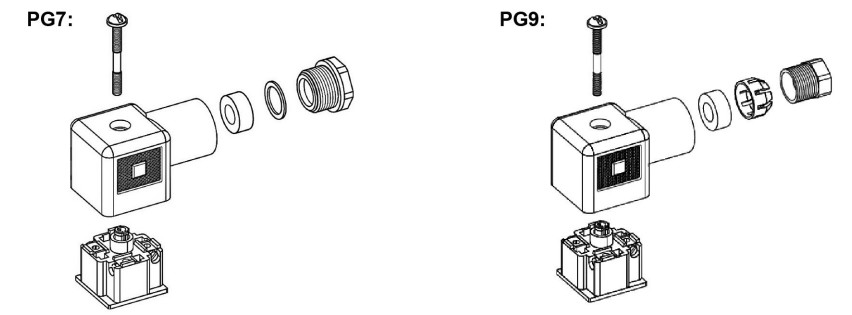

Tail: PG7/PG9
Housing Material: PA
Degree Of Protection: IP65
Operating Temperature: -30°C~120°C
Connector Locking System: Screw
EMC Compliance: Not Shielded
High Light:

Field Wirable Solenoid Valve Connector

,

solenoid valve connector 10A

,

Solenoid Valve DIN 43650 connectors

Basic Infomation
Place of Origin: Guangdong,China
Brand Name: Rigoal
Certification: IP67;ROHS;ISO9001;CE
Model Number: valve
Payment & Shipping Terms
Packaging Details: Put them neatly in the carton;The small parts are packed in bags and then put into cartons
Delivery Time: 2 days to 15 days
Payment Terms: Western Union, D/A,MoneyGram,L/C,D/P, T/T and so on
Supply Ability: 200000 pieces per month
Product Description

Design as per DIN EN 175301-803,formerly DIN 43650
Degree of protection IP65/67
Version A,B and C are available
TPU over molded
Cable length customized,PUR and PVC cable options

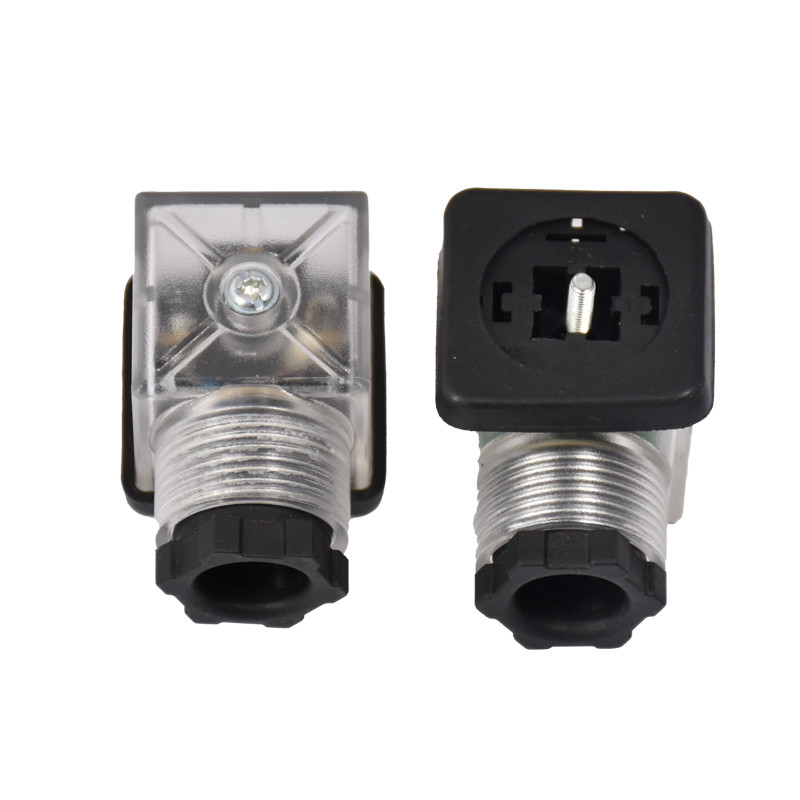

LED indicator is available



DIN 43650 connectors are a series of connectors which are used with solenoid valves. The Din 43650 connectors are normally used in hydraulics and pneumatics. Other applications are pressure sensors and switches, optical, limit and proximity switches.



Valve Connector Specification:

Waterproof: O-ring FKM
Protection:IP65/IP67
Connector over-mold: TPU
Contact Material: BeCu(Beryllium copper)
M3 Screw Material: Stainless Steel
High Temperature resistance
Resistance against chemicals and oils
A type Pin dimensions: 18mm (2+PE,3+PE)
B type Pin dimensions:9mm /10mm/11mm(2+PE)
C type Pin dimensions:8mm or 9.4mm(2+PE,3+PE)
Led indication with different color(Yellow/Gray/Red...),Cable be customized.



Low and high housing

Wired versions

Moulded versions

Base,assembly and cable type

Series connection of LED and resistance shows the voltage used for both AC/DC

Sample can be sent to you for test if you need.

Our production is fast and you can receive the solenoid valve connector quickly.













Field Wirable Solenoid Valve Connector 10A 250V LED DIN 43650 Connectors 0

Field Wirable Solenoid Valve Connector 10A 250V LED DIN 43650 Connectors 1Field Wirable Solenoid Valve Connector 10A 250V LED DIN 43650 Connectors 2







Packaging & Shipping

Field Wirable Solenoid Valve Connector 10A 250V LED DIN 43650 Connectors 3

Field Wirable Solenoid Valve Connector 10A 250V LED DIN 43650 Connectors 4



1.Put them neatly in the carton
2.The small parts are packed in plastic bags and then put into cartons
3.According to your requirement

We will choose different transportation modes according to customers' needs,which more convenient ,which we will choose! Usually is DHL ,Fedex ,TNT,UPS ,Air shipping ,sea shipping ,training shipping etc.
