Industrial M12 Waterproof Cable Connector 3 - 17 Position A B D X Coding Male / Female

100 piece

MOQ

negotiable

Price

Industrial M12 Waterproof Cable Connector 3 - 17 Position A B D X Coding Male / Female

Features Gallery Product Description Request A Quote

Features

Specifications

Position: 3 / 4 / 5 / 8 / 12 / 17 Position

Coding: A B D X Coding

Gender: Male/Female

Rated Current: 1A For 12 Pin/2A For 8 Pin/4A For 3 4 5 17 Pin

Rated Voltage: 30V For 8 12 Pin/60V For 5 Pin/250V For 3 4 17 Pin

Degree Of Protection: IP67 / IP68

Operating Temperature: -25°C~85°C

Cable AWG: 22AWG - 26AWG

Material Of Connector: PUR,TPU Or PVC

Custom: Acceptable

Highlight:

TPU M12 Waterproof Cable Connector

,

M12 Solder waterproof cable connector

,

Industrial Solder M12 Waterproof Connector

Basic Infomation

Place of Origin: Guangdong China

Brand Name: Rigoal

Certification: IP68;ROHS;CE;ISO9001

Model Number: m12

Payment & Shipping Terms

Packaging Details: Put them in one transparent bag, then put in a carton

Delivery Time: 2 days to 20 days

Payment Terms: Paypal,D/P, L/C, D/A, D/P, Western Union,MoneyGram,TT

Supply Ability: 10 0000 pieces each month

Gallery

Industrial M12 Waterproof Cable Connector 3 - 17 Position A B D X Coding Male / Female

Product Description

Our detail

Series:M5 M8 M12 M16

Product Positions:3 4 5 6 8 12 17 positions
A B C D X T S L K M Y coded

Customize the appearance according to your needs
Male or female/right angle or straight

Shielded and unshielded are available
According to your actual application,we can provide shielded or unshielded customization

Custom waterproof cable connector
Power/Communication
Can be customized according to requirements

Cable shell supports color selection
The color can be customized according to your needs

Multiple choices of cable shell materials
We can provide a variety of materials of PVC/TPU/PUR,if you have special requirements,please contact us

Picture show

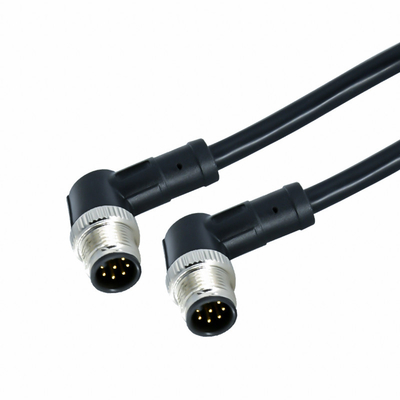

Industrial M12 Waterproof Cable Connector 3 - 17 Position A B D X Coding Male / Female 0

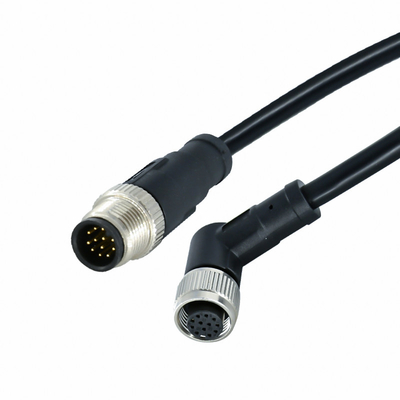

Industrial M12 Waterproof Cable Connector 3 - 17 Position A B D X Coding Male / Female 3

The M12 series features sensor and actuator connectors with locking thread for electronics automation, process control,and commercial electronics.
We offer many different cable connectors, panel mount receptacles, field attachable/ installable connectors and various accessories.
Our connectors have industry standard A/B/C/D/S/T/X cording, for both screw locking and quick-locking styles.

What is the difference between M12 connector coding?

* A-coded mostly used in sensors, actuators, motors, and most other standard devices. it usually between 2 and 12 pins.
* B-coded mostly used in network cables for Fieldbus connections, includes systems that operate with Profibus. it typically have between 3 and 5 pins.
* C-coded primarily used with AC sensors and actuators, and also have a dual keyway for added security. it have between 3 and 6 pins.
* D-coded typically used in network cables for Ethernet and ProfiNet systems. it transfer * data up to 100 Mb and typically provides 3 to 5 pins.
* S-coded are for ac power application.
* T-coded are for dc power application.
* X-coded can transfer large amounts of data up to 10Gb at high speeds, it will always have 8 pins.

Packing & Shipping

Packing

Our standard packing: 1pcs connector put into a transparent polybag, every big polybag with a label. then put into a carton.
Packing as buyer's option.

Shipping
If the quantity is not big or you need it urgently,we advise you to ship them by Express shch as DHL,FEDEX,UPS,TNT etc.
If your quantity is large,we advise you to use Sea shipping or Air shipping.

The packaging pictures are for reference only,and the specific packaging depends on the product style and quantity.

Industrial M12 Waterproof Cable Connector 3 - 17 Position A B D X Coding Male / Female 4

Industrial M12 Waterproof Cable Connector 3 - 17 Position A B D X Coding Male / Female 5

FAQ

Q1:why choose us?
one of largest connector factory in asia ;
more than 9 years of export experience;
good quality &factory directly low price;
more than 9 years manufacture experience accepted OEM&ODM service

Q2: Are you a factory?
A: Yes, we are the professional manufacturer of connectors and precision mold since 2013

Q3: How about the certificates?
A:ISO 9001, CE, RoHS, IP68 etc.

Q4: How can you guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

Q5: How about the payment terms?
A: we can do 30% deposit , 70% deposit before shipment and balance against shipment

Q6:How to purchase M12 connectors from Rigoal?
1. Please send us the specification or drawing for the items with quantity and performance requirements.
2. We will offer you a detailed quote with lead time, package, payment term for confirm, normally in 3 days.

Q7: what can you buy from us?
waterproof cables, waterproof connectors, power connectors, signal connectors, network connectors, LED connector etc., such as M5,M8,M9,M12,M16,M23, USB,D-SUB, L20,RJ45, M12 to rj45,AISG,7/8'',SP connectors,solenoid valve etc.

Any question about our product,you are welcome to contact us any time!
