About M12
1.Safe use in the field,because of a high degree of protection,high tensile strength, abrasion and notch resistance
2. Flexible: connectors for on-site assembly,extremely high winding and unwinding strength
3.Soldering/Screw connection
4.M12 extension cable or Flying leads(open cable ends),with good oil resistance/ chemical resistance
5.3 4 5 8 12 17 poles are available .
6.M12 90 degree elbow cabled or M12 straight(180 degree) ,M12 T cable, M12 Y cable.
7:Cable jacket with different colors,overmolded color can be customized.
Waterproof rating is IP67 or IP68, protected from dust and water during immersion,resistant to many oils and chemical.
M12 offers many different cable connectors, panel mounted receptacles, field attachable/installable connectors and its accessories. Connectors have industry- standard A,B,D,X,S,T,K,Lcoding, for both screw-locking and quick-locking system.

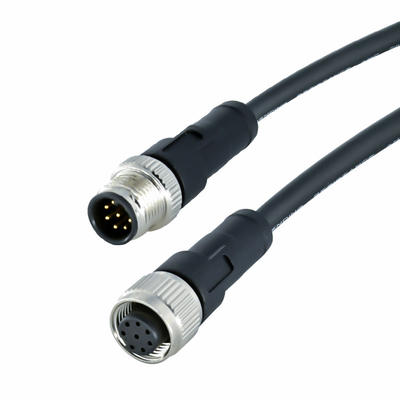

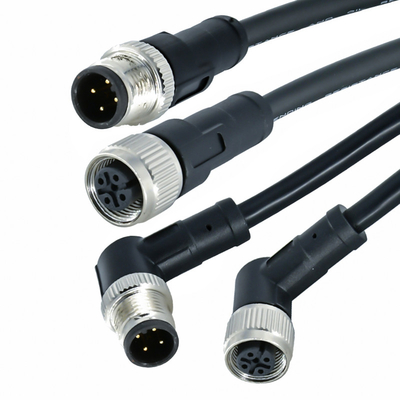

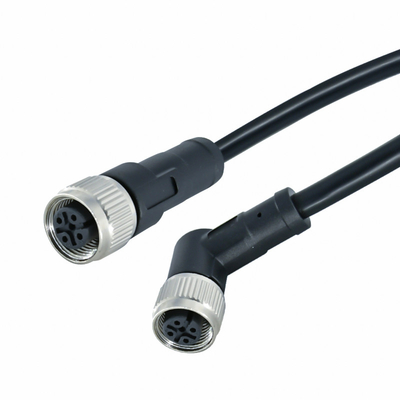

Picture show
Application
Sensors, actuators, encoders, motors, industrial cameras, ships and other equipment
Factory automation process control
Packaging label printing equipment
Industrial equipment
EMS circuit board assembly
Industrial safety grating light curtain
Equipment batteries, semiconductors
Fieldbus: DeviceNet, CANopen, Profibus, Ethernet,
Ship electronics NMEA 2000, rail transit
LED outdoor display, outdoor LED lighting.
| What is the difference between M12 connector coding? |
| * A-coded mostly used in sensors, actuators, motors, and most other standard devices. it usually between 2 and 12 pins. * B-coded mostly used in network cables for Fieldbus connections, includes systems that operate with Profibus. it typically have between 3 and 5 pins. * C-coded primarily used with AC sensors and actuators, and also have a dual keyway for added security. it have between 3 and 6 pins. * D-coded typically used in network cables for Ethernet and ProfiNet systems. it transfer * data up to 100 Mb and typically provides 3 to 5 pins. * S-coded are for ac power application. * T-coded are for dc power application. * X-coded can transfer large amounts of data up to 10Gb at high speeds, it will always have 8 pins. |
Packing & Shipping
|
Packing Our standard packing: 1pcs connector put into a transparent polybag, every big polybag with a label. then put into a carton. |
|
Shipping The packaging pictures are for reference only,and the specific packaging depends on the product style and quantity. |
FAQ
| Q1:why choose us? one of largest connector factory in asia ; more than 9 years of export experience; good quality &factory directly low price; more than 9 years manufacture experience accepted OEM&ODM service |
| Q2: Are you a factory? A: Yes, we are the professional manufacturer of connectors and precision mold since 2013 |
|
Q3: How about the certificates? |
| Q4: How can you guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; |
| Q5: How about the payment terms? A: we can do 30% deposit , 70% deposit before shipment and balance against shipment |
| Q6:How to purchase M12 connectors from Rigoal? 1. Please send us the specification or drawing for the items with quantity and performance requirements. 2. We will offer you a detailed quote with lead time, package, payment term for confirm, normally in 3 days. |
| Q7: what can you buy from us? waterproof cables, waterproof connectors, power connectors, signal connectors, network connectors, LED connector etc., such as M5,M8,M9,M12,M16,M23, USB,D-SUB, L20,RJ45, M12 to rj45,AISG,7/8'',SP connectors,solenoid valve etc. |
Any question about our product,you are welcome to contact us any time!
