Industrial M12 X Code Connector Metal Cable Plug And Socket Lan 8 Pin

100
MOQ
negotiable
Price
Industrial M12 X Code Connector Metal Cable Plug And Socket Lan 8 Pin
Features Gallery Product Description Request A Quote
Features
Specifications
Place Of Origin: Guangdong, China
Model Number: M12X-8P
Application: Power
Pins: 8P
Waterproof Rate: IP67
Rated Current: 4A
Mating Cycles: >500 Times
Termination: Assembled With Sing Wires
Gender: Male & Female
Wire Gouge: AWG24-AWG26
High Light:

Industrial M12 waterproof connector

,

M12 X Code Connector

,

Metal M12 waterproof connector Cable

Basic Infomation
Brand Name: Rigoal
Certification: CE , ROHS , IP68
Payment & Shipping Terms
Packaging Details: 46x30x30
Delivery Time: 7work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000
Product Description

Industrial metal cable plug and socket lan 8 pin M12 X code connector



M12 X-coded circular connectors are designed for many automation applications, including Traffic rails, industrial cameras,
Ethernet switches, data transmission.
Hysik M12 X-code can provide 8Pin field wireable connector.The connection way about Male field wireable connector without wires is crimp connection
.

Advantages
-Good sealing performance with IP calss up tp IP67.
-Used in the signal transmission ,datas trasmission,Power supply ect
-Campatible with same series connectors on the market
-Wire connection:Solder/Srew connection
-Shield is optional ,provide reliable electromagnetic Protection
-Wire connection method is optional,suitable for continuous shock and vibration environment
-Connection Technology is suitable for all application field



M12 X code connector Material
Product name
Industrial metal cable plug and socket lan 8 pin M12 X code connector
Material of contact
CuZn(Brass)
Contact plating
Au(Gold)
Material of contact body
PA66
Material of housing
CuZn(Brass nickel plated),PA
Connector locking system
Screw
M12 X code connector Technical Data
Insulation Resistance
DC500V±10%, test for 1 minute and the insulation resistance should be more than100MΩ
Contact Resistance
10mΩ at 10mA Max.
Dielectric Withstanding Voltage
1500 V AC contact-to-contact, for 1min.
Durability
4000 cycles insertion/extraction cycles at a maximum rate of 200cycles per hour.
Thermal Shock
5 cycles at -40°C / +105°C, after the test, the function and appearance can't be impacted.
Waterproof Test
Submersion in water 1 meter for 24 hours.

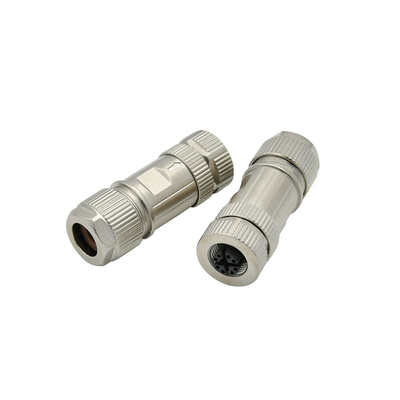

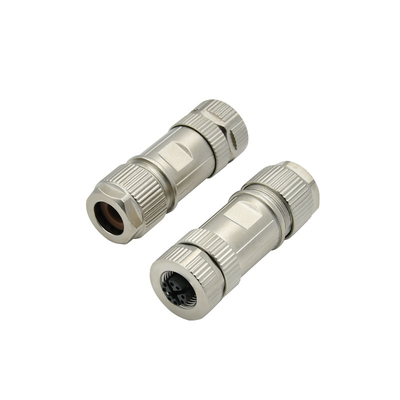

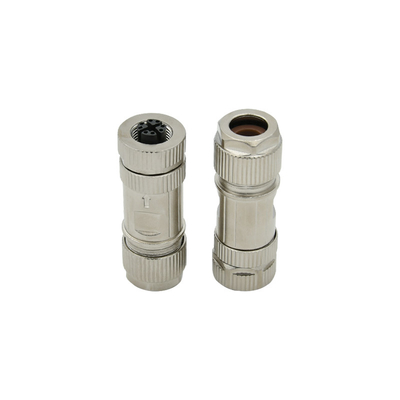

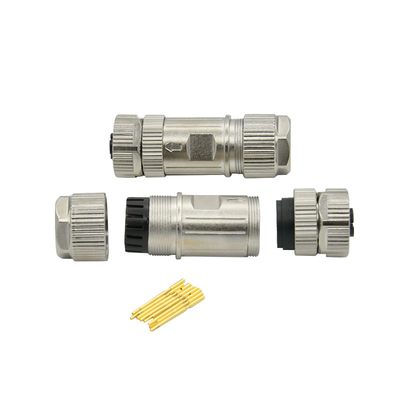

Industrial M12 X Code Connector Metal Cable Plug And Socket Lan 8 Pin 0Industrial M12 X Code Connector Metal Cable Plug And Socket Lan 8 Pin 1Industrial M12 X Code Connector Metal Cable Plug And Socket Lan 8 Pin 2Industrial M12 X Code Connector Metal Cable Plug And Socket Lan 8 Pin 3

Rigoal connector is a reliable manufacturer who supplies various connectors with excellent quality. Moreover, our rugged waterproof technology brings out the advantages among other competitors. So the waterproof connector is surely the state-of-the-art product from our company.

The Waterproof Sensor Connectors apply to signal and small-current power usage of wireless outdoor AP, outdoor LED display and lighting, outdoor lamp, and automation machine. With strict quality monitoring, we are ready to present you our best products. Except for the fine quality materials, we also have tested our metal products in a 1M depth water environment for 24 hour to make sure its durability to water. If you are interested in our product, please do not hesitate and contact with us for our product today!





FAQ



Q1: Are you trading company or manufacturer ?

A1: We are manufacturer.



Q2: How long is your delivery time?

A2: Generally it is 3-5 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.



Q3: Do you provide samples ? is it free or extra ?

A3: Yes, we could offer the sample for free charge but do not pay the cost of freight.



Q4: What is your terms of payment ?

A4: We accept bank transfer, TT, Paypal & Western Union, or other methods.




Quotation will be send you within 24 hours after receiving your specific enquiry.

For more information and items, please feel free to contact us.
