IP68 T Type M12 Waterproof Connector Combined A Code 5Pin Male To Female

100
MOQ
negotiable
Price
IP68 T Type M12 Waterproof Connector Combined A Code 5Pin Male To Female
Features Gallery Product Description Request A Quote
Features
Specifications
Place Of Origin: Guangdong, China
Model Number: M12 Series Sensor Connectors
Application: Industrial And Automative
Product Name: 2/3/4/5/8/12/17Pin M12 Circular Connector
Orientation: Straight
Termination: Soldering
Coupling Nut/Screw: Brass With Nickel Plated
Payment: Paypal\TT\Western Union\Trade Assurance
Number Of Contacts: 5Pin
Keywords: M12 Connector
High Light:

IP68 T Type Waterproof M12 Connector

,

Combined A Code M12 Waterproof Connector

,

Male to Female M12 Waterproof Connector

Basic Infomation
Brand Name: Rigoal
Certification: CE , ROHS , IP68
Payment & Shipping Terms
Packaging Details: 46x30x30
Delivery Time: 30work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 Piece/Pieces per Month
Product Description



M12 T  Type Series Adapter/Splitter waterproof connector

The M12 Circular Connectors is the connector of 12mm metric size with thread locking mechanism, which is one of the most commonly used in factory automation, sensor/actuator boxes, field-bus and industrial controllers.
Link Signal Electronics Provides the M12 T/Y/L Type Connector with 3, 4, 5, 6, 8 Poles .


Quick Details:
* Series: M12 Adapter
* Types: T Type, Y Type, L Type, and I Type
* Gender: Male/Female
* Feature: Water and Dustproof to IP67 when mated with compatible connector



Technical Overview Data

Product Series
M12 Series Adapter
IP rating
IP67
Pin numbers
3Pin/4Pin/5Pin/8Pin
Mating cycle
>500
Locking Mechanism
Screw Coupling
Contact Resistance
<5mΩ
Termination
Soldering
Insulation Resistance
>100mΩ
Shell material
Nickel Plated Brass
Temperature range
-25℃~ +85℃
Insert material
PA66
Rated voltage
60V~30V
Contact material
Brass with gold Plated
Rated current
4A/2A/1.5A

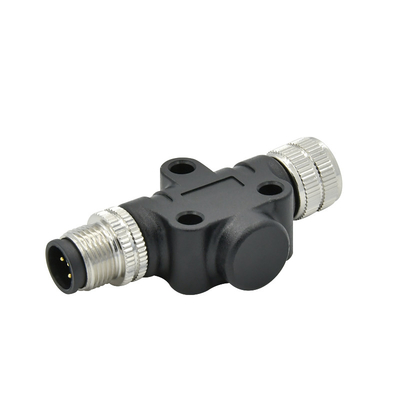

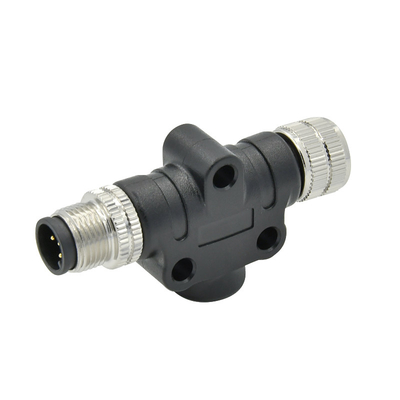

IP68 T Type M12 Waterproof Connector Combined A Code 5Pin Male To Female 0IP68 T Type M12 Waterproof Connector Combined A Code 5Pin Male To Female 1

Different Types M12 Adapters

M12 to M12 Male/Female T/Y/L/I Type Adapter ,

M12 to M8 Male /Female Y Type Adapter

M12 to RJ45 Male/Female Panel Adapter



Q1: Do you provide samples ? is it free or extra ?
A1: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q2: What is your terms of payment ?
A2: We accept bank transfer, TT, Paypal & Western Union, or other methods.

Q3. What's your regular production time after order is placed and confirmed?
A3: Generally speaking, 5-7days for standard products. If customized products,lead time is about 10~12 Days. If your project involves new molds to make, lead time is subject to custom product complex.

Q4. What's your strength in logistics?
A4: International express, by air or by sea, we can give your cost-saving suggestions. Shipment cost saving means your purchasing cost reducing. Both China export and import customs clearance at your side can be managed by us if you like to use our shipping forwarder agents. Enjoy your one-stop purchasing experience at Link Signal Electronics!
