A Code M12 Waterproof Female Connector 5 Pin Plastic Panel Mount With Wire

100
MOQ
negotiable
Price
A Code M12 Waterproof Female Connector 5 Pin Plastic Panel Mount With Wire
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Panel Connector
Gender: Male
Material Of Housing: Brass/Zinc Diecasting Nickel Plated
Material Of Connector: CuZn,TPU
Pin: 3 4 5 8 12 17 Pin
Code: A B D X Code
Kind: Screw;Solder;PCB;With Wire
Contact Resistance: ≤10mΩ
Way To Install: Front Lock;Rear Lock
Degree Of Protection: IP68/IP67
High Light:

Wire M12 Waterproof Female Connector

,

M12 Waterproof Connector 5 pin

,

Plastic Panel M12 Waterproof Connector

Basic Infomation
Place of Origin: Guangdong China
Brand Name: Rigoal
Certification: ISO9001/ROHS/IP68/CE/REACH
Model Number: M12 - PM
Payment & Shipping Terms
Packaging Details: 46*30*30
Delivery Time: 3-20day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000pcs/month
Product Description

M12 A code 5 pin plastic panel mount with wire waterproof female connector



M12 metal panel mount is one of our best-selling products and our manufacturing process is very mature. In order to meet the needs of more customers,we began to sell plastic panel mount,it can be used as a substitute for metal panel,but the price will be more favorable. For product description, we still use metal panel as an example, but most of them also apply to plastic panel,thanks for your check.
M12 panel mount connector Product Specification
Place of Origin
China

Guangdong
Brand
Rigoal
Series
M8/M12
Pin
3 4 5 8 12 17 pin(M12)
3 4 5 6 8 pin(M8)
Coding
A B D coding
Gender
female/male
Type
Molded/panel mount/Assembly
Rated current
1A for 12 pin/2A for 8 pin/4A for 3 4 5 17 pin(M12)
1.5A for 8 pin/2A for 6 pin/3A for 5 pin/4A for 3 4 pin(M8)
Rated voltage
30V for 8 12 pin/60V for 5 pin/250V for 3 4 17 pin(M12)
30V for 5 6 8 pin/60V for 3 4 pin(M8)
Operating Temperature
-25°C~80°C
Degree of protection
IP67/IP68
Connector locking system
Screw/Solder/PCB/wire
Mechanical operation
>500 mating cycles
Contact resistance
≤10mΩ
Material of connector
CuZn,PA,TPU
Contact plating
Au(gold plating)
Material of housing
Brass/Zinc diecasting nickel plated
Filling material
Epoxy resin
Custom
Acceptable
M12 panel mount connector Products Description

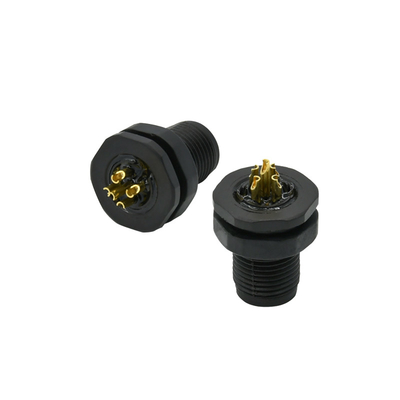

A Code M12 Waterproof Female Connector 5 Pin Plastic Panel Mount With Wire 0



Gold-Plated Terminals Hardening Treatment Stable Performance Unique Designed >500 cycles mating endurance waterprood rating(IP67/IP68) Durable and Anti-corrosion Perfect O-ring Tightened Sealing Excellent Performance
The M12 Panel Receptacle series provides three kinds of mount choice: PCB Mount, Panel Mount & wire, and have three features of mount: Front Mount, Back Mount, 4 Hole Flange. According to IEC 61076-2-101/104 standard, complying with IP67 protection level.

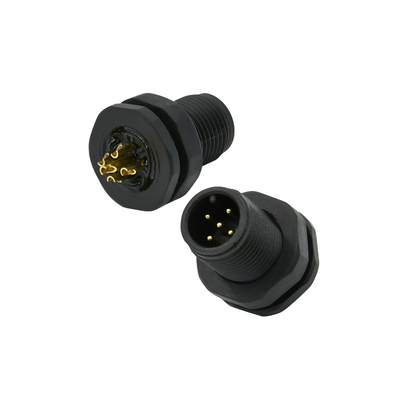

A Code M12 Waterproof Female Connector 5 Pin Plastic Panel Mount With Wire 1

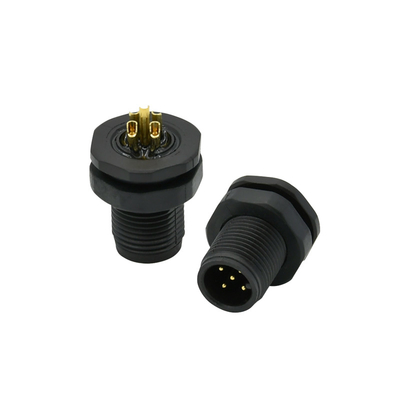

A Code M12 Waterproof Female Connector 5 Pin Plastic Panel Mount With Wire 2









Q1: Are you a factory?
A: Yes, we are the professional manufacturer of connectors and precision mold since 2013

Q2: How about the certificates?
A:ISO 9001, CE, RoHS, IP68 etc.

Q3: How about the payment terms?

A: we can do 30% deposit , 70% deposit before shipment and balance against shipment

Q4: How long is the delivery time?
A: We ensure the fast delivery. Generally, it will take 2-5 days for small order or the stock goods; 10 to 15 for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.

Q5:why choose us?
one of largest connector factory in asia ;
more than 10 years of export experience;
good quality &factory directly low price;
more than 10 years manufacture experience accepted OEM&ODM service

Q6:what can you buy from us?
waterproof cables, waterproof connectors, power connectors, signal connectors, network connectors, etc., such as, M5,
M8,M12,M16,M23, D-SUB, RJ45, AISG,SP series connectors, etc.

Q7: what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,CPT,DDP,DDU;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
