About M12 connector
M12 connector offers many different cable connectors, panel mounted receptacles, field attachable/installable connectors and its accessories. Connectors have industry- standard A,B,D,X,S,T,K,L coding, 3 4 5 8 12 17 pins,for both screw-locking,solder-locking and quick-locking system.
1. Angle or straight plug,M12 T and Y shape cable.
2. PUR or PVC m12 connector cable material
3. Contact plating:Au(gold plating)
4. Mechanical operation: >500 mating cycles
5. Contact resistance: ≤10mΩ
6. Flexible: connectors for on-site assembly,extremely high winding and unwinding strength
7. Safe use in the field,because of a high degree of protection,high tensile strength, abrasion and notch resistance
8. Cable jacket with different colors,overmolded color can be customized.
9. IEC Standard
What is the application prospect of M12 connector
M12 connectors will be more suitable for the Industrial Internet of Things (IIoT).
The IIoT is a real-time data connection, driven by processing and transmitting data at faster speeds, on progressively smarter and smaller machines. The value of the IIoT goes beyond data collection and transmission, it benefits including but not limited to the ability to identify disruptions, discovering unused capacity, reducing maintenance costs and downtime, improving safety, and maximizing overall equipment effectiveness.
M12 connectors' advantages in the speed, reliability, and ruggedness, etc perfect match the smart factories' demand.

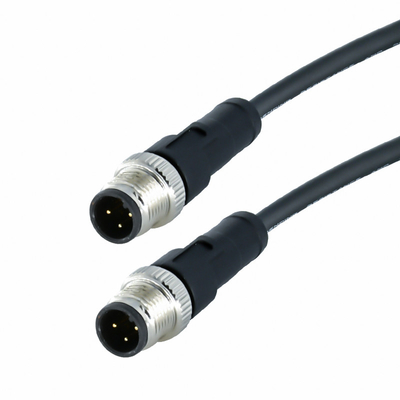

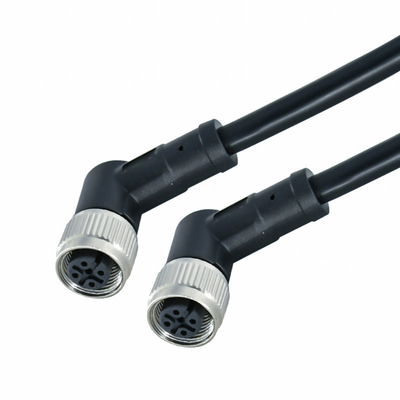

M12 connector's picture show
M12 connector's applications:
● Sensors, actuators, encoders, motors, industrial cameras, ships and other equipment
● Factory automation process control
● Packaging label printing equipment
● Fieldbus: DeviceNet, CANopen, Profibus, Ethernet,
● Ship electronics NMEA 2000, rail transit
● Industrial equipment
● EMS circuit board assembly
● Industrial safety grating light curtain
● Equipment batteries, semiconductors
● LED outdoor display, outdoor LED lighting
Packing & Shipping
Packing 1.Put each m12 connector in one transparent bag and lable it, then put in a carton |
Shipping The packaging pictures are for reference only,and the specific packaging depends on the product style and quantity. |
Customer evaluation
FAQ
Q1: Are you a factory? |
Q2: what can you buy from us? M5,M8,M9,M12,M16,M23, USB,D-SUB, L20,RJ45, M12 to rj45,AISG,7/8'',SP connectors,solenoid valve etc. |
Q3: How long is the delivery time? |
Q4: How can you guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; |
Q5: How about the payment terms? A: we can do 30% deposit , 70% deposit before shipment and balance against shipment |
Q6:How to purchase M12 connectors from Rigoal? 1. Please send us the specification or drawing for the items with quantity and performance requirements. 2. We will offer you a detailed quote with lead time, package, payment term for confirm, normally in 3 days. |
Q7:why choose us? - Fast Samples delivery service - Quote within 24 hours - Professional teams with RD & Sales for your projects - Special service for your urgent case - Customer is always our focus. |
Any question,you are welcome to contact us any time!
