About M12 connector
M12 connector offers many different cable connectors, panel mounted receptacles, field attachable/installable connectors and its accessories. Connectors have industry- standard 3 4 5 8 12 17 pins and A,B,D,X,S,T,K,L coding,for both screw-locking,solder-locking and quick-locking system.
1. Straight or 90degree plug,M12 T and Y shape cable.
2. PUR or PVC or customized m12 connector cable material
3. Contact resistance: ≤10mΩ
4. Contact plating:Au(gold plating)
5. Mechanical operation: >500 mating cycles
6. Flexible: connectors for on-site assembly,extremely high winding and unwinding strength
7. Safe use in the field,because of a high degree of protection,high tensile strength, abrasion and notch resistance
8. Cable jacket with different colors,overmolded color can be customized.
9. IEC Standard
The advantages of M12 connectors are listed below for you:
1. Promote the coordination ability
The application of M12 connectors enables technical engineers to have greater coordination ability when designing solutions and integrating new products,as well as using components to form system software.
2. Improve the machining process
The M12 connector simplifies the whole process of the assembly line of electronic equipment and the whole process of mass production.
3.Beneficial for upgrading
With the advancement of technology, components can be upgraded when equipped with M12 connectors, replacing old components with new and more robust components.
4.Easy to maintenance

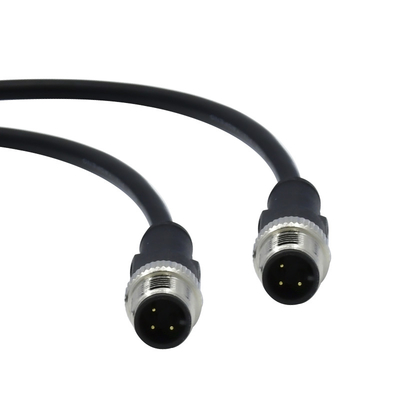

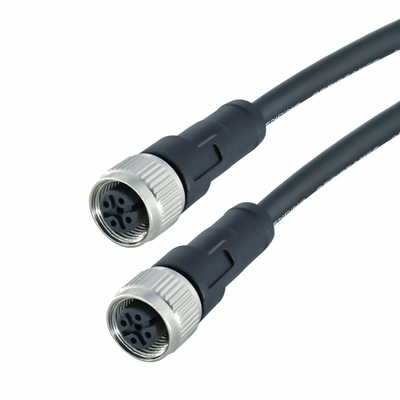

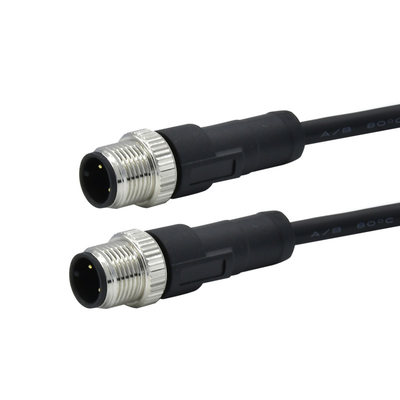

M12 connector's picture show
M12 connector's applications:
● Industrial equipment
● EMS circuit board assembly
● Industrial safety grating light curtain
● Equipment batteries, semiconductors
● LED outdoor display, outdoor LED lighting
● Factory automation process control
● Packaging label printing equipment
● Fieldbus: DeviceNet, CANopen, Profibus, Ethernet,
● Ship electronics NMEA 2000, rail transit
● Sensors, actuators, encoders, motors, industrial cameras, ships and other equipment
Shipping & Packing
|
Shipping The packaging pictures are for reference only,and the specific packaging depends on the product style and quantity. |
|
Packing 1.Put each m12 connector in a transparent bag,lable it, then put in a carton |
Customer feedback
FAQ
|
Q1: Are you a factory? |
| Q2: what can you buy from us? M5,M8,M9,M12,M16,M23, USB,D-SUB, L20,RJ45, M12 to rj45,AISG,7/8'',SP connectors,solenoid valve etc. |
|
Q3: How long is the delivery time? |
| Q4: How can you guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; |
| Q5: How about the payment terms? A: we can do 30% deposit , 70% deposit before shipment and balance against shipment |
| Q6:How to purchase M12 connectors from Rigoal? 1. Please send us the specification or drawing for the items with quantity and performance requirements. 2. We will offer you a detailed quote with lead time, package, payment term for confirm, normally in 3 days. |
| Q7:why choose us? - Fast Samples delivery service - Quote within 24 hours - Professional teams with RD & Sales for your projects - Special service for your urgent case - Customer is always our focus. |
Any question,you are welcome to contact us any time!
