Screw Panel Mounting Metal Plastic M12 4 5 Contacts Waterproof Sensor M12 Receptacles Connectors
Features Gallery Product Description Request A Quote
Features
Specifications
Coding: A B D X Coding
M12 Pin: 3 4 5 8 12 17 Pin
Type: Solder/Pcb/With Wire
Material Of Connector: CuZn,TPU
Operating Temperature: -25°C~85°C
Degree Of Protection: IP67 / IP68
Gender: Male / Female
Rated Current: 1A For 12 Pin/2A For 8 Pin/4A For 3 4 5 17 Pin
Rated Voltage: 30V For 8 12 Pin/60V For 5 Pin/250V For 3 4 17 Pin
Custom: Acceptable
High Light:

Screw Panel Mounting M12 Receptacles Connectors

,

5pin Plastic Panel Mount Connector

,

M12 4pin Panel Mount Connector

Basic Infomation
Place of Origin: Guangdong China
Brand Name: Rigoal
Certification: CE;ISO9001;IP68;ROHS
Model Number: m12 plastic mounting
Payment & Shipping Terms
Packaging Details: Put them in one transparent bag and lable it, then put in a carton
Delivery Time: 2 to 15 working days
Payment Terms: L/C, T/T, D/A, Western Union, D/P, MoneyGram
Supply Ability: 100 000 per month
Product Description



Customized cable end solutions
Stripped and tined per requirements
Crimpped with terminals and housing
Add other connectors
Connected with customized parts

Basic information:

M12 4pin 5pin plastic panel mount connector

Circular M12 connector with M12*1.0 M16*1.5 screw locking

Waterproof rating is IP67 / IP68

Circular M12 connector according to IEC 61076-2-101





Electrical data:

Series:M12 connector

Coded:A coded

Contact resistance:≤10mΩ

Mechanical operation:>500 mating cycles

Material of housing:Brass/Zinc diecasting nickel plated



Material of each part:

Screw / Nut: Brass with nickel plated

Waterproof O-ring: FKM

Glue:Black epoxy resin

Wire Jacker: PVC

M12 connector Body:TPU

Male Contacts: Brass with gold plated

Female Contacts: Phosphorus copper with gold plated

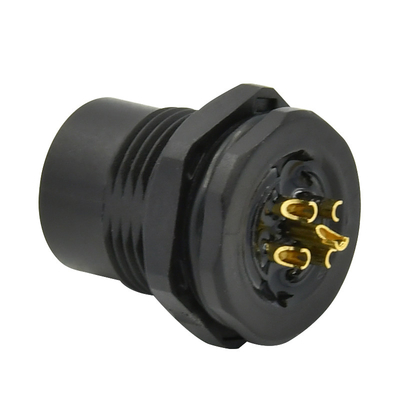

Screw Panel Mounting Metal Plastic M12 4 5 Contacts Waterproof Sensor M12 Receptacles Connectors 0

Benefits:
Nickel plated brass
High durability, corrosion resistance, oxidation resistance
Strong waterproof performance

M12 power connectors widely used to provide power for model,meet the requirement of high current,high voltage and high protection.
Be small,easy to assembly,supported 250V/4A,IP67 and suitable for various conduction.



M12 connector's Features
1. Stable and reliable, not affected by the external environment (such as temperature, humidity)
2.Waterproof and moisture-proof, to ensure the stability of the circuit, M12 surface with a layer of coating (anti-corrosion, Oxidation proof)
3.Oil resistance and welding resistance, reduce wiring so that the equipment can be quickly put into operation, good mechanical and electrical performance to ensure stability and reliability, process related operation and function indicator LED can realize fault diagnosis, very little downtime and maintenance time



Pictures display:

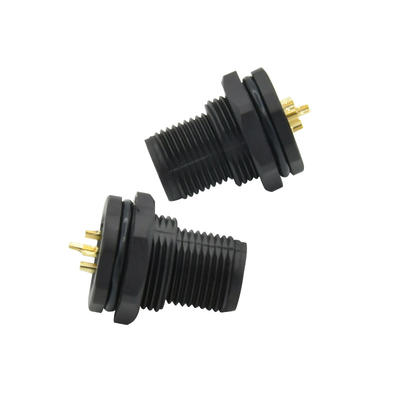

Screw Panel Mounting Metal Plastic M12 4 5 Contacts Waterproof Sensor M12 Receptacles Connectors 1

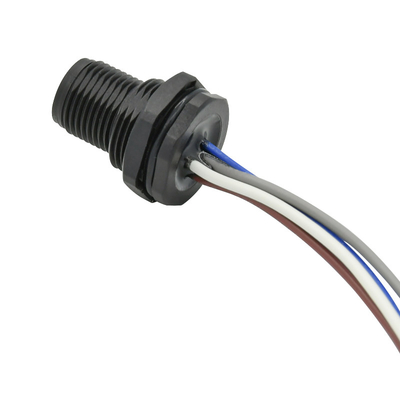

Screw Panel Mounting Metal Plastic M12 4 5 Contacts Waterproof Sensor M12 Receptacles Connectors 2

Screw Panel Mounting Metal Plastic M12 4 5 Contacts Waterproof Sensor M12 Receptacles Connectors 3

Screw Panel Mounting Metal Plastic M12 4 5 Contacts Waterproof Sensor M12 Receptacles Connectors 4

Screw Panel Mounting Metal Plastic M12 4 5 Contacts Waterproof Sensor M12 Receptacles Connectors 5





Packing & Shipping

Screw Panel Mounting Metal Plastic M12 4 5 Contacts Waterproof Sensor M12 Receptacles Connectors 6

Panel mount without wire:

1.Put dozens of pieces on a tray
2.Wrap the tray tightly with protective film
3.Put the wrapped tray in the carton
4.According to customer requirement

Panel mount with wire:

1.About 50 pieces in one transparent bag

2.Add the lable then put in a carton
3.According to customer requirement

Screw Panel Mounting Metal Plastic M12 4 5 Contacts Waterproof Sensor M12 Receptacles Connectors 7

We will choose different transportation modes according to customers' needs,which more convenient ,which we will choose! Usually is DHL ,Fedex ,TNT,UPS ,Air shipping ,sea shipping ,training shipping etc.
If the quantity is not big or you need it urgently,we advise you to ship them by Express shch as DHL,FEDEX,UPS,TNT etc.
If your quantity is large,we advise you to use Sea shipping or Air shipping.





FAQ

Q1: Are you a factory?
A: Yes, we are the professional manufacturer of connectors and precision mold since 2013
Q2: What can we buy from you?
A:Waterproof cables, waterproof connectors, power connectors, signal connectors, network connectors, LED connector etc., such as M5,M8,M9,M12,M16,M23, USB,D-SUB, L20,RJ45, M12 to rj45,AISG,7/8'',SP connectors,solenoid valve etc.
Q3: How to purchase M12 connectors from Rigoal?
A:1. Please send us the specification or drawing for the items with quantity and performance requirements.
2. We will offer you a detailed quote with lead time, package, payment term for confirm, normally in 3 days.
Q4: How can you guarantee quality?
A: Always a pre-production sample before mass production;
A: Always final Inspection before shipment;
Q5: How long is the delivery time?
A: We ensure the fast delivery. Generally, it will take 2-5 days for small order or the stock goods; 10 to 15 for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.
