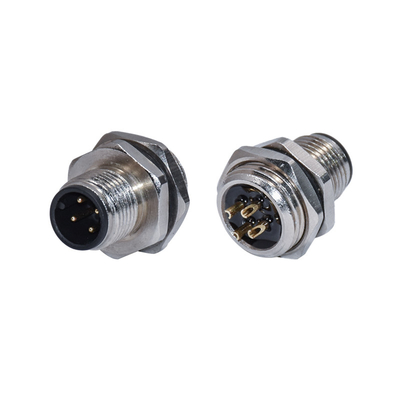

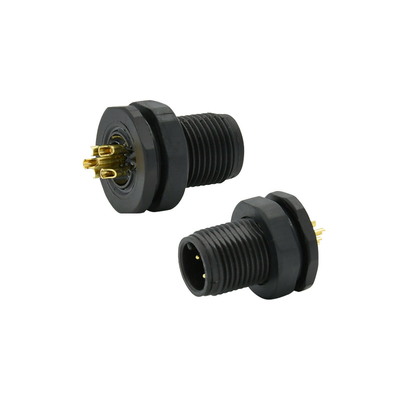

Industrial M12 3 - 17 Pin A B Code Sensor Solder Pcb Screw Thread M8 M12 Wall Mount Connector

50 pieces
MOQ
negotiable
Price
Industrial M12 3 - 17 Pin A B Code Sensor Solder Pcb Screw Thread M8 M12 Wall Mount Connector
Features Gallery Product Description Request A Quote
Features
Specifications
Interface: A B D X Coding
M12 Pin: 3 4 5 8 12 17 Pin
Type: Rear/front Lock
Contact Plating: Au(gold Plating)
Operating Temperature: -40°C~85°C
Degree Of Protection: IP67 / IP68
Rated Current: 1A For 12 Pin/2A For 8 Pin/4A For 3 4 5 17 Pin
Rated Voltage: 30V For 8 12 Pin/60V For 5 Pin/250V For 3 4 17 Pin
Mechanical Operation: >500 Mating Cycles
Application: Automotive;Electrical;
High Light:

IEC Standard M12 Wall Mount Connector

,

Custom Length M12 Wall Mount Connector

,

17 pin Screw Thread M12 Connector

Basic Infomation
Place of Origin: Guangdong China
Brand Name: Rigoal
Certification: CE;IP68;ROHS;ISO9001
Model Number: m12 wall mounting
Payment & Shipping Terms
Packaging Details: Put them in one transparent bag and lable it, then put in a carton
Delivery Time: 2 to 15 working days
Payment Terms: D/A, Western Union, D/P, MoneyGram,L/C, T/T
Supply Ability: 100 000 per month
Product Description



The M12 Panel Receptacle series provides three kinds of mount choice: PCB Mount, Panel Mount & wire,

and have three features of mount: Front Mount, Back Mount, 4 Hole Flange.
According to IEC 61076-2-101/104 standard, complying with IP67 protection level.

M12 connector basic information:

Product Pin:3 4 5 6 8 12 17 pin
A B C D X T S L K M Y coded
Molded & Panel mount & Assembly type & T/Y adapter & Cap
Shielded available
Custom length
PVC/PUR or custom cable material
Rear/Front/Flange panel mount
Screw/Solder/PCB/With pigtail contact way
IP67/IP68
IEC Standard

Industrial M12 3 - 17 Pin A B Code Sensor Solder Pcb Screw Thread M8 M12 Wall Mount Connector 0

Material of m12 connector each part:

Screw / Nut: Brass with nickel plated

Waterproof O-ring: FKM

Glue:Black epoxy resin

Wire Jacker: PVC

M12 connector Body:TPU

Male Contacts: Brass with gold plated

Female Contacts: Phosphorus copper with gold plated



M12 connector's Benefits

1. Safe use in the field,because of a high degree of protection,high tensile strength, abrasion and notch resistance
2.Waterproof rating is IP67/IP68, protected from dust and water during immersion,resistant to many oils and chemical.
3.M12 power connectors widely used to provide power for model,meet the requirement of high current,high voltage and high protection.
4.Be small,easy to assembly,supported 250V/4A,IP67 and suitable for various conduction.
5.Can be easily connected to proximity switches,photoelectric barries,flow moitoring devices and field bus components sensor devices and actuator devices.Satisfy all the requirements of sensor devices and actuator devices in automation technology.
6.Identify disruptions, discovering unused capacity, reducing maintenance costs and downtime, improving safety, and maximizing overall equipment effectiveness.
7.Makes the design scheme and processing process more convenient and flexible,also reduces the cost of manufacturing and maintenance.



M12 connector display:

Industrial M12 3 - 17 Pin A B Code Sensor Solder Pcb Screw Thread M8 M12 Wall Mount Connector 1

Industrial M12 3 - 17 Pin A B Code Sensor Solder Pcb Screw Thread M8 M12 Wall Mount Connector 2

Industrial M12 3 - 17 Pin A B Code Sensor Solder Pcb Screw Thread M8 M12 Wall Mount Connector 3

Industrial M12 3 - 17 Pin A B Code Sensor Solder Pcb Screw Thread M8 M12 Wall Mount Connector 4

Industrial M12 3 - 17 Pin A B Code Sensor Solder Pcb Screw Thread M8 M12 Wall Mount Connector 5





Packing & Shipping

Industrial M12 3 - 17 Pin A B Code Sensor Solder Pcb Screw Thread M8 M12 Wall Mount Connector 6

Panel mount without wire:

1.Put dozens of pieces on a tray
2.Wrap the tray tightly with protective film
3.Put the wrapped tray in the carton
4.According to customer requirement

Panel mount with wire:

1.About 50 pieces in one transparent bag

2.Add the lable then put in a carton
3.According to customer requirement

Industrial M12 3 - 17 Pin A B Code Sensor Solder Pcb Screw Thread M8 M12 Wall Mount Connector 7

Usually is DHL ,Fedex ,TNT,UPS ,Air shipping ,sea shipping ,training shipping etc.

According to customers' needs,which more convenient ,which we will choose!





FAQ

Q1: What can we buy from you?
A:Waterproof cables, waterproof connectors, power connectors, signal connectors, network connectors, LED connector etc., such as M5,M8,M9,M12,M16,M23, USB,D-SUB, L20,RJ45, M12 to rj45,AISG,7/8'',SP connectors,solenoid valve etc.

Q2: Are you a factory?
A: Yes, we are the professional manufacturer of connectors and precision mold since 2013

Q3: How can you guarantee quality?
A: Always a pre-production sample before mass production;
A: Always final Inspection before shipment;

Q4: How to purchase M12 connectors from Rigoal?
A:1. Please send us the specification or drawing for the items with quantity and performance requirements.
2. We will offer you a detailed quote with lead time, package, payment term for confirm, normally in 3 days.
Q5: How long is the delivery time?
A: We ensure the fast delivery. Generally, it will take 2-5 days for small order or the stock goods; 10 to 15 for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.
