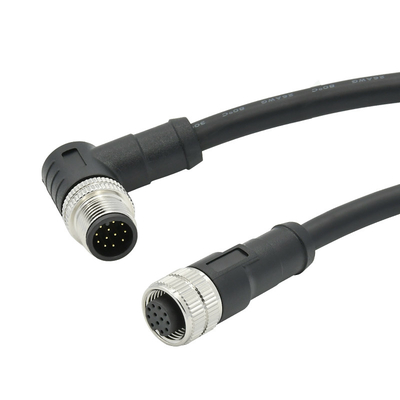

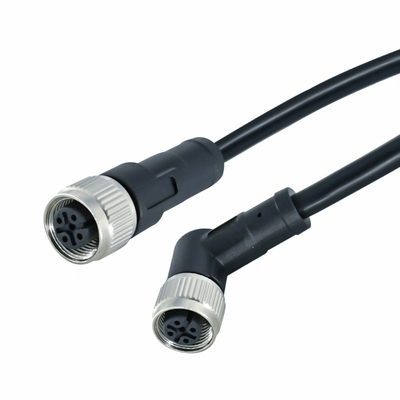

M12 Plugs 3 - 17 Pins Cores Male Female Outside M12 Pur Sensor Cable Connectors

10 pieces
MOQ
negotiable
Price
M12 Plugs 3 - 17 Pins Cores Male Female Outside M12 Pur Sensor Cable Connectors
Features Gallery Product Description Request A Quote
Features
Specifications
Coded: A B D X Coded
Cores: 3 4 5 8 12 17 Cores
Degree Of Protection: IP68/IP67
Rated Current: 1A For 12 Pin/2A For 8 Pin/4A For 3 4 5 17 Pin
Rated Voltage: 30V For 8 12 Pin/60V For 5 Pin/250V For 3 4 17 Pin
Shape: Elbow / Straight
Gender: Female / Male
Type: Shielded /Unshielded
Material Of Connector: PVC Or PUR
Cable AWG: 26AWG-22AWG
High Light:

Oil Resistance Male Female M12 Connectors

,

ROHS Approved Waterproof M12 Connector

,

M12 Pur Sensor Cable Connectors

Basic Infomation
Place of Origin: Shenzhen China
Brand Name: Rigoal
Certification: ROHS;IP68;ISO9001;CE
Model Number: m12 connectors cables
Payment & Shipping Terms
Packaging Details: Put them in one transparent bag and lable it, then put in a carton
Delivery Time: 3 days to 20 days;According to buyer's requirement
Payment Terms: TT, D/A, D/P, Paypal,D/P, L/C,Western Union,MoneyGram
Supply Ability: 100 000 per month
Product Description





Waterproof M12 connector,fix screw with self-locking threaded joint,waterproof IP67 IP68 M12 cable connector.
Protected from dust and water during immersion,resistance to many oils and chemical.
Can be easily connected to proximity switches,photoelectric barries,flow moitoring devices and field bus components sensor devices and actuator devices.
Satisfy all the requirements of sensor devices and actuator devices in automation technology.



Different combination and color can be chosen

Choose one with or without LED
M12 Plugs 3 - 17 Pins Cores Male Female Outside M12 Pur Sensor Cable Connectors 0
M12 Plugs 3 - 17 Pins Cores Male Female Outside M12 Pur Sensor Cable Connectors 1
M12 Plugs 3 - 17 Pins Cores Male Female Outside M12 Pur Sensor Cable Connectors 2





Shielded and unshielded are available
According to your actual application,we can provide shielded or unshielded cable
M12 Plugs 3 - 17 Pins Cores Male Female Outside M12 Pur Sensor Cable Connectors 3


Product Structure detailed

Bright and full,firm connection,stable conductivity
M12 Plugs 3 - 17 Pins Cores Male Female Outside M12 Pur Sensor Cable Connectors 4

Wiring definition of m12 connector
M12 Plugs 3 - 17 Pins Cores Male Female Outside M12 Pur Sensor Cable Connectors 5M12 Plugs 3 - 17 Pins Cores Male Female Outside M12 Pur Sensor Cable Connectors 6

Usually we use PVC or PUR material for the cable:
PVC(Polyvinyl chloride) material has good mechanical properties and excellent dielectric properties, but it is not stable to light and heat. Its physical and mechanical properties will decline rapidly when it is above 100 ℃ or exposed to sunlight for a long time.
PUR(Polyurethane) material has excellent oil resistance, good toughness, wear resistance, cold resistance (low temperature resistance), water resistance, aging resistance, acid and alkali resistance, weather resistance, long service life, UV resistance, energy release and many other excellent functions, and is suitable for oil contamination, extremely harsh low temperature environment. But its price is also much more expensive than PVC


Packing & Shipping:

Packing

1.Put each m12 connector in one transparent bag and lable it, then put in a carton
2.OEM package is available
3.According to customer requirement

Shipping
If the quantity is not big or you need it urgently,we advise you to ship them by Express shch as DHL,FEDEX,UPS,TNT etc.
If your quantity is large,we advise you to use Sea shipping or Air shipping.

The packaging pictures are for reference only,and the specific packaging depends on the product style and quantity.



M12 Plugs 3 - 17 Pins Cores Male Female Outside M12 Pur Sensor Cable Connectors 7

M12 Plugs 3 - 17 Pins Cores Male Female Outside M12 Pur Sensor Cable Connectors 8





Customer evaluation



M12 Plugs 3 - 17 Pins Cores Male Female Outside M12 Pur Sensor Cable Connectors 9



FAQ

Q1: Are you a factory?
A: Yes, we are the professional manufacturer of connectors and precision mold since 2013,welcome to visit our factory.

Q2: what can you buy from us?
M5,M8,M9,M12,M16,M23, USB,D-SUB, L20,RJ45, M12 to rj45,AISG,7/8'',SP connectors,solenoid valve etc.

Q3: How long is the delivery time?
A: Usually within 2-5 days for small order or the stock goods; 10 to 15 for mass production after receiving your advance payment.

Q4: How can you guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q5: How about the payment terms?
A: we can do 30% deposit , 70% deposit before shipment and balance against shipment

Q6:How to purchase M12 connectors from Rigoal?
A:Please send us the specification or drawing for the items with quantity and performance requirements.

What we need to know for the common type:

1.Which code

2.How many pins

3.Male/female

4.Straight/angle

5.Shielded/unshielded

6.How long

7.PVC/PUR

8.Quantity

Q7:why choose us?
- Fast Samples delivery service
- Quote within 24 hours
- Professional teams with RD & Sales for your projects
- Special service for your urgent case
- Customer is always our focus.



The M12 connector is a component that electronic engineering professionals frequent access when working, and it is also an indispensable component in electronic products. If you are interested in it, please send an inquiry to us. Rigoal Connector is committed to being your best connector supplier.
