The M12 circular connector is a high standard connector that meets the European Union standard. With high signal integrity and excellent performance.
The M12 connector, which combines power and data cables, features reduced space occupancy and lower installation and cost for process automatic control and industrial applications,automation equipment,electronics, electronic instrumentation,sensors,commercial transportation,and military/aviation applications and so on.
M12 connector basic information:

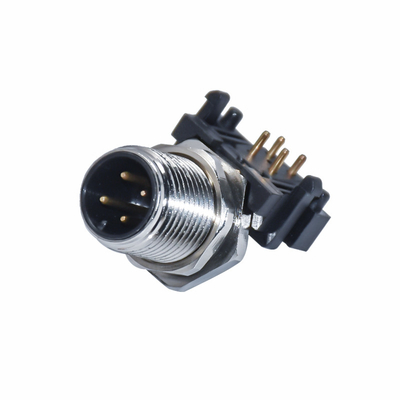

The M12 Panel Receptacle series provides three kinds of mount choice: PCB Mount, Panel Mount & wire, and have three features of mount: Front lock Mount, Rear lock Mount, 4 Hole Flange. According to IEC 61076-2-101/104 standard, complying with IP67 protection level.
We can support A B C D X S K L and so on interface standards and 3 4 5 8 12 17 pins count customization

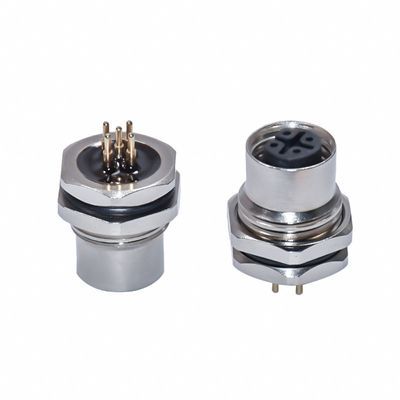

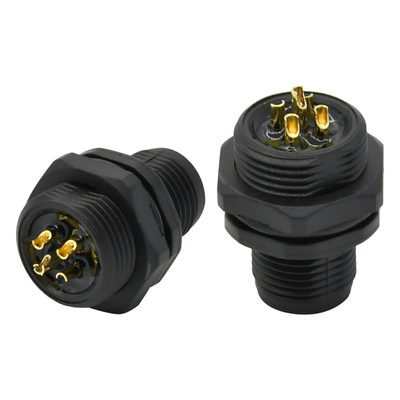

M12 metal panel mount is one of our best-selling products and our manufacturing process is very mature.In order to meet the needs of more customers,we began to sell plastic panel mount,it can be used as a substitute for metal panel,but the price will be more favorable.
Material of m12 connector each part:
M12 connector Body:TPU
Male Contacts: Brass with gold plated
Female Contacts: Phosphorus copper with gold plated
Screw / Nut: Brass with nickel plated
Waterproof O-ring: FKM
Glue:Black epoxy resin
Wire Jacker: PVC
M12 connector's Benefits
1. Promote the coordination ability
The application of M12 connectors enables technical engineers to have greater coordination ability when designing solutions and integrating new products,as well as using components to form system software.
2. Improve the machining process
The M12 connector simplifies the whole process of the assembly line of electronic equipment and the whole process of mass production.
3.Beneficial for upgrading
With the advancement of technology, components can be upgraded when equipped with M12 connectors, replacing old components with new and more robust components.
4.Easy to maintenance
When equipped with an M12 connector,the component can be quickly replaced if it is invalid.
M12 connector display:
Packing & Shipping
|
Panel mount without wire: 1.Put dozens of pieces on a tray and wrap it tightly with protective film |
|
Panel mount with wire: 1.About 50 pieces in one transparent bag,add the label then put in a carton |
|
Usually is DHL ,Fedex ,TNT,UPS ,Air shipping ,sea shipping ,training shipping etc. According to customers' needs,which more convenient ,which we will choose! |
FAQ
|
Q1: What can we buy from you? |
| Q2: Are you a factory? A: Yes, we are the professional manufacturer of connectors and precision mold since 2013 |
|
Q3: How can you guarantee quality? |
| Q4: How to purchase M12 connectors from Rigoal? A:1. Please send us the specification or drawing for the items with quantity and performance requirements. 2. We will offer you a detailed quote with lead time, package, payment term for confirm, normally in 3 days. |
| Q5: How long is the delivery time? A: We ensure the fast delivery. Generally, it will take 2-5 days for small order or the stock goods; 10 to 15 for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details. |
