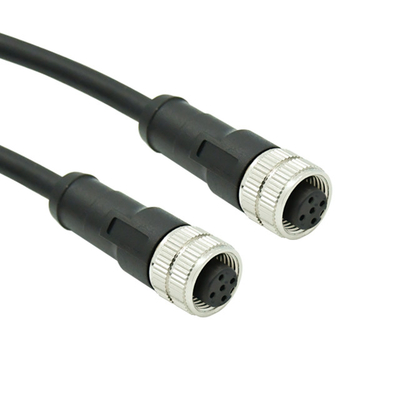

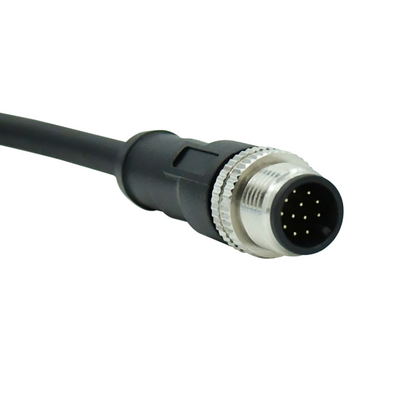

The M12 Waterproof Connector is designed to protect against dust, dirt, and water from entering the electronic circuits. It is a reliable waterproof connector for applications where waterproof performance is necessary. With its temperature range of -25℃~+85℃, it is suitable for both indoor and outdoor applications. Its degree of protection is rated at IP68/IP67, making it a highly durable waterproof connector. The material of the connector is PVC or PUR, making it resistant to corrosion and wear. It has a rated current of 1A for 12 pin, 2A for 8 pin, and 4A for 3 4 5 17 pin, making it a reliable and efficient connector. This waterproof connector is a great choice for any application where waterproof protection is needed.
| Parameter | Value |
|---|---|
| Rated voltage | 30V For 8 12 Pin/60V For 5 Pin/250V For 3 4 17 Pin |
| Number of Contacts | 4 |
| Rated current | 1A For 12 Pin/2A For 8 Pin/4A For 3 4 5 17 Pin |
| Temperature Range | -25℃~+85℃ |
| Connector Type | Cable Connector |
| Name | M12 Waterproof Cable |
| Shape | Elbow / Straight |
| Degree of protection | IP68/IP67 |
| Cores | 3 4 5 8 12 17 Cores |
| Material of connector | PVC Or PUR |
The M12 Waterproof Connector is widely used in various industries due to its certified waterproof design, which is rated at IP68, CE, and ROHS. It is especially suitable for outdoor applications, as it can withstand harsh environments and provide reliable and safe connections. The M12 Waterproof Connector features an elbow or straight shape and is rated at 250V for 3, 4, 17 pin, 30V for 8, 12 pin, and 60V for 5 pin. The minimum order quantity is 100 pcs and the price is negotiable. The connector is supplied in a box and can be delivered within 7-14 days. Payment terms are according to customer’s requirement and the supply ability is 1000000pcs.
Brand Name: M12 waterproof cable
Model Number: M12
Place of Origin: China
Certification: CE, IP68, ROHS
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: Box
Delivery Time: 7-14 days
Payment Terms: According to customer's requirement
Supply Ability: 1000000pcs
Connector Gender: Male/Female
Voltage Rating: 250V
Rated current: 1A for 12 Pin/2A for 8 Pin/4A for 3 4 5 17 Pin
Material of connector: PVC or PUR
Number of Contacts: 4
Connector Waterproof M12, Waterproof M12 Connector, M12 Waterproof Connector are all available here. This M12 Waterproof Connector is certified with CE, IP68, ROHS, and comes with rated current of 1A for 12 Pin/2A for 8 Pin/4A for 3 4 5 17 Pin. It is made of PVC or PUR material and has 4 contacts. Minimum order quantity is 100 pieces.
