Waterproof M12 Panel Mount Connector IP67 A B D Code 3-17 Pin

10
MOQ
$1.95-3.97
Price
Waterproof M12 Panel Mount Connector IP67 A B D Code 3-17 Pin
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Adapter
Gender: Female/Male
Number Of Cores: 3/4/5/8/12/17 Pin
Mounting Type: Soldering/PCB Termination
Locking Way: Front/Rear Fastened
Protection Level: IP67/IP68 Waterproof
Rated Voltage: 250V For 3/4 Pin, 60V For 5/6pin, 30V For 8/12/17pin
Rated Current: 250V For 3/4 Pin, 60V For 5/6pin, 30V For 8/12/17pin
Operating Temperature: -25℃~85 ℃
Contact Material: Au(gold Plating)
Housing Material: Brass/Zinc Diecasting Nickel Plated
Mechanical Operation: >500 Mating Cycles
Connector Series: M12
Screw Locking: M12*1.0/M16*1.0
Color: Brass/Zinc Or Customized
Highlight:

M12 waterproof panel mount connector

,

IP67 M12 connector 3-17 pin

,

M12 waterproof connector A B D code
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Rigoal
Model Number: M12 Panel
Payment & Shipping Terms
Product Description

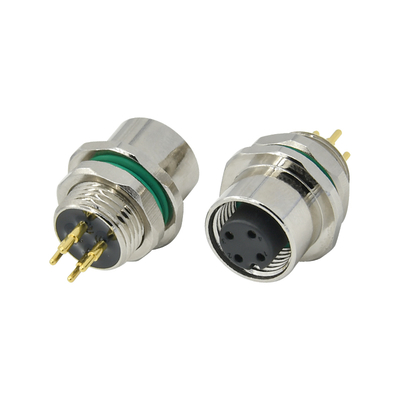

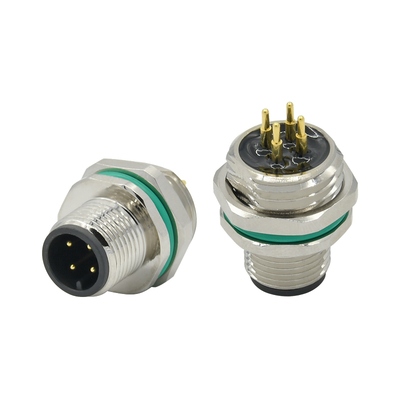

Waterproof IP67 Sensor Connector - M12 Panel Mount
Product Overview
High-quality M12 waterproof panel mount connector with IP67/IP68 protection rating, designed for automotive, sensor, and electrical equipment applications. Available in multiple pin configurations and coding types.
Waterproof M12 Panel Mount Connector IP67 A B D Code 3-17 Pin 0
Key Features
  • M12 Panel mount waterproof according to IEC 61076-2-104
  • Circular connector with M12*1.0/M16*1.0 screw locking
  • Waterproof rating: IP67/IP68

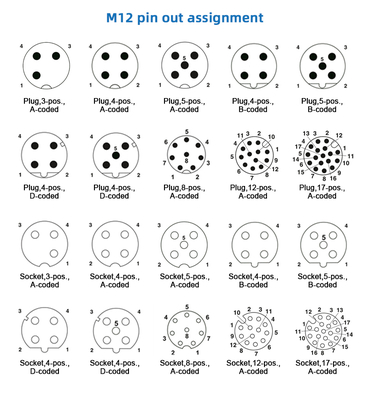

  • Coding options: A/B/D
  • Available in female and male versions
  • Panel mount design
  • Material options: Brass/Zinc or customized
  • Operating temperature: -25℃~+85℃
Technical Specifications
Attribute Value
Type Adapter
Application Automotive/Sensor/Electrical Equipment
Gender Female/Male
Number of cores 3/4/5/8/12/17 pin
Mounting Type Soldering/PCB termination
Locking way Front/Rear fastened
Protection level IP67/IP68 Waterproof
Rated Voltage 250V (3/4 pin), 60V (5/6pin), 30V (8/12/17pin)
Rated Current 250V (3/4 pin), 60V (5/6pin), 30V (8/12/17pin)
Contact material Au (gold plating)
Housing material Brass/Zinc diecasting nickel plated
Mechanical operation >500 mating cycles
Operating Temperature -25℃~85 ℃
Certificate ISO9001/CE/ROHS
Waterproof M12 Panel Mount Connector IP67 A B D Code 3-17 Pin 1 Waterproof M12 Panel Mount Connector IP67 A B D Code 3-17 Pin 2 Waterproof M12 Panel Mount Connector IP67 A B D Code 3-17 Pin 3 Waterproof M12 Panel Mount Connector IP67 A B D Code 3-17 Pin 4 Waterproof M12 Panel Mount Connector IP67 A B D Code 3-17 Pin 5 Waterproof M12 Panel Mount Connector IP67 A B D Code 3-17 Pin 6
Packaging & Delivery
Each unit is packaged in a small waterproof PE bag, then placed in a carton (approximately 200 pieces per carton, size: 46×30×30 cm). OEM/ODM packaging options available upon request.
Waterproof M12 Panel Mount Connector IP67 A B D Code 3-17 Pin 7 Waterproof M12 Panel Mount Connector IP67 A B D Code 3-17 Pin 8
About Rigoal
Founded in 2013, Rigoal specializes in producing various waterproof cables and connectors including M8, M12, M16, M23, and D-SUB types. Our products are widely used in sensors, industrial equipment, transportation facilities, medical devices, and more.
Waterproof M12 Panel Mount Connector IP67 A B D Code 3-17 Pin 9 Waterproof M12 Panel Mount Connector IP67 A B D Code 3-17 Pin 10
Frequently Asked Questions
Who are we?
Based in Guangdong, China since 2014, we export worldwide with a team of 101-200 professionals serving markets in Western Europe, North America, Oceania, and beyond.
How do we guarantee quality?
We conduct pre-production samples and final inspections before shipment to ensure product quality.
What can you buy from us?
We specialize in waterproof connectors and cables, including M8, M12, M16, M23, and D-SUB/USB types.
Why choose us?
Our expertise in waterproof connectors for industrial applications, combined with our commitment to quality and customer service, makes us a preferred supplier.
What services do we provide?
We accept various delivery terms (FOB, CFR, CIF, etc.) and payment methods (T/T, L/C, PayPal, etc.), and communicate in multiple languages to serve global customers.
