PCB Mount M12 Electrical Wire Connector Angeled Panel Male 8 12 17 Pin
Product Specifications
| Attribute |
Value |
| Type |
DIN |
| Application |
Automotive Industrial Aviation LED Solar |
| Gender |
Male Female |
| Pins |
3 4 5 8 12 17 pin Connector |
| Rated Voltage |
250V |
| Rated current |
4A |
| Protection level |
IP67/IP68 Connector |
| Connector type |
Aviation Connectors |
| Temperature Range |
-40°C to +125°C |
| Brand |
RENHOTEC |
| Connector Insert |
TPU/PA |
| Connector Contacts |
Brass with gold plated |
Product Overview
High-quality M12 Connector with 90° angle design, available in A, B, C, D, and X coding types with 3, 4, 5, 8, 12, or 17 pin configurations. Suitable for PCB sensor applications with male and female plug socket options.
Key Features
- Durable construction with brass contacts gold plated for superior conductivity
- Wide temperature range from -40°C to +125°C
- IP67/IP68 protection rating for waterproof applications
- Multiple pin configurations available (3, 4, 5, 8, 12, 17 pin)
- Suitable for automotive, industrial, aviation, LED, and solar applications

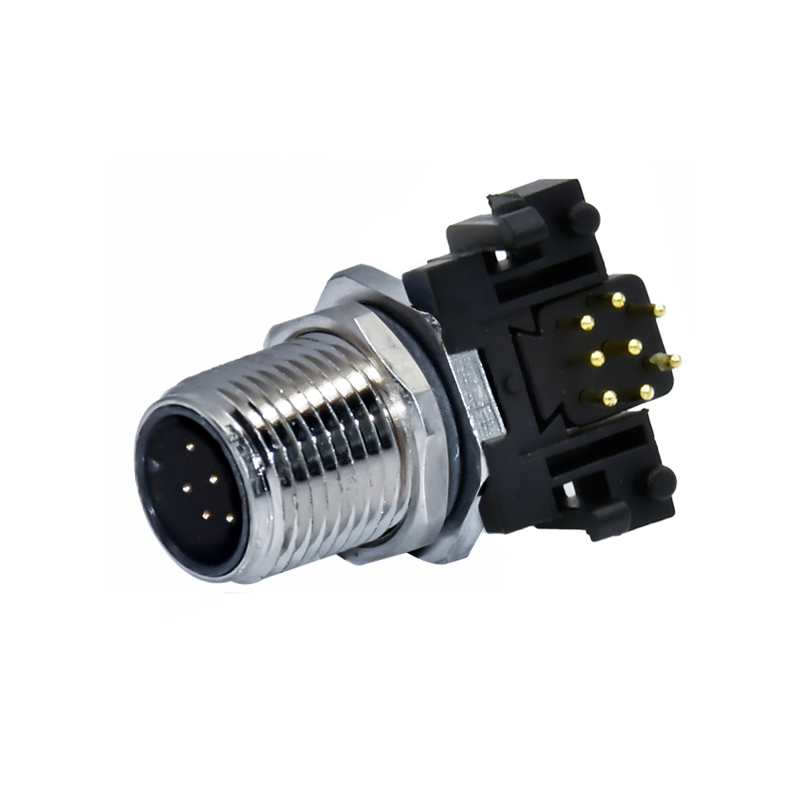

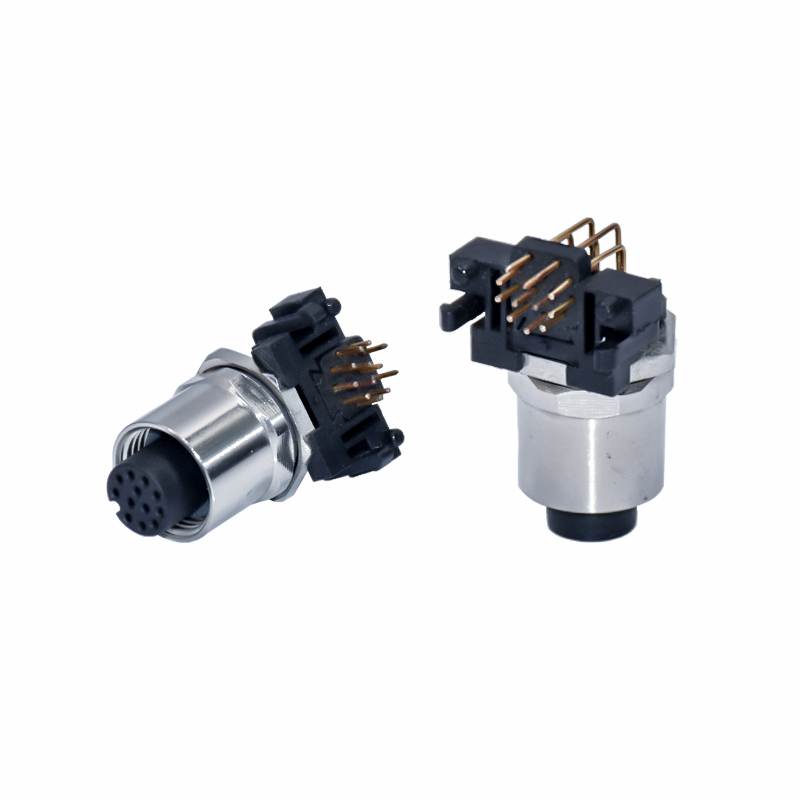

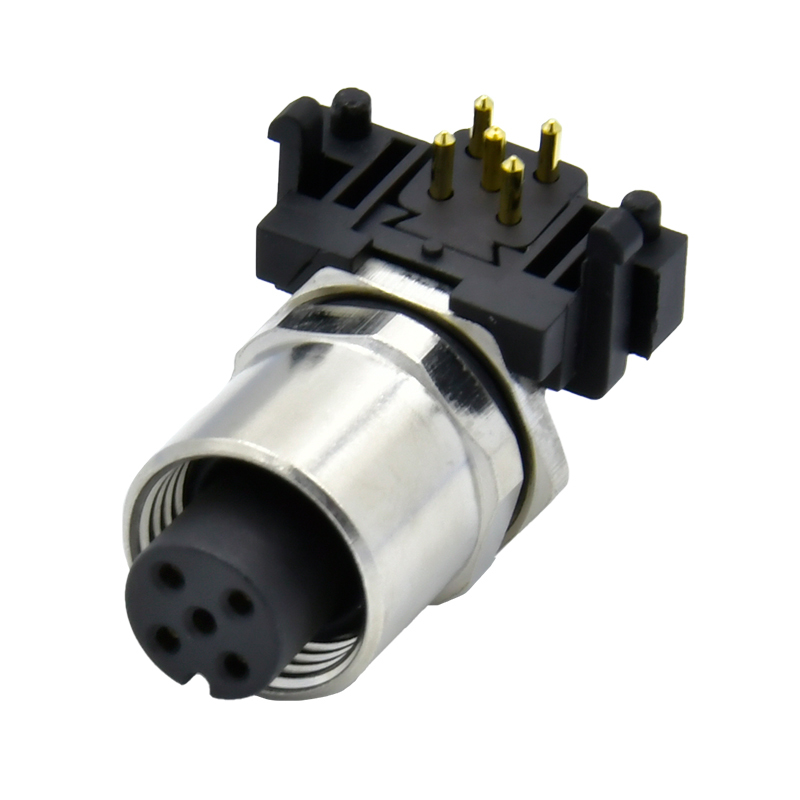

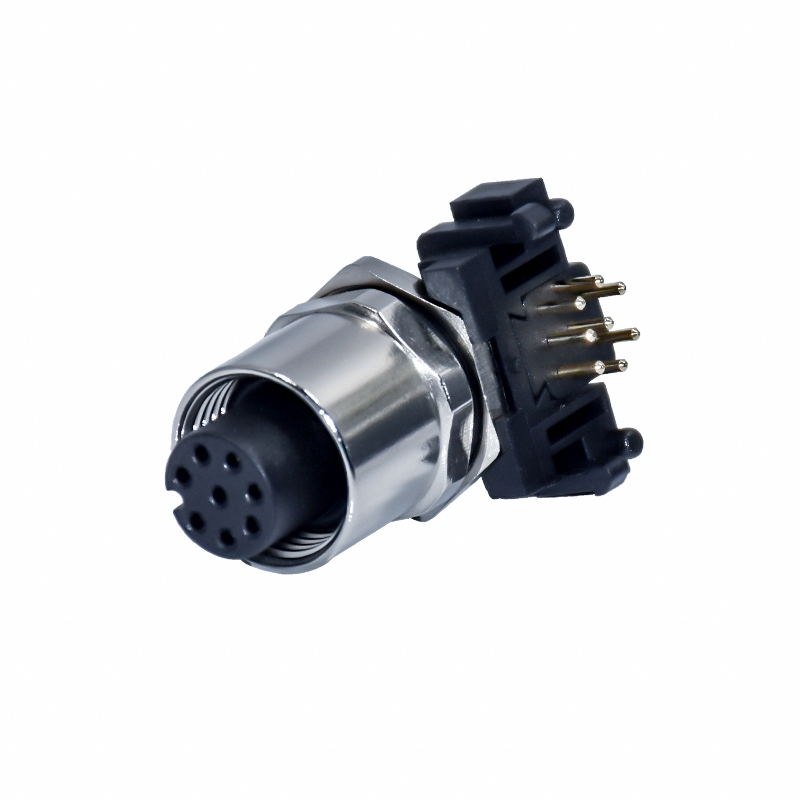

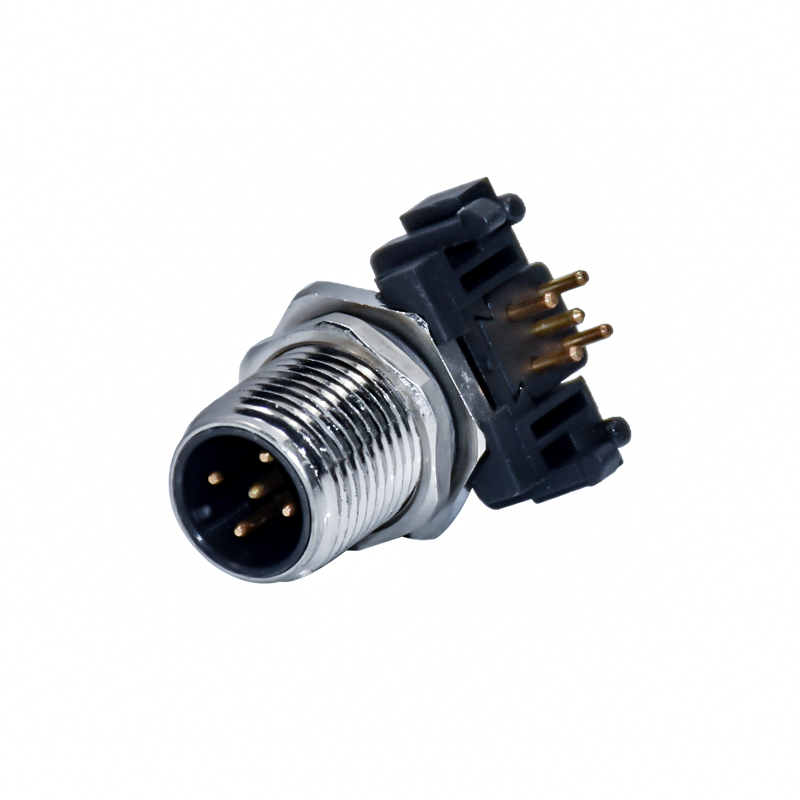

Product Images
Quick Access
View Product Catalogues and Prices
Frequently Asked Questions
Q1: Are you a factory?
A: Yes, we are the professional manufacturer of connectors and precision mold since 2013
Q2: How about the certificates?
A: ISO 9001, ISO14001, TUV, UL, RoHS, REACH etc.
Q3: How about the payment terms?
A: We can do 30% deposit, 70% balance before shipment and balance against shipment
Q4: How long is the delivery time?
A: We ensure fast delivery. Generally, it takes 2-5 days for small orders or stock goods; 10 to 15 days for mass production after receiving your advance payment.
Q5: What can you buy from us?
A: Waterproof cables, waterproof connectors, power connectors, signal connectors, network connectors, etc., including M5, M8, M12, M16, M23, D-SUB, RJ45, AISG, SP series connectors.
Q6: What services can we provide?
A: Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, FCA, CPT, DDP, DDU. Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY. Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow.
