Home /Products/M16 Circular Connector/Waterproof M16 Circular Connector

Waterproof M16 Circular Connector

100
MOQ
negotiable
Price
Waterproof M16 Circular Connector
Features Gallery Product Description Request A Quote
Features
Specifications
Contact Carrier:: PA66+GF
Termination: Soldering
IP Rating: IP67 , IP68
Rated Temperature:: -25°C...+70°C
Coupling Nut/screw: Brass,nickel-plated,CNC
Standard:: IEC 61076-2-106
Rated Voltage:: 60V(32V DC)
Insulation Resistance: ≥100 MΩ
Contact Resistance: ≤5mΩ
Contacts Plating: Au(Gold)
Highlight:

Waterproof M16 Circular Connector

,

CE M16 Circular Connector

,

M16 Waterproof 3 Pin Connector
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: RIGOAL
Certification: CE , Rohs
Model Number: M16 connectors
Payment & Shipping Terms
Packaging Details: m8 4pin female ip67 waterproof panel mount solder connector 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.
Delivery Time: 14
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000
Product Description

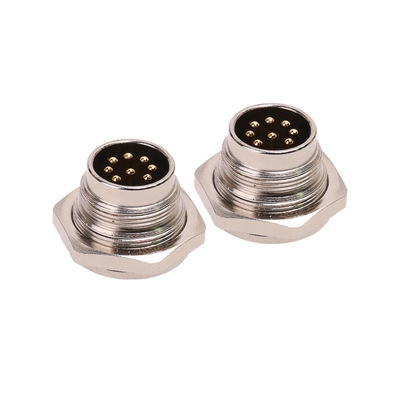

Waterproof M16 8pin Female Panel Socket Connector Front Mount With Solder Cups
Overview
Quick Details
Place of Origin:
Guangdong, China
Model Number:
MD08P2LSAB
Type:
M16 Panel Mount Connector
Application:
Factory automation and process control
Gender:
Female
Pins:
4p, 5P, 12p, 7P, 3P, 2P, 6P
Product name:
M16 male panel connector front mount with solder cups
Standard:
IEC 61076-2-106
Contact:
Phosphor bronze
Rated current:
5A
Rated voltage:
60V(32V DC)
Coupling nut/screw:
Brass,nickel-plated,CNC

Product Description

 Waterproof M16 Circular Connector 0Waterproof M16 Circular Connector 1Waterproof M16 Circular Connector 2Waterproof M16 Circular Connector 3Waterproof M16 Circular Connector 4

CABLEFORCE offers a complete line of M16 panel mount connector solutions for enclosure, panel and PCB applications. These M16 connectors are offered in both male and female versions and are rated to IP67. These connectors are designed for both front mounting and reAar mounting with PG9 panel locking thread.

Specification
item
value
Model Number
M16
Type
M16 Circualr Connector
Place of Origin
Guangdong,Chian
Brand
RIGOAL
Packaging

Description
M16 waterproof connector
D/C

Connector locking system
screw
Termination
solder
Degree of protection
IP67
Mechanical operation
> 500 mating cycles
Upper temperature
+ 85 °C
Lower temperature
--40 °C
Material of contact body
PBT (UL 94 V-0)
Material of housing
CuZn (brass, nickel plated



Tag:

TUV M16 Circular Connector

Rohs M16 Circular Connector

8P M16 Circular Connector
