Rear Panel Mount Connector , IP67 8 Pin Round Connector Female Socket
100pcs
MOQ
$3.5/pc
Price
Rear Panel Mount Connector , IP67 8 Pin Round Connector Female Socket
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Rigoal m16 connector
Certification: CE , TUV , RoSH
Model Number: m16 panel mount connector
High Light:

TUV Rear Panel Mount Connector

,

TUV 8 Pin Round Connector

,

IP67 8 Pin Round Connector

Payment & Shipping Terms
Packaging Details: PE bag and Cartons
Delivery Time: 10-15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Specifications
Contacts: 8Pins
Type: Female
Termination: Screw
Rated Voltage: 60V
Rated Impulse Voltage: 500V
Rated Current: 5A
Contact Resistance: ≤ 5 Ohm/≤ 3 Ohm
Contact Plating: Au (Gold/gold)
Wire Gauge: Max. 0,75 Mm2 (max. AWG 20)
Degree Of Protection: IP67
Product Description

M16 Circular Connector Waterproof Rear Panel Mount Connector 8pins Female Socket



Product details

1. M16 connectors (J09 Connector) are ideal for serving industrial and commercial applications.

2. M16 thread dimension pcb connector with molex housing wire connector

3. Water and dustproof to IP67 when mated with compatible connector.

4. M16 Circular Metric Connectors are available at Mouser Electronics.



Material details

Gender: female

Contacts:  8 pins

Material ot contact: CuZn

Contact plating: Au (Gold/gold)

Material of contact body: PBT (UL 94 V-0)

Material of housing: CuZn (brass, nickel plated)

Pollution degree: 1(2)²

Overvoltage categorie: l(II)²

Material group: lll

Upper temperature: + 85 °C

Lower temperature:  – 40 °C



General Characteristics
Locking system screw M16*0.75
Termination solder, moulded on cable
Shell protection IP67/IP68
Mechanical operation >500 mating cycles
Upper temperature +85℃
Lower temperature -25℃
Pollution degree III
Contact resistance ≤5mΩ
Pin contact CuZn
Socket contact CuSn
contact plating Au
Upper temperature PA66(UL 94V-0)
Female insent PA66(UL 94V-0)
Material of cable jacket PVC or PUR
Screw CuZn
Nut CuZn





Product Photos

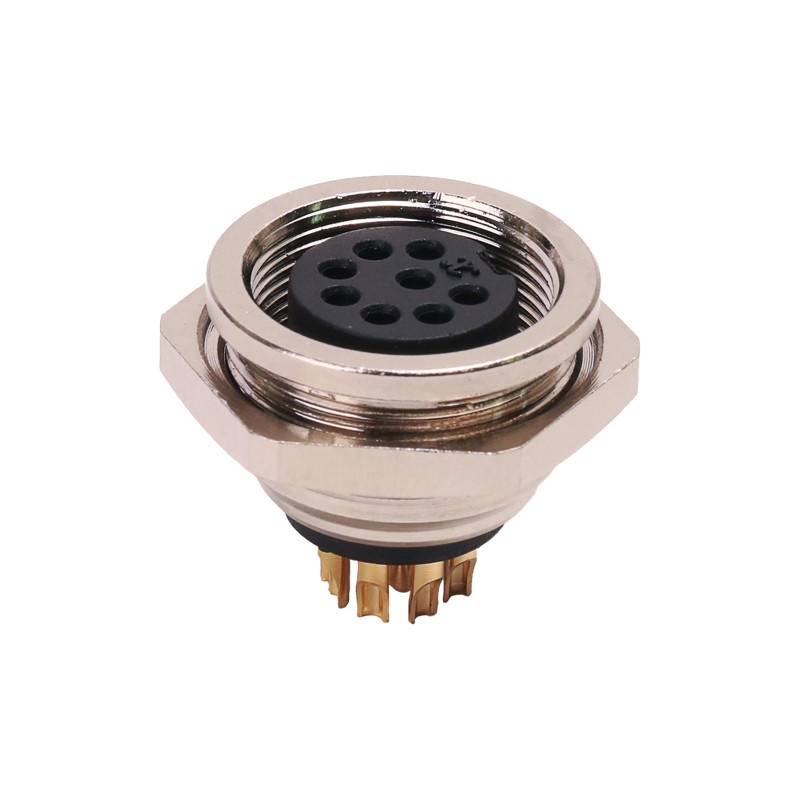

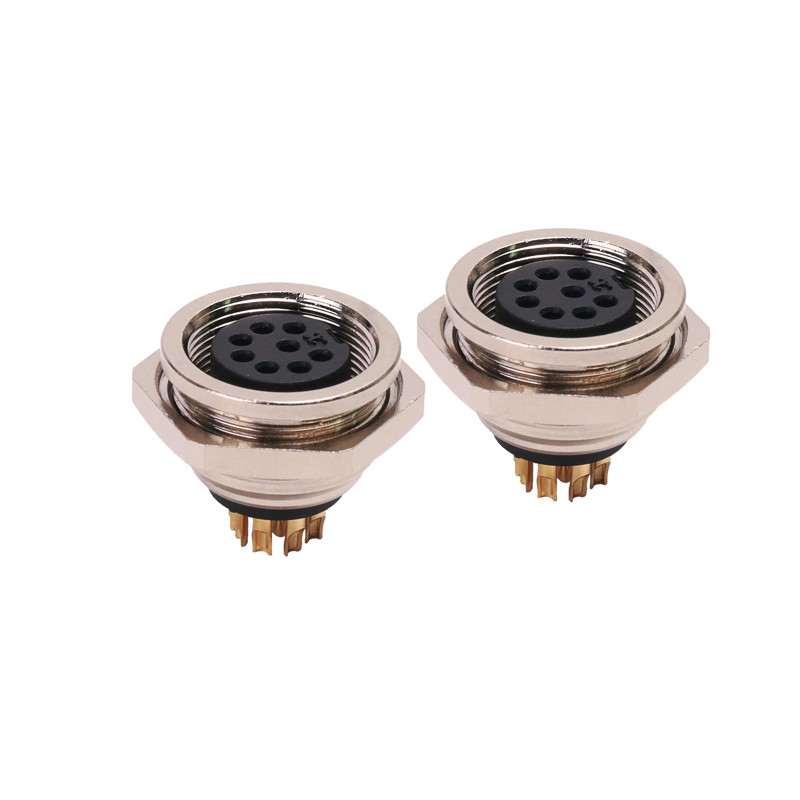

Rear Panel Mount Connector , IP67 8 Pin Round Connector Female Socket 0Rear Panel Mount Connector , IP67 8 Pin Round Connector Female Socket 1



FAQ



Q1: Why choose us?

A: 100% homemade, competitive price and fast delivery

Strictly quality control, connectors certified by TUV/CE/ROHS.



Q2: How can I get a connector’s sample?

Sample in stock is free; you just need to pay shipping cost.



Q3: How long is your delivery time?

A: Sample is 1-3 work days; Mass is 5-15 work days.



Q4. What kind of connectors you could supply?

A: M8, M12, M16, M23, Industrial waterproof connector, weipu connector, solenoid valve connector etc, also can customized based on customer's requirements as long as tell us your demand



Q5: What’s the connector made of?

Material ot contact: CuZn

Contact plating: Au (Gold/gold)

Material of contact body: PBT (UL 94 V-0)

Material of housing: CuZn (brass, nickel plated)



Q6: What are the payment methods?

A: T/T, PayPal, Western Union, Ali trade assurance.



Q7: Is it OK to print my Logo on the product?

A: Yes, OEM/ODM service is available.



Q8: How to deliver the goods?
A: DHL, UPS, TNT, FedEx, Aramex, Postal parcel and forwarder are acceptable.
