5A M16 Circular Connector 6pin Rear Panel Mount Connector 8 pins Male Socket

100pcs
MOQ
negotiable
Price
5A M16 Circular Connector 6pin Rear Panel Mount Connector 8 pins Male Socket
Features Gallery Product Description Request A Quote
Features
Specifications
Contacts: 8Pins
Gender: Male
Wire Gauge(mm): Max. 0,75 Mm2 (max. AWG 20)
Rated Voltage: 60 V (32 V)
Rated Impulse Voltage: 500V
Rated Current(40°): 5A
Contact Resistance: ≤ 5 Ohm/≤ 3 Ohm
Contact Plating: Au (Gold/gold)
Termination: Screw
Degree Of Protection: IP67
High Light:

5A M16 Circular Connector

,

6pin M16 Circular Connector

,

Rigoal Rear Panel Mount Connector

Basic Infomation
Place of Origin: China
Brand Name: Rigoal m16 connector
Certification: CE , Rohs
Model Number: m16 panel mount connector
Payment & Shipping Terms
Packaging Details: PE bag and Cartons
Delivery Time: 10-15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Product Description

M16 Circular Connector IP67 Rear Panel Mount Connector 8pins male Waterproof socket



Product details



Panel mount, assembly connector are avaliable, also can customized based on customer's requirements.

M16 Front Screw Back Panel Mount Socket Connector, waterproof is IP67

Special feature and service can be provided upon requirement.

it is usually widely used on all kinds of outdoor applications, specially for the signal transmission, Medical Equipment,Audio / Video, Test and Measurement, Communications product line.

We guaranteed that 100% in good quality, the price will be reasonal

Connect to minimize induced signal noise.

M16 Circular Metric Connectors are available at Mouser Electronics.



Model Number M16 Housing Material copper alloy
Item circular outdoor connectors Plating nickel
Life cycles 5000 mating Temprature -55°C to+200°C
Contacts 2/3/4/5/6/8pin ip Ranking IP67-IP69



Material details



Gender: male

Wire gauge: max. 0,75 mm2

Material ot contact: CuZn

Contact plating: Au (Gold/gold)

Material of contact body: PBT (UL 94 V-0)

Material of housing: CuZn (brass, nickel plated)

Pollution degree: 1(2)²

Overvoltage categorie: l(II)²

Material group: lll

Upper temperature: + 85 °C

Lower temperature:  – 40 °C



Gender male
Cable outlet 4–6 mm (PG 7)/6–8 mm (PG 9)
Contacts of number 8 pins
Rated voltage 60 V (32 V)
Rated impulse voltage 500 V
Rated current  5A
Contact resistance ≤ 5 ohm/≤ 3 ohm
Contact plating Ag Au (Gold/gold)

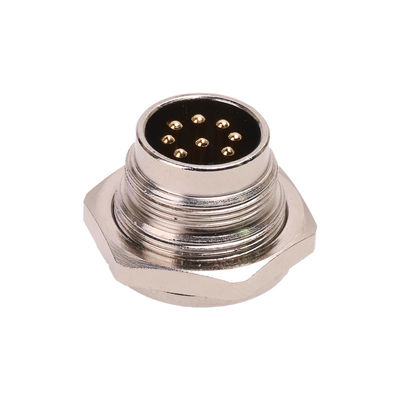

Product Photos

5A M16 Circular Connector 6pin Rear Panel Mount Connector 8 pins Male Socket 05A M16 Circular Connector 6pin Rear Panel Mount Connector 8 pins Male Socket 15A M16 Circular Connector 6pin Rear Panel Mount Connector 8 pins Male Socket 2



FAQ



Q1: Why choose us?

A: 100% homemade, competitive price and fast delivery



Q2: How can I get a connector’s sample?

Sample in stock is free; you just need to pay shipping cost.



Q3: How long is your delivery time?

A: Sample is around 5 working days; Mass is 5-15 work days.



Q4. What kind of connectors you could supply?

A: M8, M12, M16, M23, Industrial waterproof connector, weipu connector, solenoid valve connector etc, also can customized based on buyer's requirements as long as tell us your details



Q5: What’s the connector made of?

Material ot contact: CuZn

Contact plating: Au (Gold/gold)

Material of contact body: PBT (UL 94 V-0)

Material of housing: CuZn (brass, nickel plated)



Q6: What are the payment methods?

A: T/T, PayPal, Western Union, Ali trade assurance.



Q7: Is it OK to print my Logo on the product?

A: Yes, OEM/ODM service is available.



Q8: How to deliver the goods?
A: DHL, UPS, TNT, FedEx, Aramex, Postal parcel and forwarder are acceptable.
