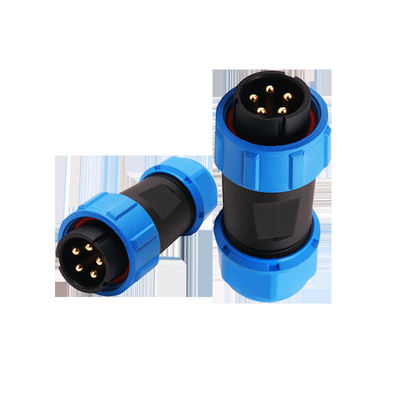

9pins 12pins Waterproof Power Connector SP21 Weipu Connector

100pcs
MOQ
negotiable
Price
9pins 12pins Waterproof Power Connector SP21 Weipu Connector
Features Gallery Product Description Request A Quote
Features
Specifications
Contacts: 2,3,4,5a,5B,5C,6,7,9,12pins
Connector Design: Weipu Connector
Termination: Solder/Screw
Degree Of Protection: IP68
Contact Material: Brass With Gold Plating
Shell Material: Shcoll Material
Insert Material: PPS Man Temperature 260°
Cable Outer Diameter Range: GM21: A(4.5-7mm)B(7-12mm) GM17: 7-10mm) GM13: A(4-6.5mm)B(5-8mm)
Mating Cyclc: >500 Times
Temperature Range: -25°C~+85°C
Insulation Resistancem M Ω: 2000
High Light:

IP68 9pins Waterproof Power Connector

,

12pins IP68 Waterproof Power Connector

,

Weipu Connector

Basic Infomation
Place of Origin: China
Brand Name: Rigoal
Certification: CE
Model Number: SP21
Payment & Shipping Terms
Packaging Details: 38*32*32cm/CTN, 1000pcs/CTN
Delivery Time: 10-15days
Supply Ability: 30000pcs per week
Product Description

General Details

Coupling:Threaded coupling

Shell material: Nylon66

Fire resistance: V0
Termination: Solder/Screw
Cable outer diameter range: GM21: A(4.5-7mm)B(7-12mm) GM17: 7-10mm) GM13: A(4-6.5mm)B(5-8mm)
IP rating: IP68
Mating cyclc: >500次
Temperature range: -25°C~~+85°C
Insert material: PPS man temperature 260°
Contact material: Brass with gold plating
Current Rating:5A-10A
Contact Gender:Male/female
Housing Material:Plastic



Material



Shell material: Nylon66
Insert material: PPS man temperature 260°
Contact material: Brass with gold plating
Housing Material:Plastic




Number of Contacts

9pins 12pins Waterproof Power Connector SP21 Weipu Connector 0



Pictures

9pins 12pins Waterproof Power Connector SP21 Weipu Connector 1

9pins 12pins Waterproof Power Connector SP21 Weipu Connector 2

9pins 12pins Waterproof Power Connector SP21 Weipu Connector 3

9pins 12pins Waterproof Power Connector SP21 Weipu Connector 4

9pins 12pins Waterproof Power Connector SP21 Weipu Connector 5

Packaging & Shipping

Usually standard size 38*32*32cm/CTN,1000pcs/CTN

approval customized based on customers' requirements

MOQ: 100pcs each item

Delivery time: 5-7days after the payment received

Shipment: by Express,by Air, by Sea

Payment terms: 100% TT in Advance

Payment method: T/T, Western Union, Paypal



Weipu SP13 17 21 Connectors

SP series of threaded IP68 connectors has a bigger and stronger shell. With its IP68 rating

That coupled with the IP68 rating excels in harsh environments. And it's very flexible

When choosing a female connector, the robust connectors can be used for both cable to cable (inline) and cable to panel-mount connections.

All models are highly reliable and excellent quality.
