Plastic Field Assembly Power Socket Devicenet Cable Connectors 4pins
100pcs
MOQ
Negotiable
Price
Plastic Field Assembly Power Socket Devicenet Cable Connectors 4pins
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Rigoal
Certification: CE, TUV , RoSH
Model Number: 7/8'' connector
High Light:

4pins Assembly Connector

,

TUV Power Socket Connector

,

4pins Devicenet Cable Connectors

Payment & Shipping Terms
Packaging Details: PE bag and Cartons
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Specifications
Gender: Female
Product: 7/8'' Connector
Type: Assembly Connector
IP Rating: IP67
Poles: 4pins
Locking System: Screw 7/8''-16UNF
Termination: Screw
Mechanical Operation: >500 Mating Cycles
Rated Voltage: 250v
Application: Automotive/sensor
Product Description

Waterproof Mini Change 7/8 Inch Plastic Field Assembly Power Socket DeviceNet Connector



Product Description

Mini-change7/8'' assembly connector cables are used to easily connect field devices in industrial installations.

Sold in various lengths ZIPport MINI Size 1 cordsets have an axial 7/8 inch - 16 UN2 threaded connector on one end, and open leads on the other;

patch cables have axial connectors on both ends.

PVC jackets protect in most environments.



Material details

Pin contact: CuZn

Contact plating: Au

Nut: CuZn

Female insent: PA66(UL 94V-0)

Material of cable jacket: PUR or PVC

Shell material: PBT(UL 94 V-0)

Wire gauge: max.1.5mm(max.awg16)

Contact material: CuZn(brass)

Rated impluse voltage : 4000v

Overvoltage categorie: three

Cable outlet: 6-8mm,10-12mm, 12-14mm,14-18mm



General Characteristics
Number of contact 3 4 5pins
Termination solder, moulded on cable, screw clamp
Wire guage in mm² max.1.5
Wire guage in AWG max.16
Shell protection IP67/IP68
Upper temperature +85
Lower temperature -25
Rated voltage 300V
Contact resistance ≤10mΩ
insulation resistance ≥100MΩ

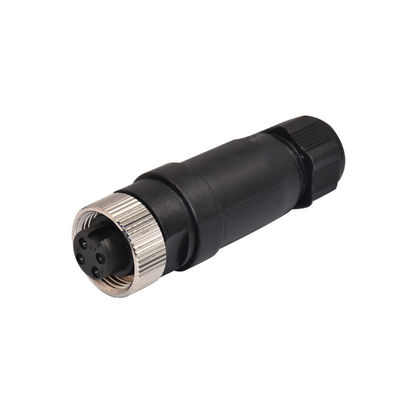

Product photos

Plastic Field Assembly Power Socket Devicenet Cable Connectors 4pins 0Plastic Field Assembly Power Socket Devicenet Cable Connectors 4pins 1

FAQ



Q1. What kind of connectors you could supply?

A: M8, M12, M16, M23, Industrial waterproof connector, weipu connector, solenoid valve connector etc, also can customized based on buyer's requirements as long as tell us your details



Q2: How can I get a connector’s sample?

Sample in stock is free; you just need to pay shipping cost.



Q3: How long is your delivery time?

A: Sample is around 5 working days; Mass is 5-15 work days.



Q4: What’s the connector made of?

Material ot contact: CuZn

Contact plating: Au (Gold/gold)

Material of contact body: PBT (UL 94 V-0)

Material of housing: CuZn (brass, nickel plated)



Q5: Why choose us?

A: 100% homemade, competitive price and fast delivery



Q6: Is it OK to print my Logo on the product?

A: Yes, OEM/ODM service is available.



Q7: What are the payment methods?

A: T/T, PayPal, Western Union, Ali trade assurance.



Q8: How to deliver the goods?
A: DHL, UPS, TNT, FedEx, Aramex, Postal parcel and forwarder are acceptable.
