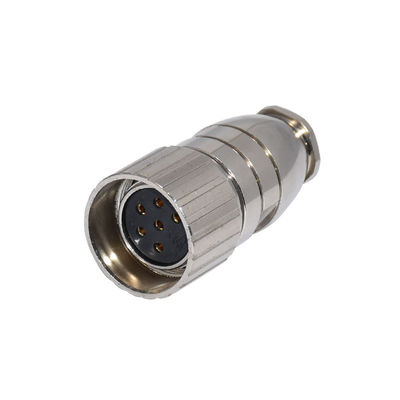

M23 Connector High Power Waterproof IP67 Female 6pins Assembly Metal Plug Connector
Product description
Clipped-on, strain-relief inserts prevents cable rotation
Radial-encompassing spring contacts assure low plug-in resistance and high mating cycles
Modularity same inserts for all housings
Flexible EMC-O ring guarantees reliable EMC-protection
General Details
Contacts: 6.7.9.12.17.19pins
Gender: Male to Female
Coupling: Threaded coupling
Termination: Solder
Mating cycle: 500times
Cable temperature: -25℃~+85℃
Cable diameter: ≤ Φ6mm~≤Φ8.5mm
Solder inter diameter: 1mm~2.5mm
Insulation resistance DC50±10%
Contact resistance(mΩ): 10mΩ at 10mA Max
Material
Material of contact: Brass, gold plated
Contact plating:Au(Gold)
Material of contact body: PA
Connector locking system:Screw
Material of housing:CuZn(Brass nickel plated)
| Connector type | M23 series |
| Connector Gender | male to female |
| Contacts | 6pins |
| Connector locking system | welding |
| Rated current | 20A |
| Rated Voltage |
300v |
| Mating Endurance | >800 cycles |
| Coupling Nut/Screw | Zinc/Brass with Nickel Plated |
