IP68 M23 Connector Shielded Square Panel Mount 12pins Male Power Plug
100pcs
MOQ
$3.5-$4.5 per piece
Price
IP68 M23 Connector Shielded Square Panel Mount 12pins Male Power Plug
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Rigoal
Certification: CE , RoSH
Model Number: M23 connector
High Light:

IP68 M23 Connector

,

RoSH M23 Connector

,

M23 12 Pin Waterproof Connector

Payment & Shipping Terms
Packaging Details: PE Bags and Carton
Delivery Time: 10-15days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5000pcs per week
Specifications
Contacts: 12pins
Termination: Solder
Type: Square Panel Mount
Cable Temperature: -40℃~+125℃
Shell Material: Copper / Zinc
Insert Material: PA66
Overmold Material: PVC/TPU
IP Rating: IP67
Terminal Material: Phosphor Copper
Gender: Male
Product Description

M23 Connector Waterproof IP68 Shielded Square Panel Mount 12pins Male Power Plug



Product description

1. M23 Signal Connectors include field attachable male and female cable connectors and receptacles from 6-pole to 19-pole in straight and right-angled versions.

2. Inserts are available with solder or crimp contacts. The integrated locking clip secures the contacts in the inserts and an easy assembly and disassembly without the need of special assembly tools.

3. Rigoal offers field-attachable cable connectors and receptacles in 5+PE and 4+3+PE versions.



General Details

Contacts: 12pins

Gender: male

Coupling: Threaded coupling

Termination: solder

Mating cycle: 500times

Cable temperature: -25℃~+85℃

Cable diameter:≤Φ6mm~≤Φ8.5mm

Solder inter diameter:1mm~2.5mm

Insulation resistance DC50±10%

Contact resistance(mΩ): 10mΩ at 10mA Max



Standard IEC 61076-2-105 IP rating IP67
Ambient temperature -20℃~+85℃ Mating endurance ≥500
Connector insert PA66+30%GF Insulation resistance ≥100
Moulded material PVC/TPU Contact resistance ≤5
Contact material copper(gold-plated) Wiring method solder



Material

Material of contact: Brass, gold plated

Contact plating:Au(Gold)

Material of contact body:PA

Connector locking system:Screw

Material of housing:CuZn(Brass nickel plated)



Connector type M23 panel mount
Connector Gender male
Contacts 12pins
Connector locking system solder
Rated current 20A
Rated Voltage

300v



Number of Contacts

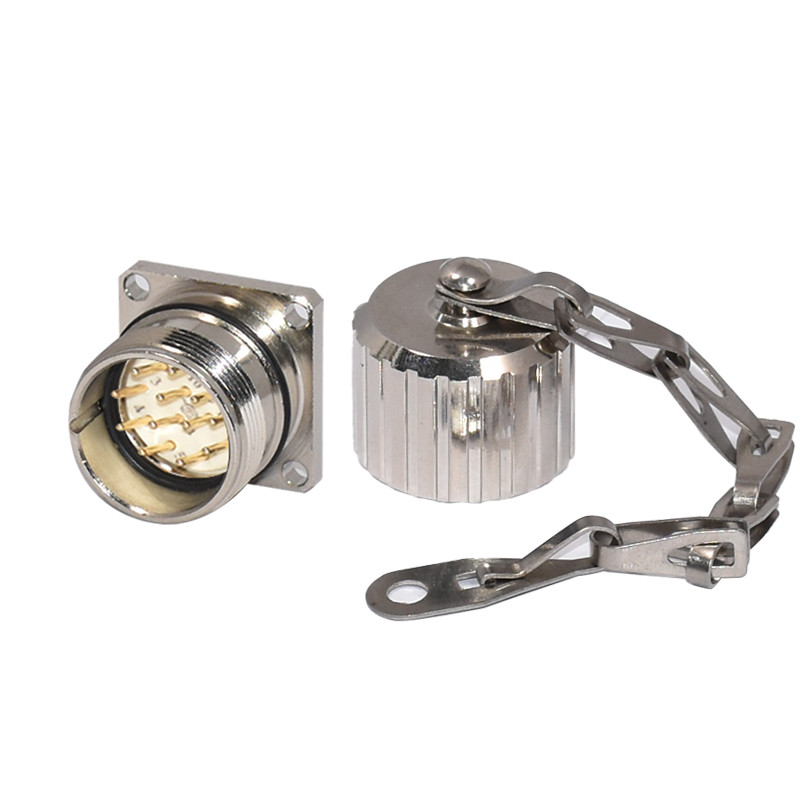

IP68 M23 Connector Shielded Square Panel Mount 12pins Male Power Plug 0



Product photos

IP68 M23 Connector Shielded Square Panel Mount 12pins Male Power Plug 1

IP68 M23 Connector Shielded Square Panel Mount 12pins Male Power Plug 2

IP68 M23 Connector Shielded Square Panel Mount 12pins Male Power Plug 3

IP68 M23 Connector Shielded Square Panel Mount 12pins Male Power Plug 4
