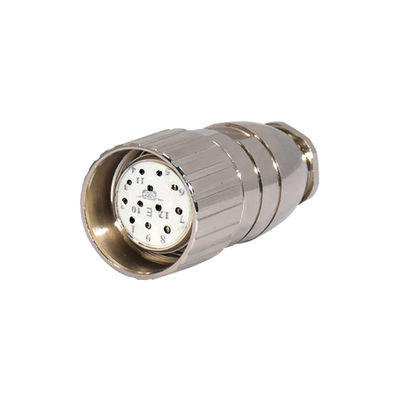

Shielded IP67 Panel Mount Connector , M23 12 Pin Female Connector Assembly To Male
100pcs
MOQ
$3.5-$4.5 per piece
Price
Shielded IP67 Panel Mount Connector , M23 12 Pin Female Connector Assembly To Male
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Rigoal
Certification: CE,RoSH
Model Number: M23 connector
High Light:

M23 12 Pin Female Connector

,

IP67 Panel Mount Connector

,

M23 Rigoal Connector

Payment & Shipping Terms
Packaging Details: PE Bags and Carton
Delivery Time: 10-15days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5000pcs per week
Specifications
Contacts: 12pins
Termination: Solder
Type: Assembly And Panel Connector
Insert Material: PA66
Cable Temperature: -40℃~+125℃
Shell Material: Copper / Zinc
Overmold Material: PVC / TPU
Degree Of Protection: IP67
Terminal Material: Phosphor Copper
Gender: Female To Male
Product Description

M23 Connector Female12pins Assembly to male panel mount IP67 Shielded Connector



Product description



M23 connectors and receptacles for signal and power applications meet stringent requirements for reliability and performance in the harshest of industrial environments

  • Offers straight and right-angle configurations
  • Includes 12-pin M23 style for standard connectivity
  • Allows modification of existing cable installations and field creation of special cable lengths
  • Includes solder connector for secure and reliable installation

General Details

Contacts: 12pins

Gender: female to male

Coupling: Threaded coupling

Termination: solder

Mating cycle:500times

Cable temperature: -25℃~+85℃

Cable diameter:≤Φ6mm~≤Φ8.5mm

Solder inter diameter:1mm~2.5mm

Insulation resistance DC50±10%

Contact resistance(mΩ): 10mΩ at 10mA Max



Material

Material of contact: Brass, gold plated

Contact plating:Au(Gold)

Material of contact body:PA

Connector locking system:Screw

Material of housing:CuZn(Brass nickel plated)



Connector type M23 panel and assembly  connector
Connector Gender male to female
Contacts 12pins
Connector locking system solder
Rated current 20A
Rated Voltage

300v



Number of Contacts

Shielded IP67 Panel Mount Connector , M23 12 Pin Female Connector Assembly To Male 0



Product photos

Shielded IP67 Panel Mount Connector , M23 12 Pin Female Connector Assembly To Male 1

Shielded IP67 Panel Mount Connector , M23 12 Pin Female Connector Assembly To Male 2

Shielded IP67 Panel Mount Connector , M23 12 Pin Female Connector Assembly To Male 3



Shielded IP67 Panel Mount Connector , M23 12 Pin Female Connector Assembly To Male 4



FAQ

Q1: Are you a manufacturer?

A1: We are manufacture, we can provide one-stop station service for connectors and cables with factory price.


Q2: How about your quality?

A2: We guaranteed that 100% in good quality, the price will be nicer than other same suppliers.

Q3: After-sales service
A3: All the inquiry will be response within 24 hours, the commucation will be effective.

Q4: Is it customizable?
A4: We offer you with OEM oders but with smaller quantity than others

Q5: Is it avaliabe to get free samples?
A5: Yes, the samples are free to provide, buyers only need to pay for shipping cost.
