Waterproof 6 Pin Circular Connector Straight Shell RoSH Certified
100pcs
MOQ
$3.5/pc
Price
Waterproof 6 Pin Circular Connector Straight Shell RoSH Certified
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Rigoal
Certification: CE , RoSH
Model Number: UCU
High Light:

UCU Waterproof Circular Connector

,

RoSH 6 Pin Circular Connector

,

UCU 6 Pin Circular Connector

Payment & Shipping Terms
Packaging Details: PE bag and Cartons
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per day
Specifications
Product Name: UCU Connector
Gender: Female To Male
Current Rating: 10A
Poles: 6pins
Type: Shielded Connector
Mating Style: Screw
Shell: Straight
IP Rating: IP68
Seal For Cable OD: Φ3mm~Φ7mm
Wire Specifications: 28AWG---14AWG
Product Description

Waterproof Plastic Connector IP68 6pins Male Assembly To Panel Connector Shielded



Product description

IP68 Waterproof Plastic Connector.It has two connection modes of the solder type and thread type.It's very easy and simple to operating,small bulk,light weight complete specification.It is applicable for the connection of the small-size sebsir,the electronic equipments,cable can have free blind insertion. Morever its features has good flexibility anti-vibration resistant,waterproof ect

Waterproof plastic connectors custom service is workable for us. Like color, materials, packing quantity, packages, logo etc.



Quick Details

Product name:UCU connector

Gender: female to male

Current Rating:10A

Number of contacts: 6pins

Mating style: screw

Back Shell:Circular

Waterproof Rating:IP68

Seal for cable OD:Φ3mm~Φ7mm

Contact resistance:<5mΩ

Insulation resistance:≥500MΩ at DC500V

Breakdown voltage: ≥1000v/1minute

Assembly Style: Field Installable(Solder)





Material

Connector body: Flame Retardant Nylon

Contact:Brass C2680 and C17200 gold plated

Sealing:EPDM



Connector size UCU connector
Contacts  6pins
Gender female to male
Seal for cable OD Φ3mm~Φ7mm
Current Rating 10A

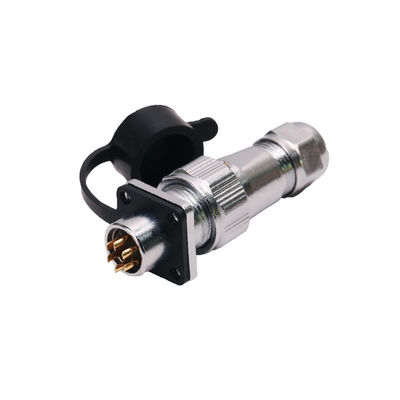

Product Photos

Waterproof 6 Pin Circular Connector Straight Shell RoSH Certified 0Waterproof 6 Pin Circular Connector Straight Shell RoSH Certified 1





Waterproof 6 Pin Circular Connector Straight Shell RoSH Certified 2

FAQ



Q1. What kind of connectors you could supply?

A: M8, M12, M16, M23, Industrial waterproof connector, weipu connector, solenoid valve connector etc, also can customized based on buyer's requirements as long as tell us your details



Q2: How can I get a connector’s sample?

Sample in stock is free; you just need to pay shipping cost.



Q3: How long is your delivery time?

A: Sample is around 5 working days; Mass is 5-15 work days.



Q4: What’s the connector made of?

Material ot contact: CuZn

Contact plating: Au (Gold/gold)

Material of contact body: PBT (UL 94 V-0)

Material of housing: CuZn (brass, nickel plated)



Q5: Is it OK to print my Logo on the product?

A: Yes, OEM/ODM service is available.
