LED Waterproof Connector L20 Straight screw 4 way 3Pin waterproof connector
2 3 4 Pin Waterproof IP67 Electrical Terminal Wire Adapter waterproof cable connector for outdoor led lights
Product details
Temination: Screw
Type: assembly connector
Contacts: 3pins
Voltage rating: 250V
Current rating: 20A
Wire gague: <=1.0mm²
Cable OD: Max.5.5mm/7.5mm/10.0mm
Withstand voltage: 1000V
Contact resistance: 5
Waterproof level: IP67
Material
Connector Body: Nylon
Max cable OD: 7.5MM
Contact material: phosphor copper with Ni plated
Breakdown Voltage:1.5KV/1minute
Temperature Rating: -45°C~+105°C
Durability(Plug/Unplug): 3000 times
| Connector Body | Nylon(PA 66)+GF UL94V-0 1/16" |
| Sealing | Silica Gel |
| Contact | Brass with gold plated |
| Mating style | Thread lock |
| Temperature Rating | -40°C~+105°C |
| Current rating | 15A 20A |
| Voltage rating | 300V |
| Waterproof Rating | IP67 |
| Contact resistance | <=10mΩ |
| Insulation resistance | 1000mΩ at DC500V |
| Breakdown voltage | 1.5KV/1 minute |
| Pins range | 2/3/4pin |
| Cable Range | 5-11mm |
| Terminal attach wire | Solder |
| Cable Diameter | <=11mm |

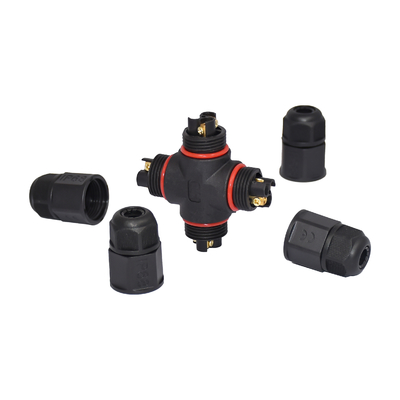

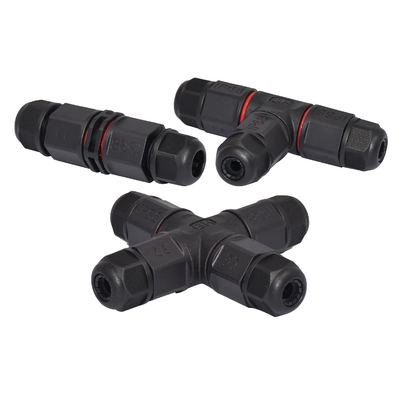

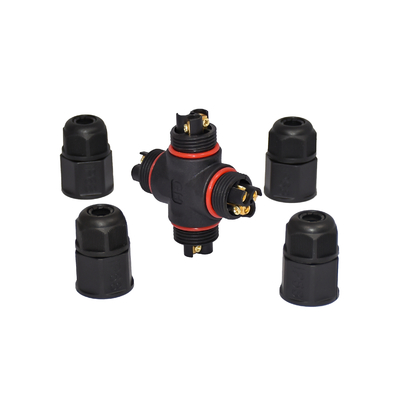

Product photos
Our service
1.100% high quality, all failed parts get free warranty within 30 days after received.
2.Accept 3 years warranty upon customer requirement.
3.Repairs parts are available within 10years; we will inform the EOL products to you from time to time
4.Free LOGO on the surface of over-molded connectors can be provided upon customer requirement.
5.Unique designed package for you can be provided upon customer requirement.
6.Special feature and service can be provided upon requirement.
