L20 2 PIN L Type Outdoor Led Wire Screw Ip67 Waterproof Cable Connector For Lighting
Product description
LED wateproof connector 2T 2pin 3Pin 4Pin Waterproof Connector ip67 high voltage solder power connector
Waterproof Connector
Advanced production equipment & strong technical strength ensure high quality and competitive products.
Cable length could be customized according to your requirements, multipins avaialble such as 2 pin,3pin,4 pin,..12pin and more, power and signal could be combined together,chassis mount socket can be used for PCB board,wall mount applications.
Product details
Temination: Screw
Type: assembly connector
Contacts: 2pins 2 ways
Voltage rating: 300V
Current rating: 20A
Wire gague: <=1.0mm²
Cable OD: Max.5.5mm/7.5mm/10.0mm
Withstand voltage: 1000V
Contact resistance: 5
Waterproof level: IP67
Electrical data
| Pin number | 2 3 4pin | IP rating | IP67 |
| Ambient temperature | -40℃~+105℃ | Mating endurance | ≥3000 |
| Voltage resistance | 1500V | Insulation resistance | ≥100MΩ |
| Moulded material | PVC/PA6 | Contact resistance | ≤5mΩ |
| Contact material | copper(gold-plated) | Wiring method | solder |
Material
Connector Body: Nylon
Contact: Copper with Ni plated
Max cable OD: 7.5MM
Contact material: phosphor copper with Ni plated
Breakdown Voltage:1.5KV/1minute
Temperature Rating: -45°C~+105°C
Durability(Plug/Unplug): 3000 times
Applications
PV inverter/signal/ Electric vehicle/Power/ Medical equipment
Interactive Smart Grid/ Automation machine
Industrial PC/ Marine device
Outdoor LED display / lighting

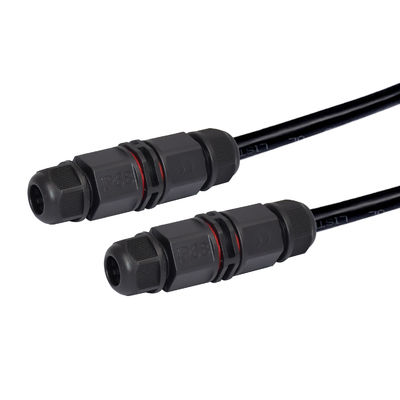

Product photos
