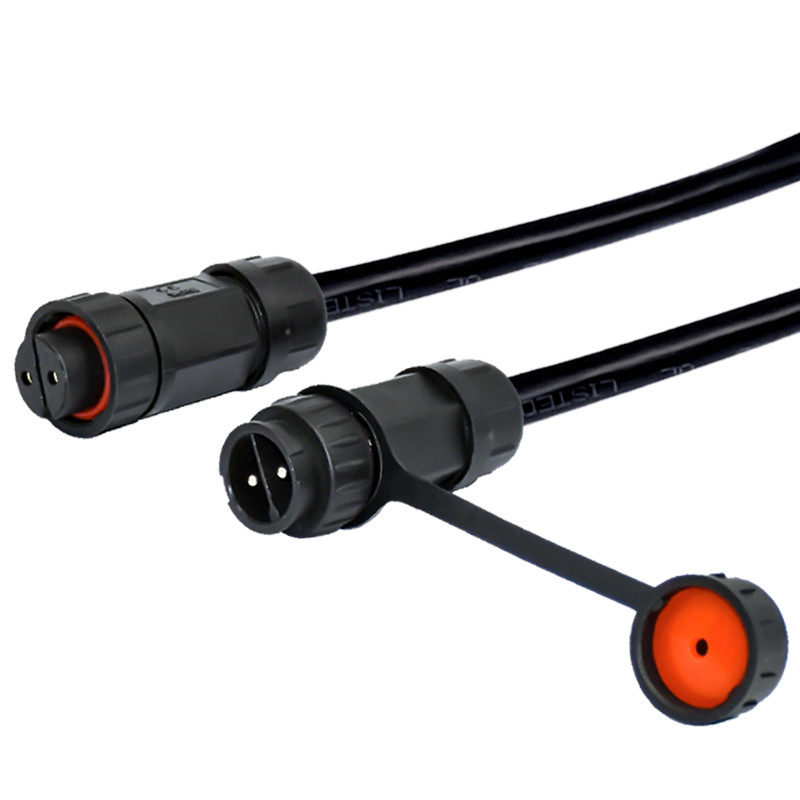

Lightning Connector 2pin Outdoor Assembly LED Ip68 Waterproof Connector Power Cable
Product description
Model number: M19
Connector Body: Nylon(PA 66)+GF UL94V-0 1/16"
Sealing: Silica Gel
Contact: Brass with gold plated
Mating style: Quick lock
Temperature Rating: -40°C~+105°C
Current rating:15A
Voltage rating: 300V
Waterproof Rating: IP67
Contact resistance: <=20mΩ
Insulation resistance: 1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range: 2/3/4/5/6/7/8/9/10/12/14/18 pin.
Electrical data
| Connector Body | Nylon(PA66)+GF UL94V-0 1/16'' |
| Contact | Brass with Gold Plated |
| Sealing | Silica Gel |
| Current Rating | 25AMP |
| Voltage Rating | 600V |
| Contact Resistance | <10mΩ |
| Insulation Resistance | 1000MΩ at DC 500V |
| Breakdown Voltage | 1.5KV/1minute |
| Temperature Rating | ‘-45°C~+105°C |
| Durability(Plug/Unplug) | 3000 times |
| Waterproof Rating | IP67 IP68 waterproof |
| Cable Max. Diameter | 11mm(<=2.5mm2) |
| Mating style | Quick lock |
| Cable range | 10mm |
| Pins Range | 2, 3, 4, 5, 6, 7, 8,9,10,12,14,18 |
| Certificate | CE; RoHS |
Product photos
Our advantage
1. IP68 waterproof protection level
2. Applicable for humidity environments.
3. We are the manufacture, Rigoal is our brand, and has built a great reputation in China even around the world.
4. Water circular connectors can connect electrical products perfectly.
5. Our connector can be used outdoor during harsh winter or sweat summer . the endurance temperature range is -40℃-105℃.
6. Every product will be inspected strictly ,we guarantee its good quality before delivery.
