M19 Waterproof Cable Connector 12 Pin Data Screw Locking Connector
100pcs
MOQ
Negotiable
Price
M19 Waterproof Cable Connector 12 Pin Data Screw Locking Connector
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Rigoal
Certification: CE,RoHS
Model Number: M19 connector
High Light:

12P Waterproof Cable Connector

,

M19 Waterproof Cable Connector

,

M19 Screw Locking Connector

Payment & Shipping Terms
Packaging Details: PE bag and Cartons
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Specifications
Brand Name: Rigoal
Connector: M19
Gender: Female And Male
Contacts: 14 Pin
Connecting Model: Screw Locking
Color: Black
Current Rating: 5A
Contact Material: Gold Plated Brass
Protect Rating: IP67
Feature: Vibration Resistance
Product Description

Waterproof Cable Connector 12 Pin Data Connector IP67 M19 Screw Locking Connector





Product description

  • Rated current: 5A
  • 2-4PIN power supply, 5-9PIN signal,multi pin vaialble
  • IP67 rating
  • Voltage rating: 300V
  • Cable Range: 3~11mm
  • UL, TUV, CB, CCC, CE, RoHS approved

Electrical data

Model number: M19

Connector Body: Nylon(PA 66)+GF UL94V-0 1/16"

Sealing: Silica Gel

Contact: Brass with gold plated

Mating style: Quick lock

Temperature Rating: -40°C~+105°C

Current rating: 5A

Voltage rating: 300V

Waterproof Rating: IP67

Contact resistance: <=20mΩ

Insulation resistance: 1000MΩ at DC500V

Breakdown voltage: 1.5KV/1 minute

Pins range: 2/3/4/5/6/7/8/9/10/12/14/18 pin.



Material



Connector Body Nylon(PA 66)+GF UL94V-0 1/16"
Sealing Silica Gel
Contact Brass with gold plated
Mating style Quick lock


M19 Waterproof Cable Connector 12 Pin Data Screw Locking Connector 0

M19 Waterproof Cable Connector 12 Pin Data Screw Locking Connector 1M19 Waterproof Cable Connector 12 Pin Data Screw Locking Connector 2

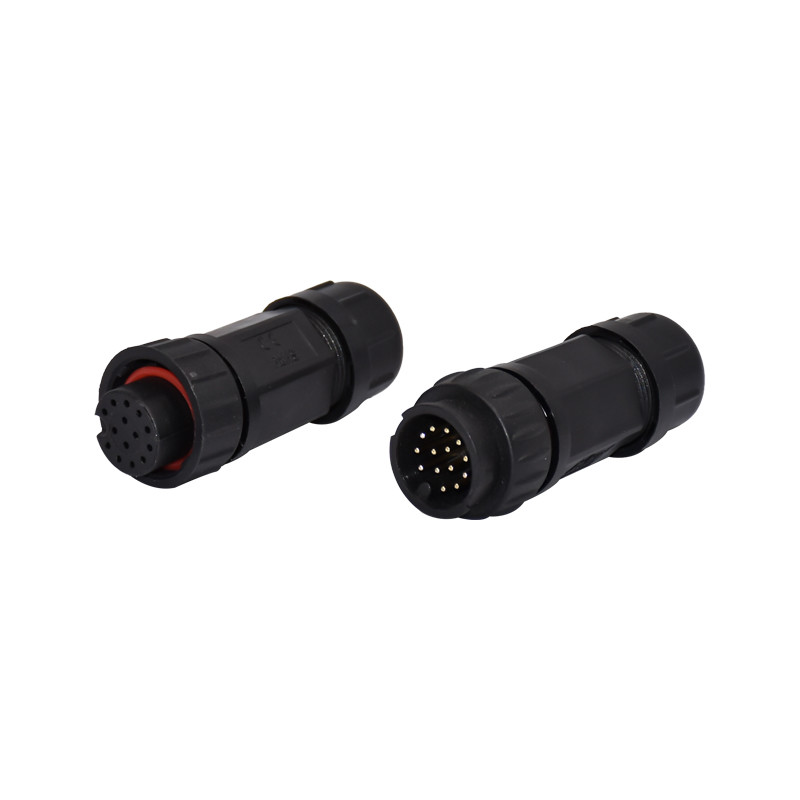

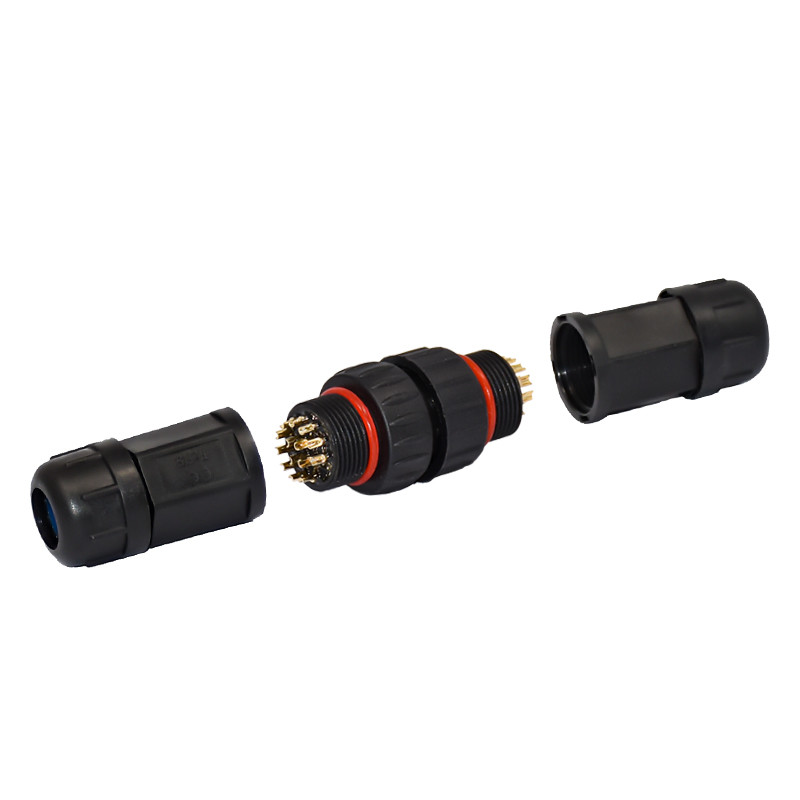

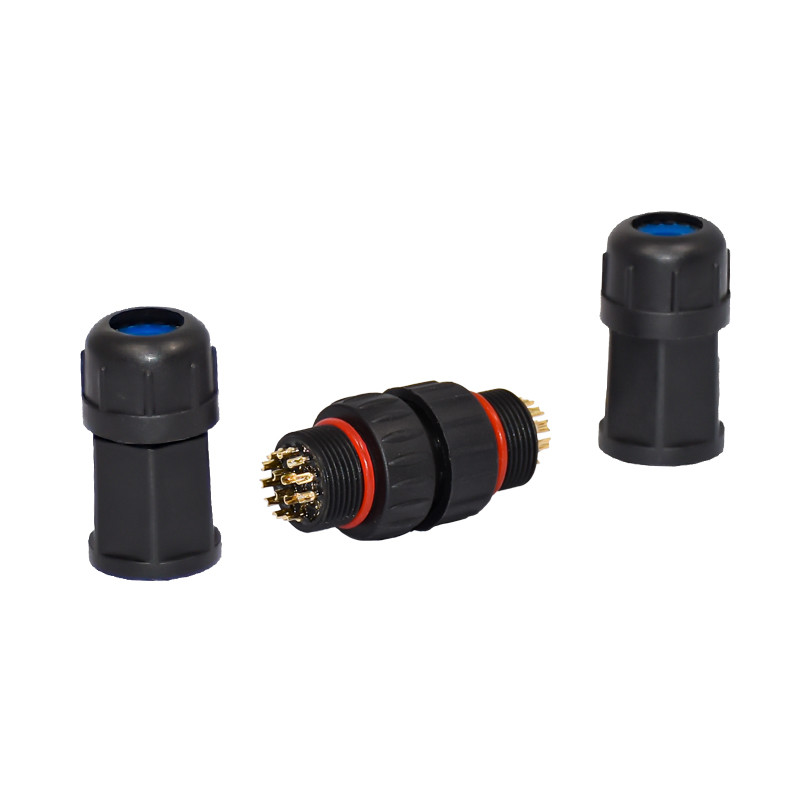

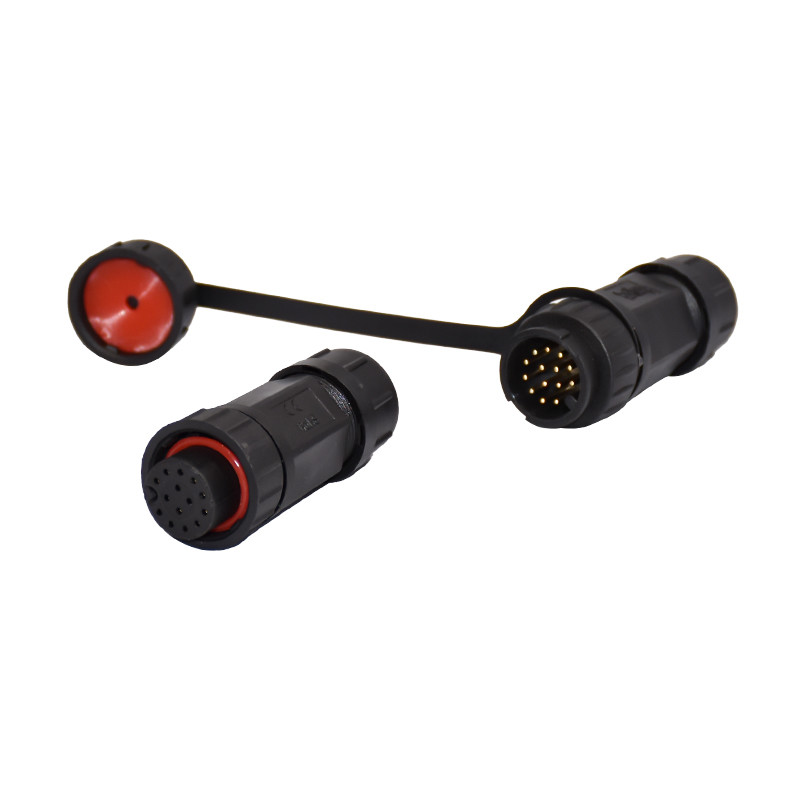

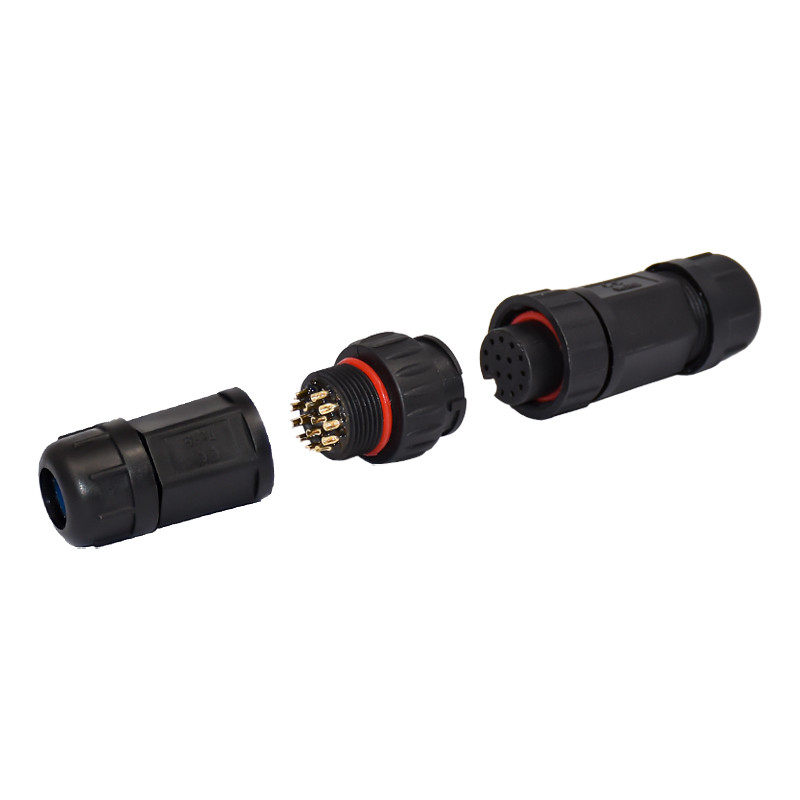

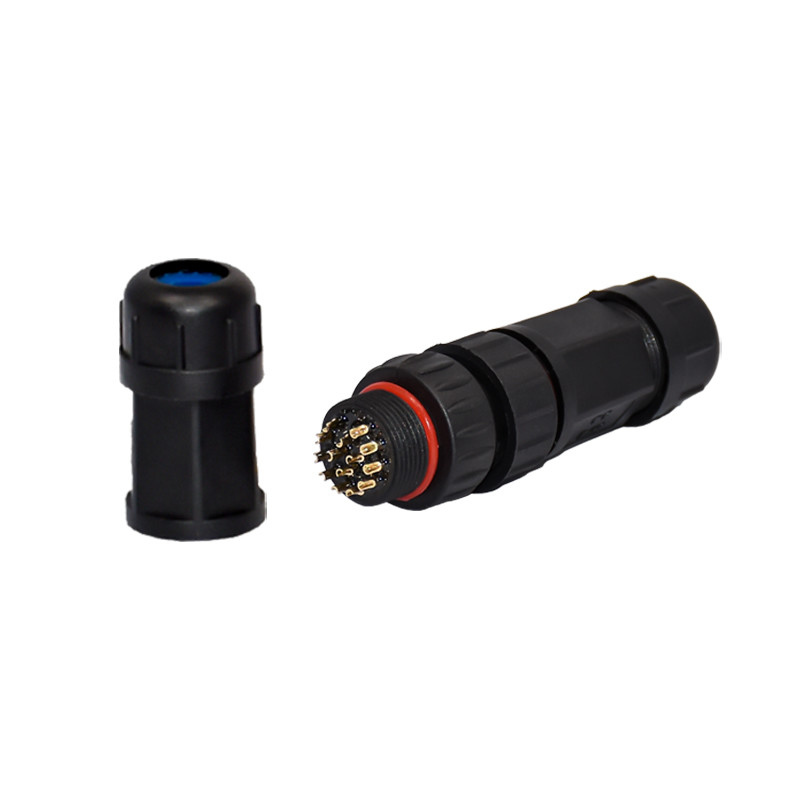

Product photos

M19 Waterproof Cable Connector 12 Pin Data Screw Locking Connector 3

M19 Waterproof Cable Connector 12 Pin Data Screw Locking Connector 4M19 Waterproof Cable Connector 12 Pin Data Screw Locking Connector 5M19 Waterproof Cable Connector 12 Pin Data Screw Locking Connector 6M19 Waterproof Cable Connector 12 Pin Data Screw Locking Connector 7M19 Waterproof Cable Connector 12 Pin Data Screw Locking Connector 8



FAQ

Q1. Are you a factory or trading company?
A: We are a factory



Q2. What about the production lead time?

It will take about 10 days for our standard product.



Q3. Do you have any MOQ (minimum order quantity) limit?

50 piece MOQ, 1pc sample for checking is available.


Q4. Can you make customized drawings or designs?

Customer’s drawings and designs are welcome, as we have our own professional R&D team to provide.
