IP68 Waterproof Cable Connector Male To Female M5 M8 M12 M16 Molding Cable
100
MOQ
receive bargaining
Price
IP68 Waterproof Cable Connector Male To Female M5 M8 M12 M16 Molding Cable
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China ShenZhen
Brand Name: Rigoal
Certification: CE , ROSH , IP68
Model Number: m5 cable
High Light:

M5 Waterproof Cable Connector

,

molding Waterproof Cable Connector

,

Molding ip68 waterproof electrical cable connector

Payment & Shipping Terms
Packaging Details: 46x30x30
Delivery Time: 30work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000
Specifications
Place Of Origin: Guangdong, China, China
Brand Name: Rigoal Connector(RG)
Model Number: M5 Molding, M5 Connector
Type: Molding
Pins: 4p, 5P, 3P
Cable Material: PVC/PUR
Rated Current: 1A
IP Degree: IP67/IP68
Color: Black
Application: Industrial, Automotive, Automotive,industrial,LED,electrical
Product Description

IP68/IP67 male to female m5 m8 m12 m16 waterproof connector cable connector M series

item
value
Place of Origin
China

Guangdong
Brand Name
Rigoal connector(RG)
Model Number
m5 molding
Type
molding
Application
Industrial
Gender
male and female
Place of Origin
China
Model Number
M5 Connector
Application
Automotive, Automotive,industrial,LED,electrical
Pins
4p, 5P, 3P, 2P
Cable material
PVC/PUR
Rated current
1A
IP degree
IP67/IP68
color
black
Brand Name
Rigoal connector
Gender
male and female
Product Description
M5 electronic components for applications such as machine condition
monitoring, thickness gages, video probe for remote
inspection and soil moisture sensors.

M5 connectors are available with 3 and 4 poles and are equipped with a threaded ring with an anti-vibration lock. The protection
class is IP67/IP68. The cable parts of M5 connector have overmoulded cables. The outer diameter is 6.5 mm. The rated voltage is 60
V, the max. current is 1 A.
Size: M5 x 0.5 with screw locking

Features of M5 connector :

1. Connector M5 x 0.5 with screw interlock
2. Connector over-moulded on cable
3. Threaded ring with vibration resistance
4. IP67 protection
5. 3 and 4 -pole designs
6. 2 m and 5 m cable length (PVC/PUR) Other cable lengths for quantities of 200 each or more are available upon request

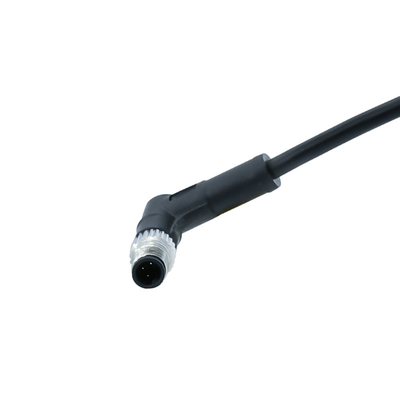

IP68 Waterproof Cable Connector Male To Female M5 M8 M12 M16 Molding Cable 0
M5 Connector Specification:
Wire gauge (AWG): 22AWG / 24AWG
Wire gauge (mm²): 0.34mm² / 0.25mm²
Jacket material: PVC
Ambient Temperature: -25°C ~ +85°C
Insert: PA66+GF
Contacts: Phosphorus copper with gold plated
Screw: Brass with nickel plated
Connector locking system: Screw locking
Mechanical operation: >100 mating cycles

Rated current: 1A
Rated voltag: 60V
Contact resistance: ≤5mΩ
Insulation resistance: ≥100MΩ

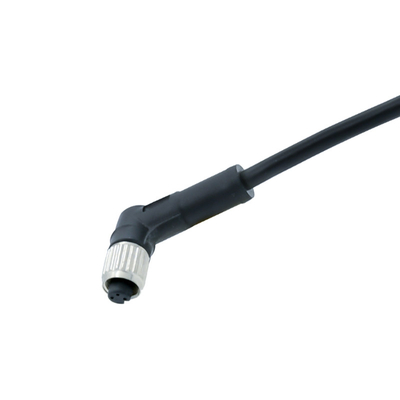

IP68 Waterproof Cable Connector Male To Female M5 M8 M12 M16 Molding Cable 1

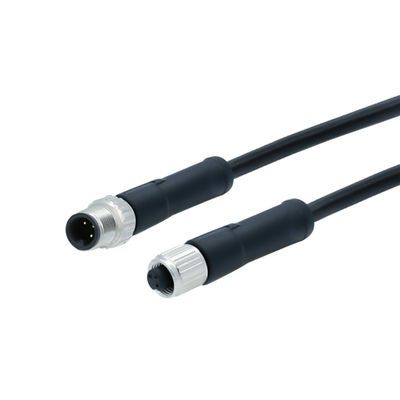

IP68 Waterproof Cable Connector Male To Female M5 M8 M12 M16 Molding Cable 2
IP68 Waterproof Cable Connector Male To Female M5 M8 M12 M16 Molding Cable 3
IP68 Waterproof Cable Connector Male To Female M5 M8 M12 M16 Molding Cable 4
IP68 Waterproof Cable Connector Male To Female M5 M8 M12 M16 Molding Cable 5
IP68 Waterproof Cable Connector Male To Female M5 M8 M12 M16 Molding Cable 6
