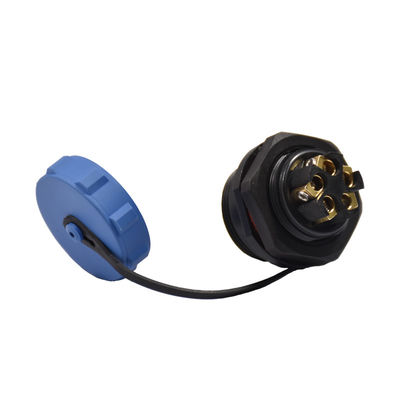

Nylon PA66 SP1312 Waterproof Panel Mount Connector IP68 250V 9 Pin Connector
100
MOQ
Price negotiations
Price
Nylon PA66 SP1312 Waterproof Panel Mount Connector IP68 250V 9 Pin Connector
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Shen zhen,China
Brand Name: RIGOAL
Certification: CE,ROHS,ISO
Model Number: sp13 waterproof connector
High Light:

SP1312 Waterproof Panel Mount Connector

,

Nylon PA66 Waterproof Panel Mount Connector

,

IP68 250V 9 Pin Connector

Payment & Shipping Terms
Packaging Details: 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.
Delivery Time: 7~14
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000
Specifications
Poles: 2pin 3pin 4pin 5pin 6pin 7pin 8pin 9pin
Rated Current: 3A,5A,13A
Rate Voltage: 250V
IP Rating: IP68
Tempereture Range: -25°C~+85°C
Test Voltage(AC.V) 1 Min: 1500
Contact Resistance (mΩ ): 2.5
Shell Materials: Nylon PA66,fire Resistance V-0
Type: Solder Type
Product Description

IP68 SP1312 Male Waterproof Panel Mount 2pin 3pin 4pin 5pin 6pin 7pin 9pin Connector



Product Description
Nylon PA66 SP1312 Waterproof Panel Mount Connector IP68 250V 9 Pin Connector 0
Nylon PA66 SP1312 Waterproof Panel Mount Connector IP68 250V 9 Pin Connector 1
The SP13 SP17 SP21 and SP29 connectors are all IP68 connectors, threaded coupling. SP13 is the smallest plastic shell IP68 waterproof
connector, this miniature connector is one of our most popular outdoor watertight connector.


The connectors can be used for both cable to cable (in-line) or cable to panel-mount connections. Each side can be male or female
contact.(Plug or socket versions), The IP68 sealing caps are available on both cable connector and panel connector.
.
Nylon PA66 SP1312 Waterproof Panel Mount Connector IP68 250V 9 Pin Connector 2
Nylon PA66 SP1312 Waterproof Panel Mount Connector IP68 250V 9 Pin Connector 3
Specification
item
value
Place of Origin
China

Guangdong
Brand Name
RIGOAL
Model Number
SP1312
Type
ADAPTER
Application
Automotive
Gender
Female
Poles
2pin 3pin 4pin 5pin 6pin 7pin 8pin 9pin
Rated Current
3A,5A,13A
Rate Voltage
250V
IP rating
IP68
Tempereture range
-25°C~+85°C
Test voltage(AC.V) 1 min
1500
Contact resistance (mΩ )
2.5
Shell materials
Nylon PA66,fire resistance V-0
Type
Solder type
Packing & Delivery
Nylon PA66 SP1312 Waterproof Panel Mount Connector IP68 250V 9 Pin Connector 4
Nylon PA66 SP1312 Waterproof Panel Mount Connector IP68 250V 9 Pin Connector 5
1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.
