IP68 Waterproof Power Connector SP13 SP21 SP17 9 Pin Plug Connector
1000
MOQ
receive bargaining
Price
IP68 Waterproof Power Connector SP13 SP21 SP17 9 Pin Plug Connector
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China ShenZhen
Brand Name: Rigoal
Certification: CE , ROSH , IP68
Model Number: assembly type
High Light:

Waterproof Power Connector SP13

,

SP17 IP68 Waterproof Power Connector

,

Waterproof Circular 9 pin plug connector

Payment & Shipping Terms
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000
Specifications
Place Of Origin: Guangdong, China
Model Number: SP13
Application: Automotive, Automotive, Sensor,Automotion
Contact Material: Brass With Gold Plated
Termination: Screw/solder/crimp
Operate Temperature: -25℃~+85℃
Brand Name: Rigoal Connector(RG)
Type: SP13 Circular Connector
Gender: Female
Standard: CE,RoHS
Product Description
Specification
item
value
Place of Origin
China

Guangdong
Brand Name
Rigoal connector(RG)
Model Number
SP21
Type
SP21 Circular connector
Application
Automotive
Gender
Male
Pins
5P
Number of Cores
Five Core
Product name
SP13 SP21 SP17 electrical terminal solar 9 pin plug connector
Application
Automotive, Sensor,Automotion
Insert material
PPS max temperature 260℃,fire resistance:V-0
Contact material
Brass with gold plated
Overmold material
Nylon66
Termination
Screw/solder/crimp
Number of pole
2,3,4,5,5B,5C,7,9 poles
Operate temperature
-25℃~+85℃
Degree of protect
IP68 rating
Standard
CE,RoHS
Product Description
The SP13, SP17 and SP21 connectors are all IP68 connectors, threaded coupling. SP13 is the smallest plastic shell IP68 waterproof
connector, this miniature connector is one of our most popular outdoor watertight connector.

The connectors can be used for both cable to cable (in-line) or cable to panel-mount connections. Each side can be male or female
contact, (Plug or socket versions), the IP68 sealing caps are available on both cable connector and panel connector.

1) shell diameter (the panel hole cutout diameter): 13mm
2) number of contacts: 2 -9 gold plated contacts
3) rated current and V : 13A-3A , 250V-125V
4) cable outer diameter acceptance: type I: 4-6.5mm, type II: 5-8mm
5) CE, ROHS approval
IP68 Waterproof Power Connector SP13 SP21 SP17 9 Pin Plug Connector 0
IP68 Waterproof Plastic Connector.It has two connection modes of the solder type and thread type.It's very easy and simple to
operating,small bulk,light weight complete specification.It is applicable for the connection of the small-size sebsir,the
electronic equipments,cable can have free blind insertion .morever its features has good flexibility anti-vibration
resistant,waterproof ect.It resists the salt mist and electro-magnetic disturbance.it have 2-12Poles for customer to option
according defferent specific requirements.

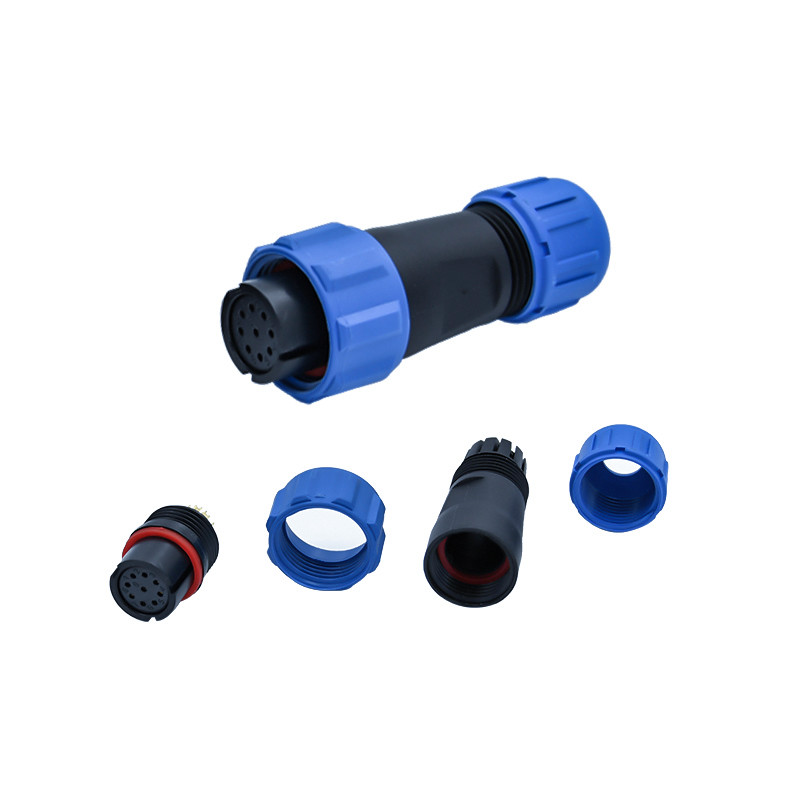

IP68 Waterproof Power Connector SP13 SP21 SP17 9 Pin Plug Connector 1

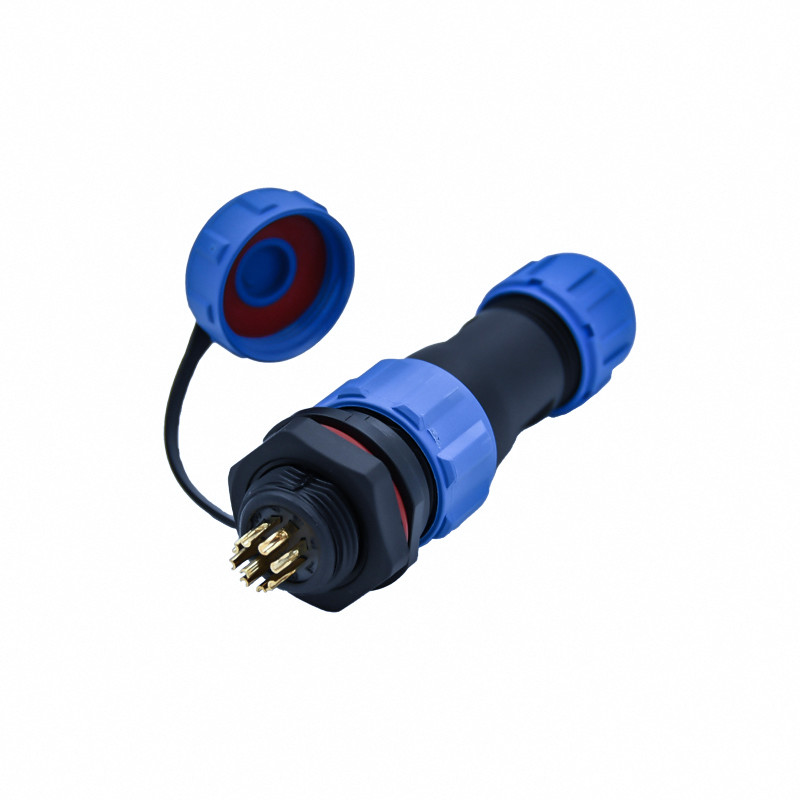

IP68 Waterproof Power Connector SP13 SP21 SP17 9 Pin Plug Connector 2

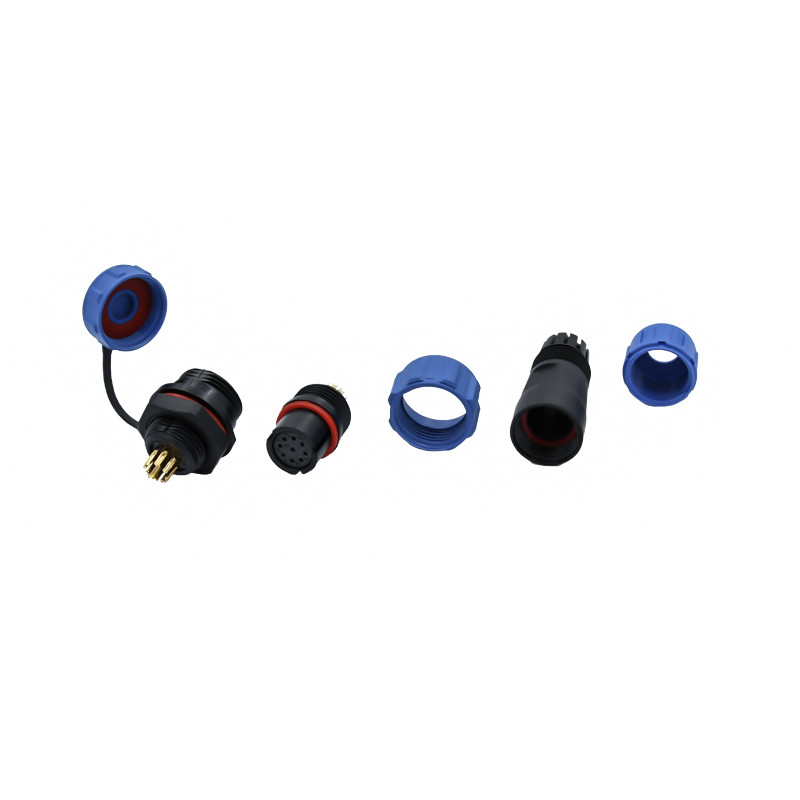

IP68 Waterproof Power Connector SP13 SP21 SP17 9 Pin Plug Connector 3

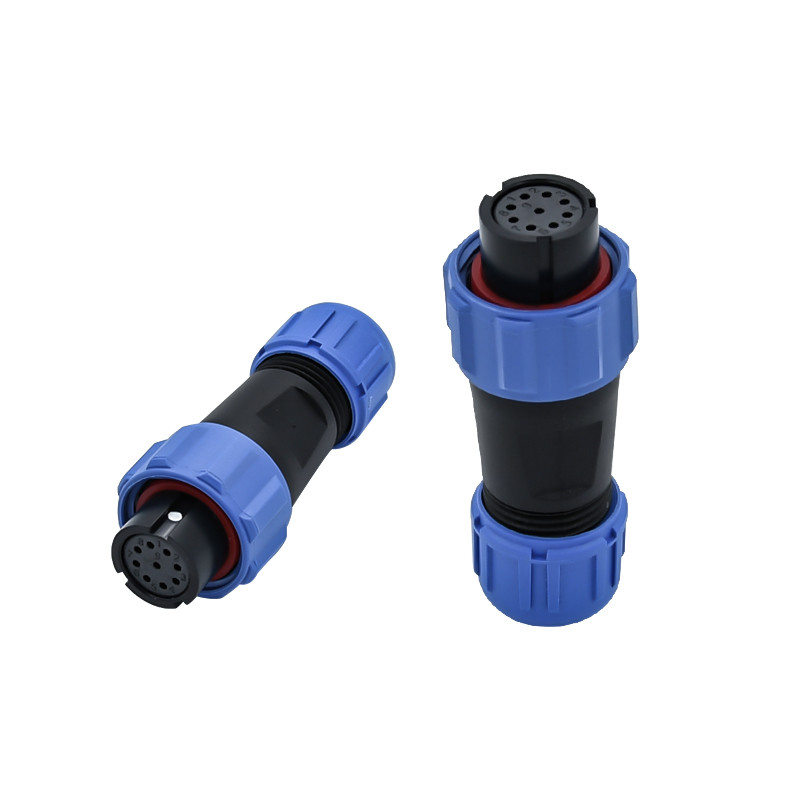

IP68 Waterproof Power Connector SP13 SP21 SP17 9 Pin Plug Connector 4
IP68 Waterproof Power Connector SP13 SP21 SP17 9 Pin Plug Connector 5
IP68 Waterproof Power Connector SP13 SP21 SP17 9 Pin Plug Connector 6
