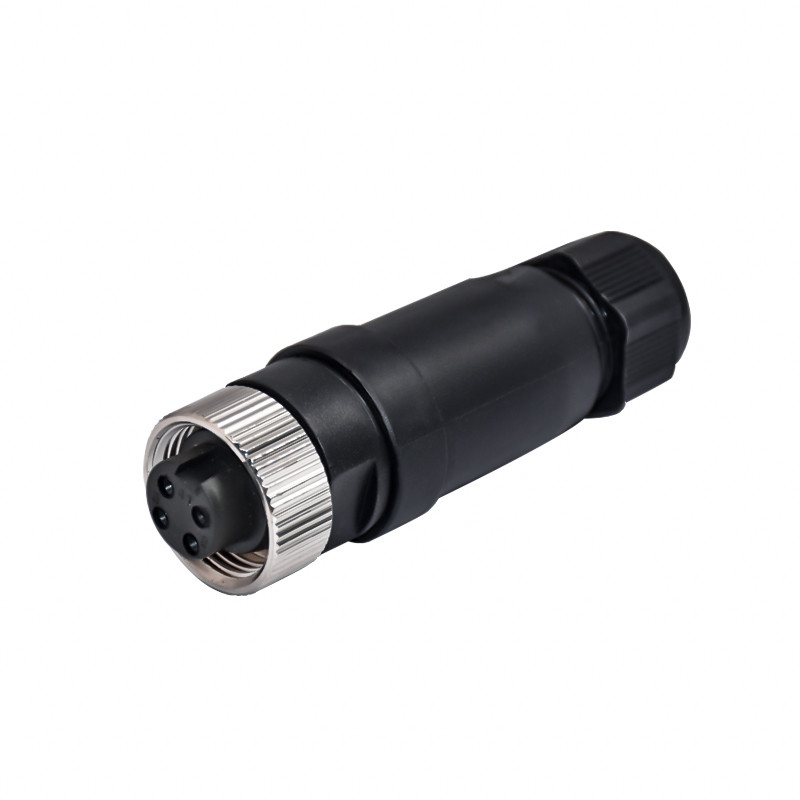

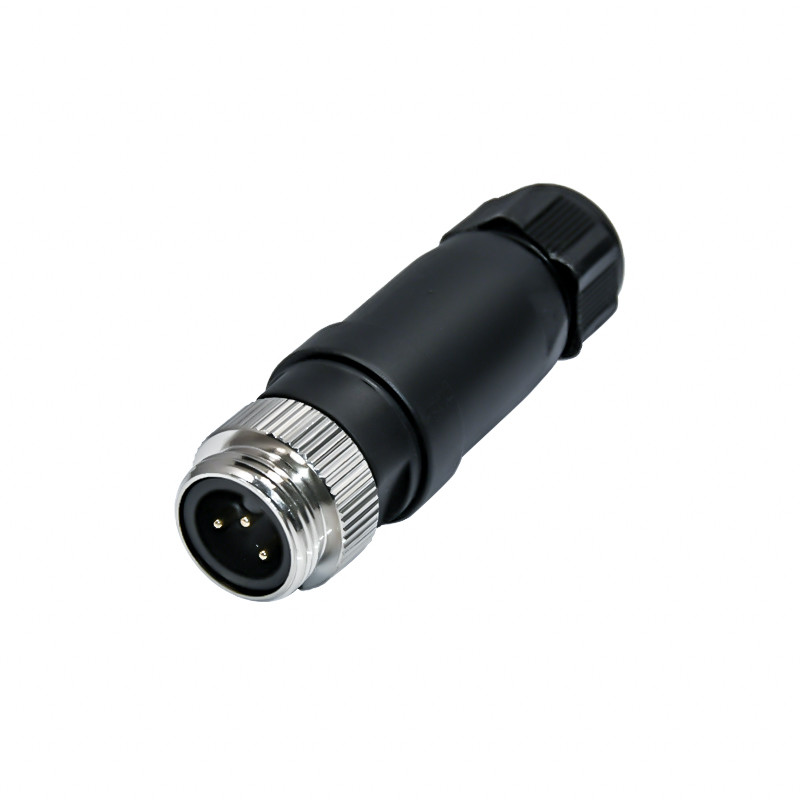

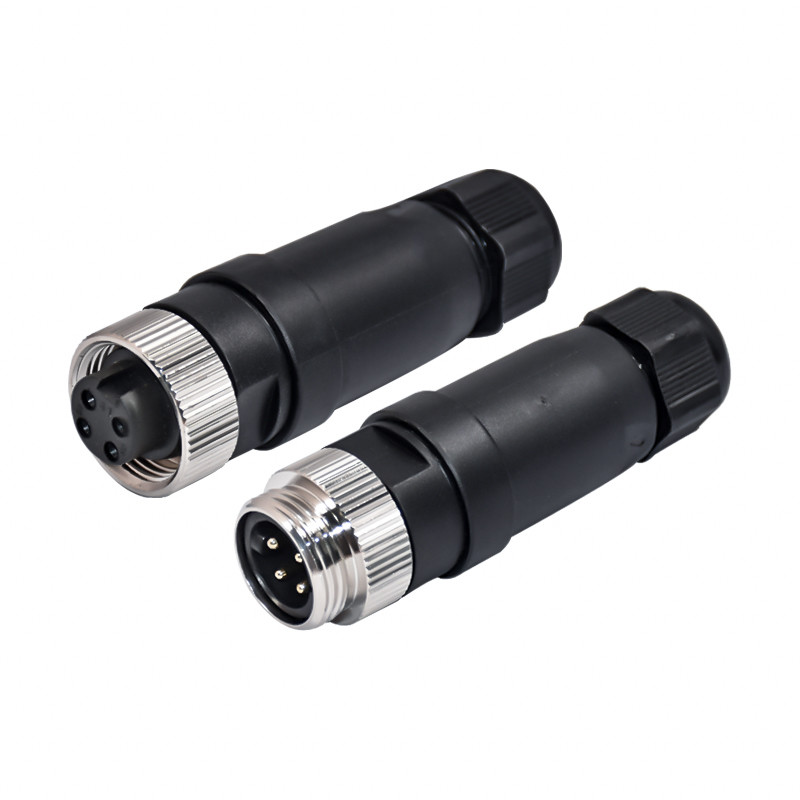

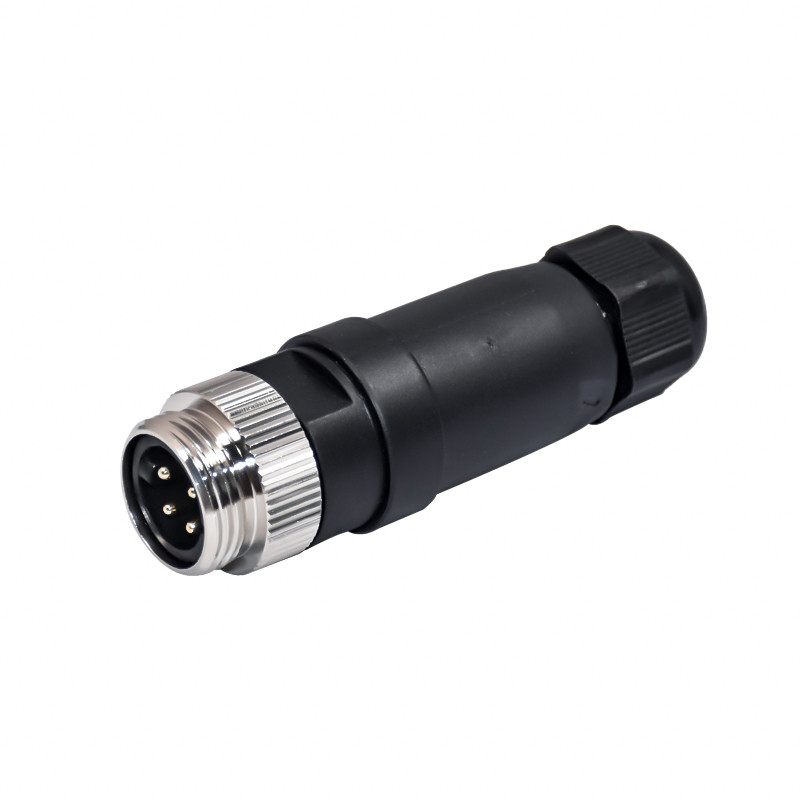

IP68 Female Male Waterproof Wire Connector 2 - 17 Pin Assembly
100
MOQ
negotiable
Price
IP68 Female Male Waterproof Wire Connector 2 - 17 Pin Assembly
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China ShenZhen
Brand Name: Rigoal
Certification: CE ， Rohs , IP68
Model Number: assembly type
High Light:

Transparent TPU Waterproof Wire Connector

,

Straight TPU Waterproof Wire Connector

,

FKM waterproof Cable Connectors
Payment & Shipping Terms
Packaging Details: 46x30x30
Delivery Time: 30work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000
Specifications
Model Number: 7/8 Connector
Application: Power,LED,Electrical Equipment
Product Name: Electrical Connector
Overmold: Transparent TPU
Insert: TPU+GF
Contact Resistance: ≤5mΩ
Brand Name: Rigoal Connector
Polarity: 3pins, 4pins,5pins,6pins,8pins
Contacts: Brass With Gold Plated
Insulation Resistance: ≥100MΩ
Product Description

7/8 panel mount waterproof connector

Specification

Item value
Place of Origin Shen zhen,China
Brand Name RIGOAL
Model Number 7/8 assembly waterproof connector
Application Automotive
Gender female
Pins 4p, 5P, 3P
Application: Power, Automotive
Gender: Female
Coupling nut/screw Brass with nickel plated
Ambient temperature: -25℃~+80℃
Termination Method: Screw
Current Rating: 9A
Body Orientation Straight
IP rating IP 67/IP68
Application Telecommunication
Certificate CE ROHS ISO9001
image001(001)

Available Description:

Stainless steel screw is available
IP67/IP68, RoHS, certificate
Generally Description:
Connector Series: 7/8
Coding: A
Pins: 3 / 4 / 5pins
Gender:Male&Female
Connector Design: Panel mount
Connector Locking System: Fix screw
Waterproof Rating: IP65/IP67
Ambient Temperature: -25°C~+85°C

Material:

Connector Body: PA66+GF
Contacts: Phosphorus copper with gold plated
Screw/Nut: Brass with nickel plated
Waterproof 0-ring: FKM
Glue: Black epoxy resin
Wire Jacket: PVC
Electrical data:
Rated Current: 9A
Rated Voltage: 250V
Contact Resistance: ≤10mΩ
Insulation Resistance: ≥100MΩ
Product paramete

 image003(001)



Certifications




Package&Shipping:

1. Generay Package :Each pcs put in one samll waterproof PE bag,then put in a carton Details: Add the label, about 200 hundred pieces connector put in one carton, Carton size:40*30*30cm

2. OEM/ODM package is available

3. According to customer choice.

image022_


Tag:

UCU Waterproof Plastic Connector

7pins Waterproof Plastic Connector

IP68 Circular Panel Mount Connector
