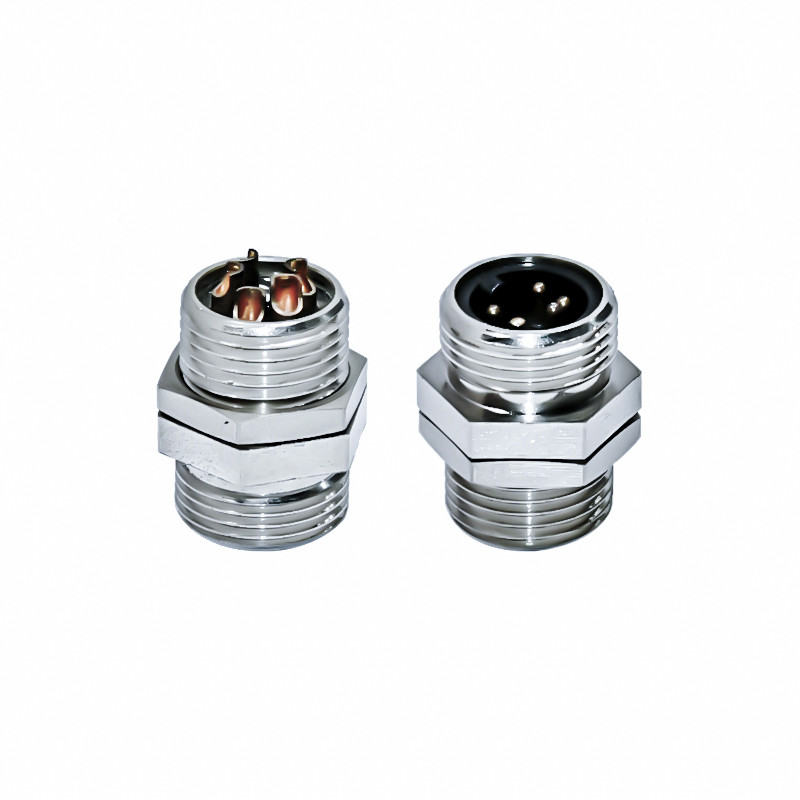

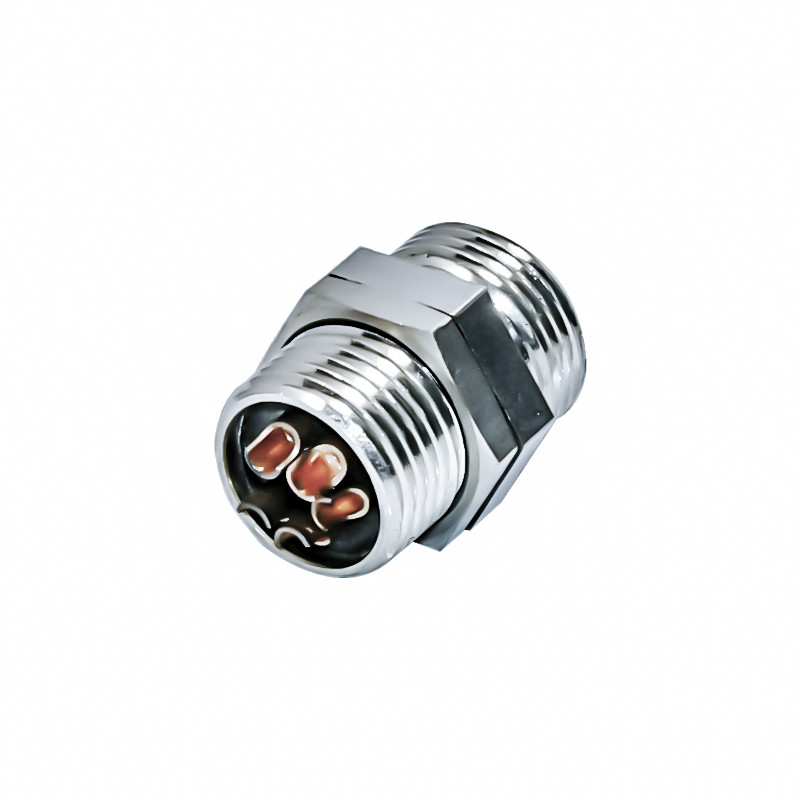

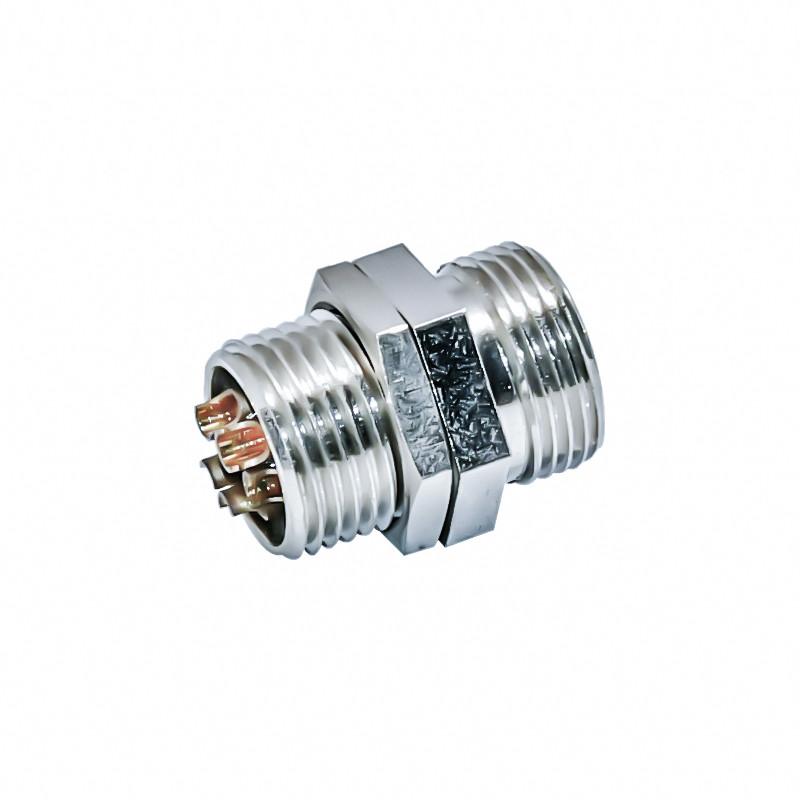

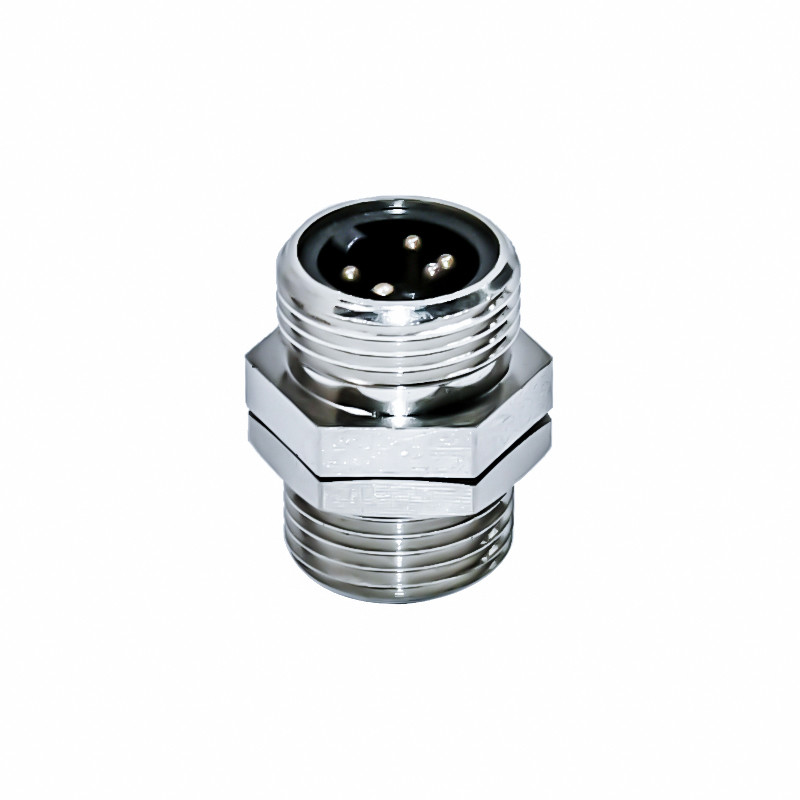

Circular 7/8 Panel Mount Waterproof Connector Screw Locking PA Insert Material
100
MOQ
receive bargaining
Price
Circular 7/8 Panel Mount Waterproof Connector Screw Locking PA Insert Material
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China ShenZhen
Brand Name: Rigoal
Certification: CE , ROSH , IP68
Model Number: Panel mounting
High Light:

7/8 Panel Mount Waterproof Connector

,

PA Panel Mount Waterproof Connector

,

Waterproof Panel Mount Connector PA Insert

Payment & Shipping Terms
Packaging Details: 46x30x30
Delivery Time: 30work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000
Specifications
Model Number: 7/8 Panel Mounting Waterproof Connector
Application: Power, Automotive
Coupling Nut/screw: Brass With Nickel Plated
Termination Method: Screw
IP Rating: IP67/IP68
Brand Name: RIGOAL
Ambient Temperature: -25℃~+80℃
Current Rating: 9A
Body Orientation: Straight
Product Description

7/8 panel mount waterproof connector

7/8" circular connectors

-Screw locking 7/8" -Pre-molded with cables or soldered with single wires for immediate use

-Sealed on the single wire side for optimum leak-tightness

-Panel mount receptacles: rear/front mount

-Versions with 3(2+PE), 4(3+PE), 5(4+PE) pins

-Solder/ dip-solder PCB connection

-Degree of protection IP67

-Customer specific assemblies and single wire lengths available


Production datesheet

7/8 catagroy: 7/8'' molded type and panel mount connector
Connector Series: 7/8 inch mini-change connector
Gender: Male and Female
Locking Type: Fix Screw
Mounting Type: Angled and Straight
CONTACTS NUMBER: 3pin, 4pin, 5pin, 8pin
Operate Temp. : -25℃ ~ +85℃
Insert Material : PA
Contact Material : Brass Gold Plated
Nut / Screw : Brass Nickel Plated
IP Rating : IP67 in Locked
Seal / O-ring : Epoxy Resin / FKM
Insulation Res. : ≥ 100 MΩ
Contact Res. : ≤ 5 mΩ
Shielding : available



7/8 inch Male Female Assembly Cable Plug

Supply straight male and female type connectors for free assembly with solder terminal connection.



Advantages:

1. High degree of protection IP67, safe to use on site

2. High quality gold-plated solid phosphor bronze contacts, ≥ 600 times mating life

3. Anti-vibration locking screw design

4. Support samples, retail and bulk orders

image005(001)

Rated temperature:-25°C ~ + 80°C
Insulation resistance:≥100 MΩ
Contact resistance:≤5mΩ
Impulse voltage:2500V
O-ring:FKM/Silicon
Pollution degree:3

Wire length:0.25m

image001(001) image003(001)

Certifications




Package&Shipping:

Packaging

1. Generay Package :Each pcs put in one samll waterproof PE bag,then put in a carton

Details: Add the label, about 200 hundred pieces connector put in one carton, Carton size:46*30*30cm

2. OEM/ODM package is avaiable

3. According to customer choice.



Shipping

We can according to customer request choose different ship way,which more converence ,which we will choose!
