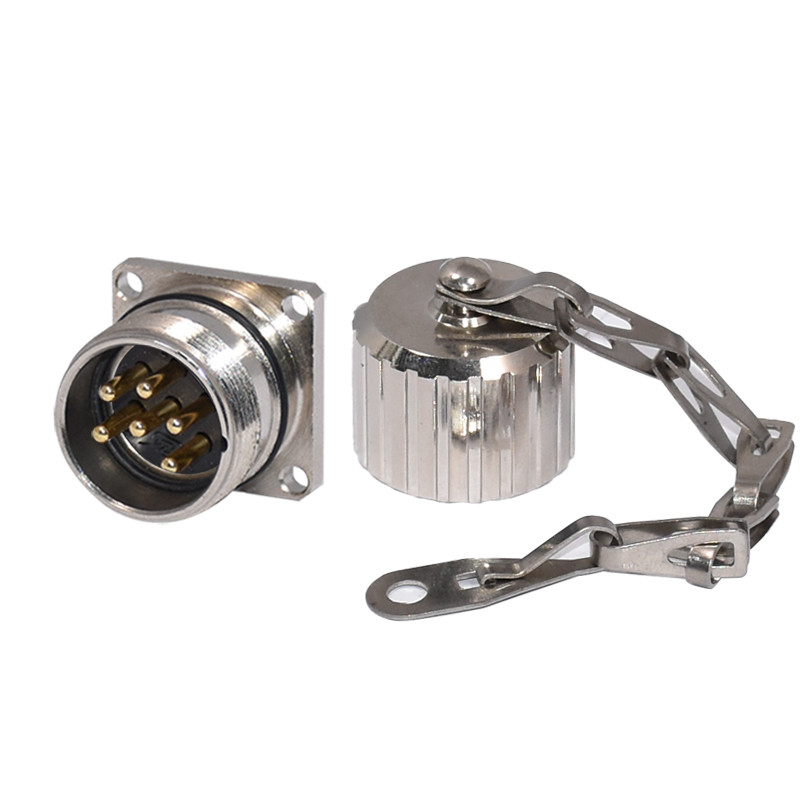

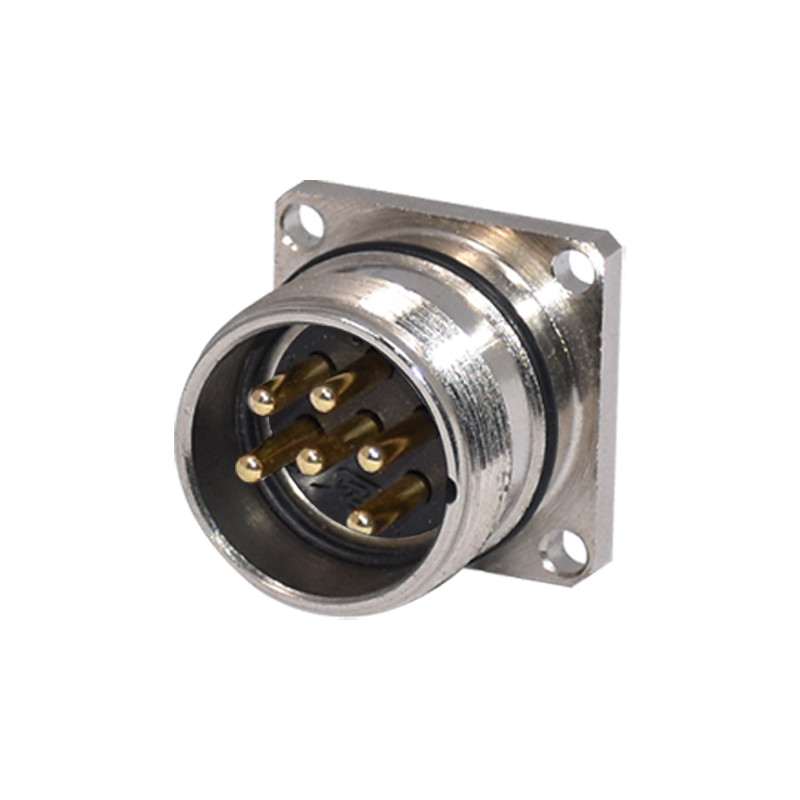

M23 Connector Male 6pins Square Flange Panel Mount Waterproof Shielded Connector
Product description
M23 Connection Systems feature industry standard 12- and 19-pin connectors for robust connections in high pin-density applications.
the modular concept ensures a huge variety of variants.
Use our M23 connection devices with safety switches or for transferring a bundle of discrete signals from a distribution box or controller.
We offer cordsets and patchcords, solder field-attachable connectors, and panel mount receptacles.
Available in male and female versions, these 4- and 5-pin models allow for easy assembly of custom cables on the plant floor.
General Details
Contacts: 6pins
Gender: male
Coupling: Threaded coupling
Termination: solder
Mating cycle:500times
Cable temperature: -25℃~+85℃
Cable diameter:≤Φ6mm~≤Φ8.5mm
Solder inter diameter:1mm~2.5mm
Insulation resistance DC50±10%
Contact resistance(mΩ): 10mΩ at 10mA Max
Material
Material of contact: Brass, gold plated
Contact plating:Au(Gold)
Material of contact body:PA
Connector locking system:Screw
Material of housing:CuZn(Brass nickel plated)
| Connector type | M23 panel mount connector |
| Connector Gender | male |
| Contacts | 6pins |
| Connector locking system | solder |
| Rated current | 20A |
| Rated Voltage |
300v |
| Coupling nut material | Nickel-plated brass |
| Cable diameter | 10…14 mm (0.39…0.55 in.) |
| Enclosure type rating | IP65 |
| Operating temperature | -20…+105 °C (-4…+221 °F) |
Number of Contacts
Product photos
FAQ
A1: We are manufacture, we can provide one-stop station service for connectors and cables with factory price.
Q2: How about your quality?
