8P M16 Circular Connector Waterproof Front Panel Mount Shielded Solder Connector
100pcs
MOQ
$3.5/pc
Price
8P M16 Circular Connector Waterproof Front Panel Mount Shielded Solder Connector
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Rigoal
Certification: CE ,TUV, RoSH
Model Number: m16 panel mount connector
High Light:

8P M16 Circular Connector

,

Panel Mount M16 Circular Connector

,

8P M16 Waterproof Connector

Payment & Shipping Terms
Packaging Details: PE bag and Cartons
Delivery Time: 10-15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Specifications
Poles: 8Pins
Termination: Solder
Connector Gender: Male
Rated Current: 5A
Rated Impulse Voltage: 500V
Rated Voltage: 60V
Contact Resistance: ≤ 5 Ohm/≤ 3 Ohm Or ≤ 3 Ohm
Contact Plating: Au
Wire Gauge: Max. 0,75 Mm2 (max. AWG 20)
Protection Level: IP67
Product Description

M16 Circular Connector Waterproof 8 Pins Front Panel Mount Shielded Solder Connector



Product description

2 3 4 5 6 7 8 12 14 19 24Pins Female Male M16 Front Screw Back Panel Mount Socket Connector, waterproof is IP67/68

Panel mount, assembly connector are avaliable, also can customized based on customer's requirements.

We guaranteed that 100% in good quality, the price will be reasonal

Special feature and service can be provided upon requirement.

it is usually widely used on all kinds of outdoor applications, specially for the signal transmission, Medical Equipment,Audio / Video, Test and Measurement, Communications product line.



♦ 3, 4, 5, 6, 8 & 12 Poles

♦ Solder Termination

♦ Front Panel Mount M16

♦ Mates with Flex Body Connectors



Material details

Gender: male

Contacts: 8pins

Material ot contact: CuZn

Contact plating: Au (Gold/gold)

Material of contact body: PBT (UL 94 V-0)

Material of housing: CuZn (brass, nickel plated)

Pollution degree: 1(2)²

Overvoltage categorie: l(II)²

Material group: lll

Upper temperature: + 85 °C

Lower temperature:  – 40 °C



Gender Femal or Male
Cable outlet 4–6 mm (PG 7)/6–8 mm (PG 9)
Wire gauge max. 0,75 mm2 / max. 0,25 mm2 / 0,14 mm2
Rated voltage 60 V
Rated impulse voltage 500 V
Rated current (40 °C) 5 A
Contact resistance ≤ 5 ohm/≤ 3 ohm or ≤ 3 ohm
Contact plating Ag Au (Gold/gold)



Product Photos

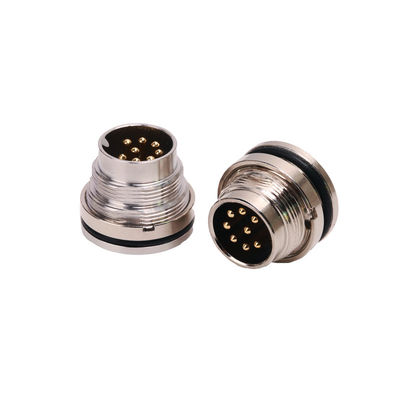

8P M16 Circular Connector Waterproof Front Panel Mount Shielded Solder Connector 08P M16 Circular Connector Waterproof Front Panel Mount Shielded Solder Connector 1



FAQ



Q1: Why choose us?

A: 100% homemade, competitive price and fast delivery

Strictly quality control, connectors certified by CE/ROHS.



Q2: How can I get a connector’s sample?

Sample in stock is free; you just need to pay shipping cost.



Q3: How long is your delivery time?

A: Sample is 1-3 work days; Mass is 5-15 work days.



Q4. What kind of connectors you could supply?

A: M8, M12, M16, M23, Industrial waterproof connector, weipu connector, solenoid valve connector etc, also can customized based on customer's requirements as long as tell us your demand



Q5: What are the payment methods?

A: T/T, PayPal, Western Union, Ali trade assurance.



Q6: Is it OK to print my Logo on the product?

A: Yes, OEM/ODM service is available.



Q7: How to deliver the goods?
A: DHL, UPS, TNT, FedEx, Aramex, Postal parcel and forwarder are acceptable.
