Rigoal 3 Pin Male And Female Connectors M19 Molded 20A IP67
100pcs
MOQ
Negotiable
Price
Rigoal 3 Pin Male And Female Connectors M19 Molded 20A IP67
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Rigoal
Certification: CE,RoHS
Model Number: M19 connector
High Light:

Rigoal Three Pin Male Female Connector

,

Rigoal 3 Pin Male And Female Connectors

,

M19 Connector

Payment & Shipping Terms
Packaging Details: PE bag and Cartons
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Specifications
Brand Name: Rigoal
Connector: M19
Connector Gender: Female Male
Contact Pin: 3 Pin Wire To Wire
Color: Black
Current Rating: 20A
Contact Material: Gold Plated Brass
Protectiong Level: IP67
Connecting Model: Screw Locking
Feature: Vibration Resistance
Product Description

Waterproof Cable Connector M19 Molded 20A Connectors Male Female 3 Pin Connectors





Product description

  • Rated current: 20A/10rms.
  • 2-4PIN power supply, 5-9PIN signal is optional.
  • IP67/68 rating
  • Voltage rating: 300V
  • Cable Range: 3~11mm
  • UL, TUV, CB, CCC, CE, RoHS approved



Electrical data

Model number: M19

Connector Body: Nylon(PA 66)+GF UL94V-0 1/16"

Sealing: Silica Gel

Contact: Brass with gold plated

Mating style: Quick lock

Temperature Rating: -40°C~+105°C

Current rating:20A

Voltage rating: 300V

Waterproof Rating: IP67

Contact resistance: <=20mΩ

Insulation resistance: 1000MΩ at DC500V

Breakdown voltage: 1.5KV/1 minute

Pins range: 2/3/4/5/6/7/8/9/10/12/14/18 pin.


Material

Voltage Rating 300VAC max
Current Rating 20A max
Min Wire Size OD 3.0mm ~ 6.5mm
Max Wire Size OD 6.5mm ~ 10mm
Max.Cable Cross Section Area 0.3mm2 ~ 2.5mm2


Rigoal 3 Pin Male And Female Connectors M19 Molded 20A IP67 0

Rigoal 3 Pin Male And Female Connectors M19 Molded 20A IP67 1Rigoal 3 Pin Male And Female Connectors M19 Molded 20A IP67 2Rigoal 3 Pin Male And Female Connectors M19 Molded 20A IP67 3Rigoal 3 Pin Male And Female Connectors M19 Molded 20A IP67 4

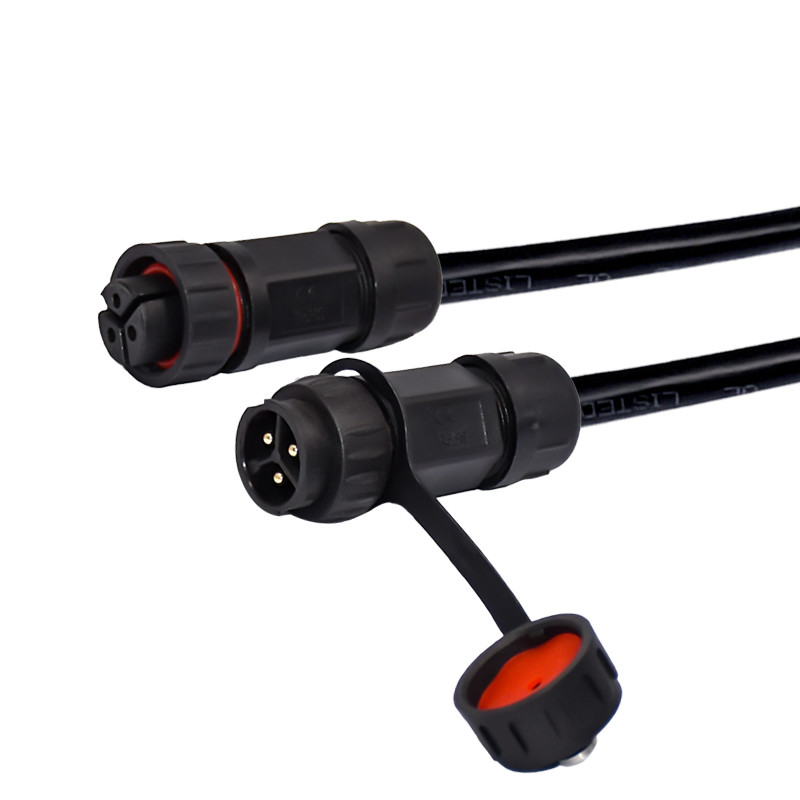

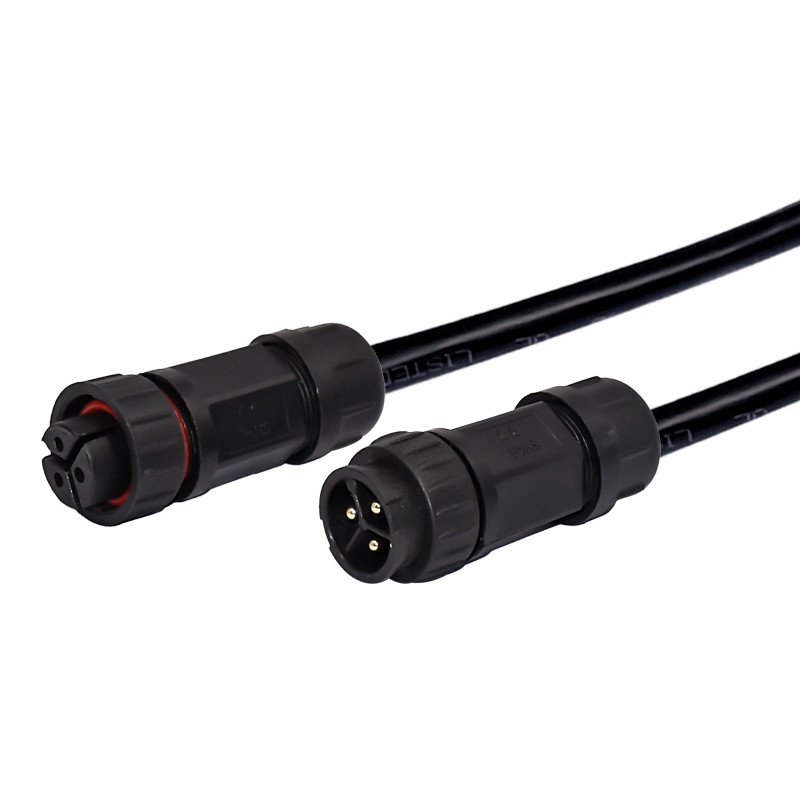

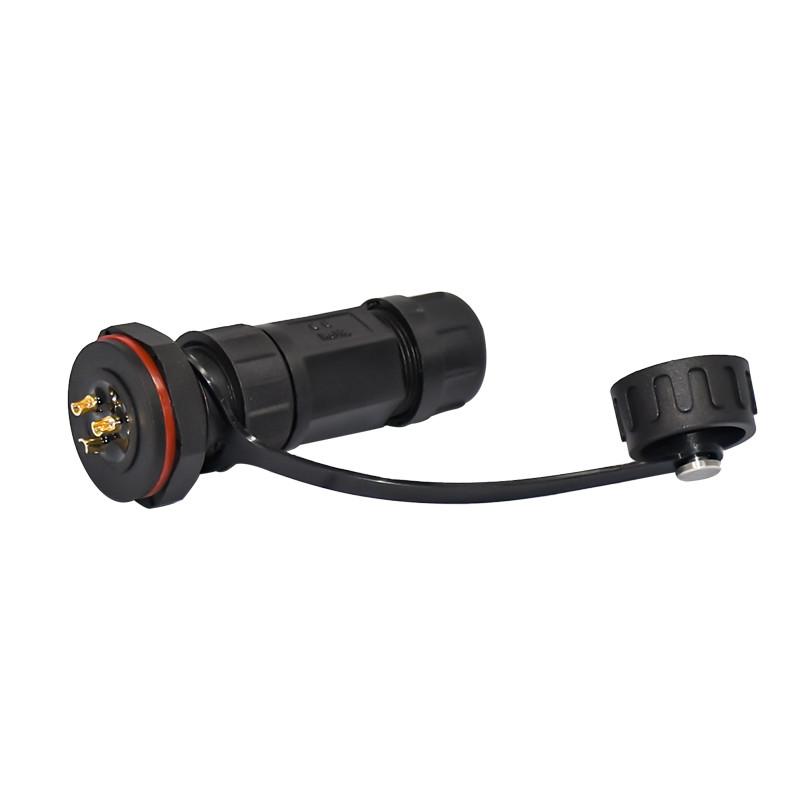

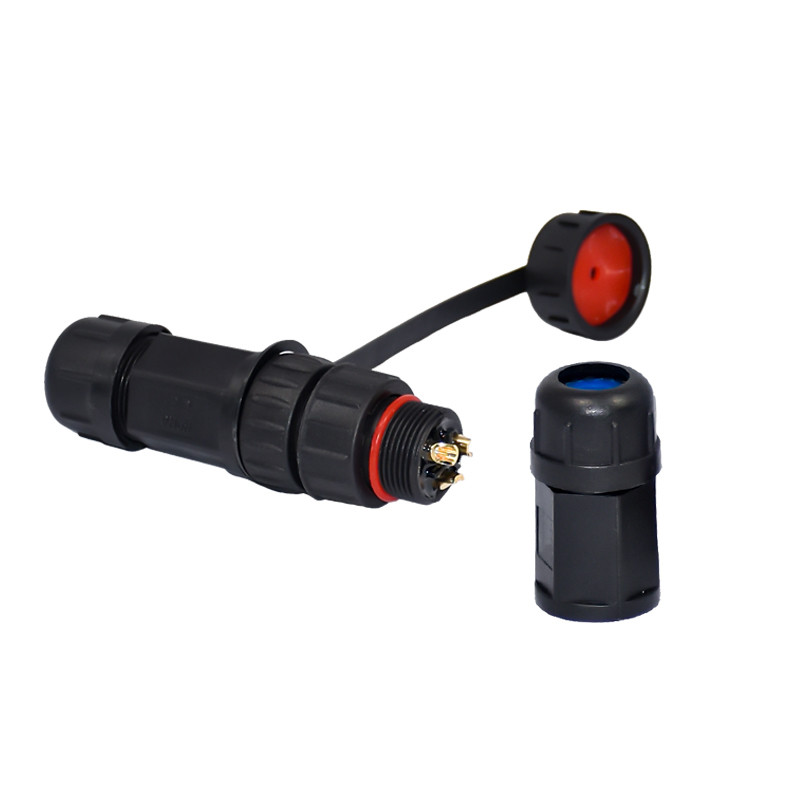

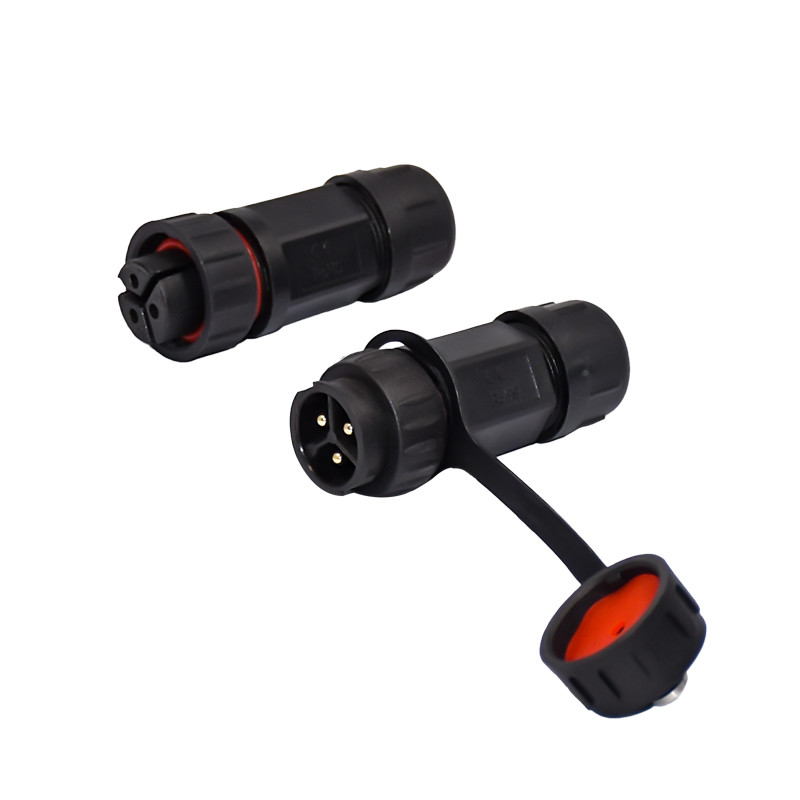

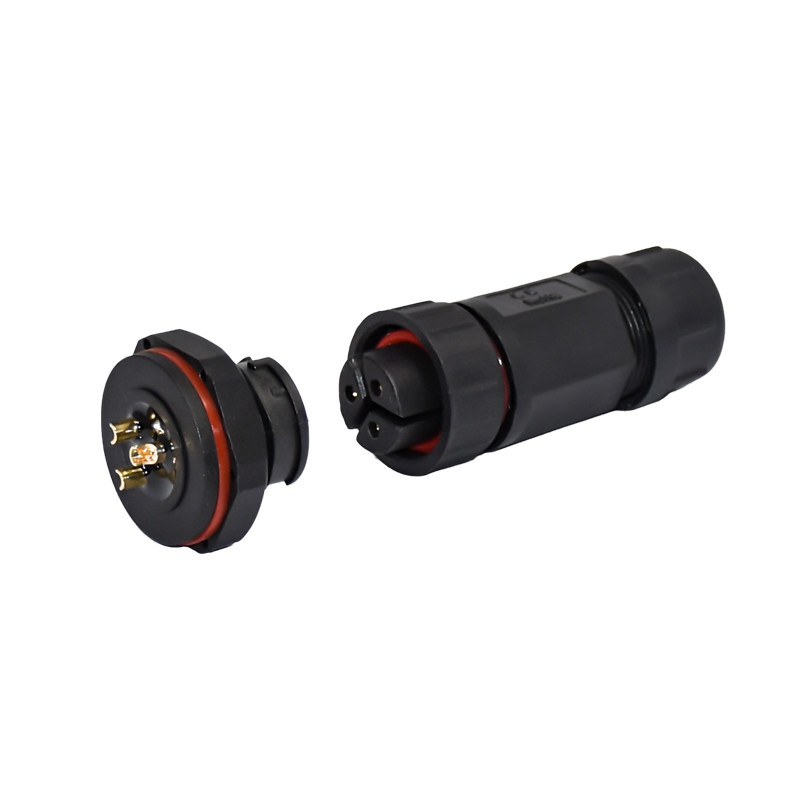

Product photos

Rigoal 3 Pin Male And Female Connectors M19 Molded 20A IP67 5Rigoal 3 Pin Male And Female Connectors M19 Molded 20A IP67 6Rigoal 3 Pin Male And Female Connectors M19 Molded 20A IP67 7Rigoal 3 Pin Male And Female Connectors M19 Molded 20A IP67 8Rigoal 3 Pin Male And Female Connectors M19 Molded 20A IP67 9

We have 12series type connector,and make more than thousands of types waterproof connector cable.

Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,Industrial waterproof connectors, tell us your requirements,we can support you with very competitive price with high quality products.
