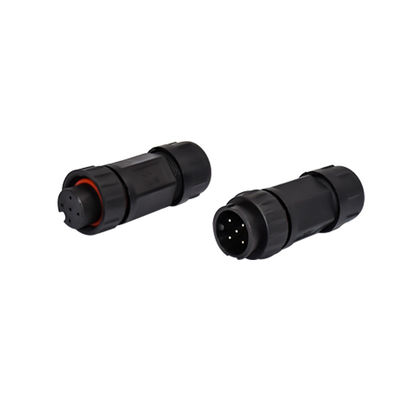

M19 5pins Waterproof Outdoor M19 600V 20A 5 Pin IP67 Electric Bicycle Connectors
Product description
Electrical data
Model number: M19
Gender: male and female
Mating style: Quick lock
Min Wire Size OD: 3.0mm ~ 6.5mm
Max Wire Size OD: 6.5mm ~ 10mm
Max.Cable Cross Section Area: 0.3mm2 ~ 2.5mm2
Current rating: 25A
Voltage rating: 600V
Contact resistance: <=20mΩ
General details
|
1 |
Model No. |
M19 waterproof 5 pin cable connector |
|
|
2 |
Material |
Connector Body |
Nylon(PA66)+GF UL94V-0 1/16'' |
|
3 |
Contact |
Brass with Gold Plated |
|
|
4 |
Sealing |
Silica Gel |
|
|
5 |
Property |
Current Rating |
25AMP |
|
6 |
Voltage Rating |
600V |
|
|
7 |
Contact Resistance |
<10mΩ |
|
|
8 |
Insulation Resistance |
1000MΩ at DC 500V |
|
|
9 |
Breakdown Voltage |
1.5KV/1minute |
|
|
10 |
Temperature Rating |
-45°C~+105°C |
|
|
11 |
Durability(Plug/Unplug) |
3000 times |
|
|
12 |
Waterproof Rating |
IP67 IP68 waterproof |
|
|
13 |
Cable Max. Diameter |
11mm(<=2.5mm2) |
|
|
14 |
Pins Range |
2, 3, 4, 5, 6, 7, 8,9,10,12,14,18 |
|
|
15 |
Certificate |
CE; RoHS |
|
