M23 6 Pole Male Shielded Right Angled Connector For Automtive Power
100
MOQ
Price negotiations
Price
M23 6 Pole Male Shielded Right Angled Connector For Automtive Power
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Shen zhen,China
Brand Name: RIGOAL
Certification: CE,ROHS
Model Number: 923
High Light:

30A 6P Right Angled Connector

,

M23 Male Right Angled Connector

,

M23 6P Right Angled Connector

Payment & Shipping Terms
Packaging Details: 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.
Delivery Time: 14
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000
Specifications
Model Number: 923
Application: Automotive, Power
Pins: 6pin
Ambient Temperature: -25℃~+125℃
Current Rating: 30A
Voltage Rating: 630 V Ac/Dc
Body Orientation: Angled
Housing Material: Copper Alloy, Zinc Alloy
Product Description

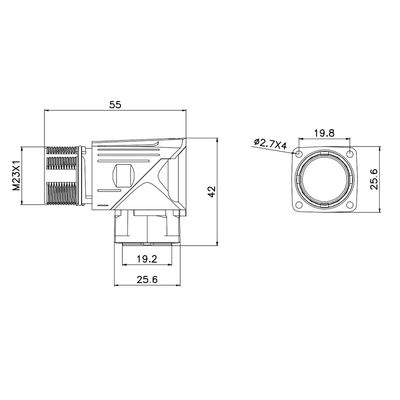

923 M23 6Pole Male Housing+Male Thread Signal Assembly Shielded Right Angled Connector For Automtive Power



M23 male female connector waterproof connector

1

Model No.

M23G-6H1-P

2

Material

Connector Body

Nylon(PA66)+GF UL94V-0 1/16'

3

Contact

Brass with Gold Plated

4

Sealing

Silica Gel

5

Property

Current Rating

30A

6

Voltage Rating

630V

7

Contact Resistance

<10mΩ

8

Insulation Resistance

10MΩ at DC 630V

9

Breakdown Voltage

1.5KV/1minute

10

Temperature Rating

-25°C~+125°C

11

Durability(Plug/Unplug)

3000 times

12

Waterproof Rating

IP67

13

Cable

7.0 mm

14

Pins Range

6---19Pole

15

Certificate

CCC; CE; ROSH



M23 6 Pole Male Shielded Right Angled Connector For Automtive Power 0M23 6 Pole Male Shielded Right Angled Connector For Automtive Power 1M23 6 Pole Male Shielded Right Angled Connector For Automtive Power 2M23 6 Pole Male Shielded Right Angled Connector For Automtive Power 3
