Rohs PUR Waterproof Circular Plastic Connector Ip68 M5 Female

10
MOQ
negotiable
Price
Rohs PUR Waterproof Circular Plastic Connector Ip68 M5 Female
Features Gallery Product Description Request A Quote
Features
Specifications
Description: M5 Straight Molded Waterproof Connector
Type: M5 Cable Connector
Rated Current: 1A
Over-molding: TPU
Contact: Phosphor Bronze
Protection Degree: IP67/ip68
Certificate: CE/Rohs/REACH
Jacket Material: PVC/PUR
High Light:

PUR Waterproof Circular Plastic Connector

,

Rohs Waterproof Circular Plastic Connector

,

M5 Female Plastic Cable Connector

Basic Infomation
Place of Origin: Shen zhen,China
Brand Name: RIGOAL
Certification: CE,ROHS,ISO
Model Number: m5 connector
Payment & Shipping Terms
Packaging Details: 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.
Delivery Time: 14
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000
Product Description

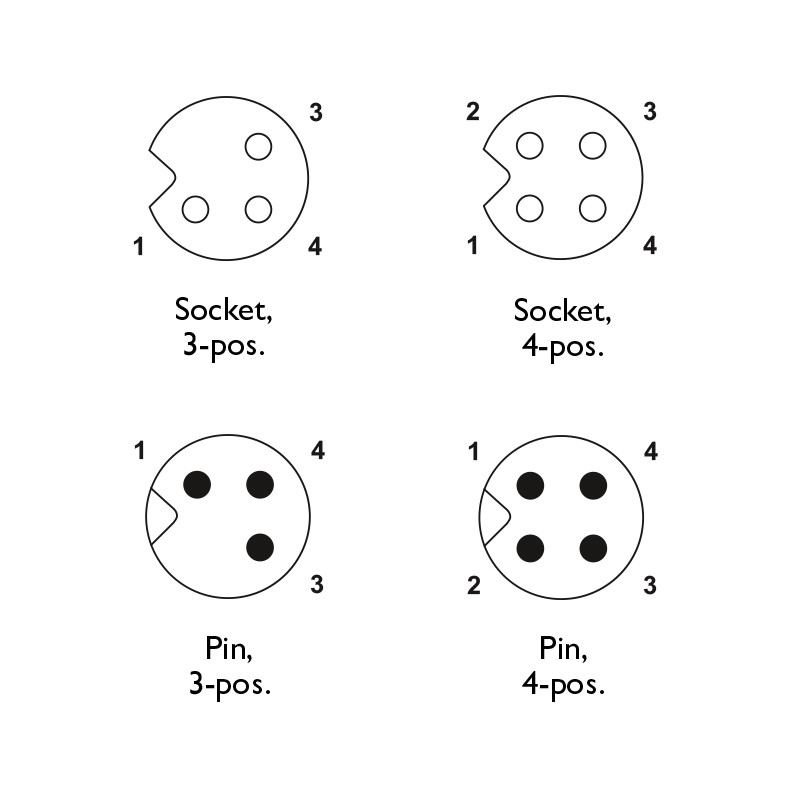

Ip68/67 M5 Female A Coding 3pin 4pin Waterproof Circular Plastic Connector Cable

Rohs PUR Waterproof Circular Plastic Connector Ip68 M5 Female 0Rohs PUR Waterproof Circular Plastic Connector Ip68 M5 Female 1


Rohs PUR Waterproof Circular Plastic Connector Ip68 M5 Female 2
Product Description
M5 electronic components for applications such as machine condition monitoring, thickness gages, video probe for remote
inspection and soil moisture sensors.
M5 connectors are available with 3 and 4 poles and are equipped with a threaded ring with an anti-vibration lock. The protection
class is IP67/IP68. The cable parts of M5 connector have overmoulded cables. The outer diameter is 6.5 mm. The rated voltage is 60
V, the max. current is 1
M5 electronic components for applications such as machine condition monitoring, thickness gages, video probe for remote
inspection and soil moisture sensors.
M5 connectors are available with 3 and 4 poles and are equipped with a threaded ring with an anti-vibration lock. The protection
class is IP67/IP68. The cable parts of M5 connector have overmoulded cables. The outer diameter is 6.5 mm. The rated voltage is 60
V, the max. current is 1 A. 0

Rohs PUR Waterproof Circular Plastic Connector Ip68 M5 Female 3



Product introduction
Product Name:
M8 connector 5pin 5pole B code female and male IP67 connector overmold M8 connector
model number:M8-A-PS


serIes:M8 Connector
Core number:3,4,5,6,8Core
Authentication:CE,RoHS
waterproof:IP67/IP68



Features of M5 connector :
1. Connector M5 x 0.5 with screw interlock
2. Connector over-moulded on cable
3. Threaded ring with vibration resistance
4. IP67 protection
5. 3 and 4 -pole designs
6. 2 m and 5 m cable length (PVC/PUR) Other cable lengths for quantities of 200 each or more are available upon request



FAQ
1. who are we?
We are based in Guangdong, China, start from 2014,sell to Western Europe(18.00%),North America(13.00%),Oceania(13.00%),South America(10.00%),Eastern Asia(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),Central America(5.00%),Mid East(3.00%),South Asia(3.00%),Eastern Europe(2.00%),Africa(2.00%),Southeast Asia(00.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Waterproof Connector,Waterproof Connector Cable

4. why should you buy from us not from other suppliers?
Rigoal Connector is mainly design and manufacture M8, M12, M16, M23, D-SUB/USB ect waterproof connector and cable. Mainly applied in sensors, industrial equipment, transportation facilities, medical devices, LED displays, outdoor advertisement etc.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,CPT,DDP,DDU;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
